Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

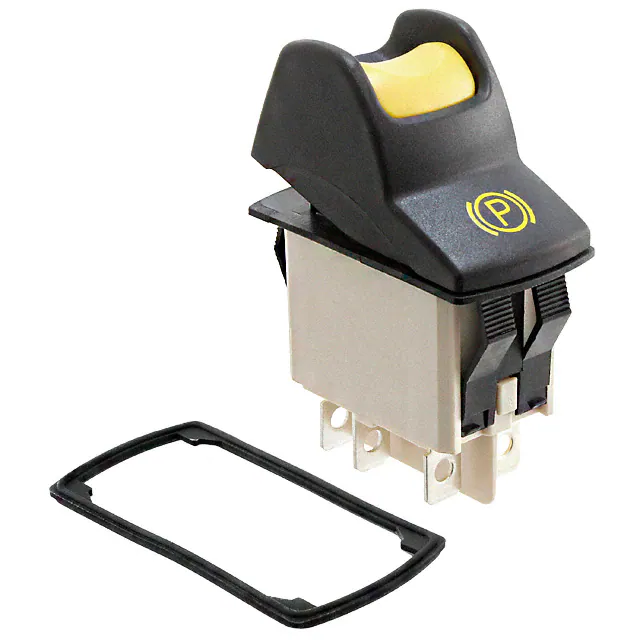

KL462AKXA125N01A65SWITCH ROCKER DPDT 10A 24V |
2,220 |
|
Datasheet | KL | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | ON - Parking Brake | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
FNRCM4FSS2N2X09XXXX10SWITCH ROCKER DP3T 1A 24V |
3,333 |
|
Datasheet | FNR | Tray | Obsolete | Panel Mount, Threaded Body with Nut | DP3T | Mom-On-Mom | 1A (DC) | - | 24 V | Concave (Curved) - Illuminated | Black | - | LED, White | 12 VDC | Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
|
TR36W00000012SWITCH ROCKER SPDT 0.4VA 20V |
1,606 |
|
Datasheet | TR | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
KG492A2XXA21XXSWITCH ROCKER DPDT 10A 12V |
2,634 |
|
Datasheet | KG | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -10°C ~ 65°C | - |
|
MR2110R5BBROCKER SWITCH MR PANEL MOUNT |
1,964 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
HB110C6NBBRSWITCH ROCKER SPST 20A 125V |
4,290 |
|
- |
HB | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | ON OFF, Horizontal | - | - | Quick Connect - 0.250" (6.3mm) | IP42 | Two-Tone Rocker | Rectangular - 28.60mm x 13.59mm | -20°C ~ 85°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|
|
MR210C4NBBROCKER SWITCH MR PANEL MOUNT |
4,552 |
|
- |
MR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.90mm | -20°C ~ 80°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|

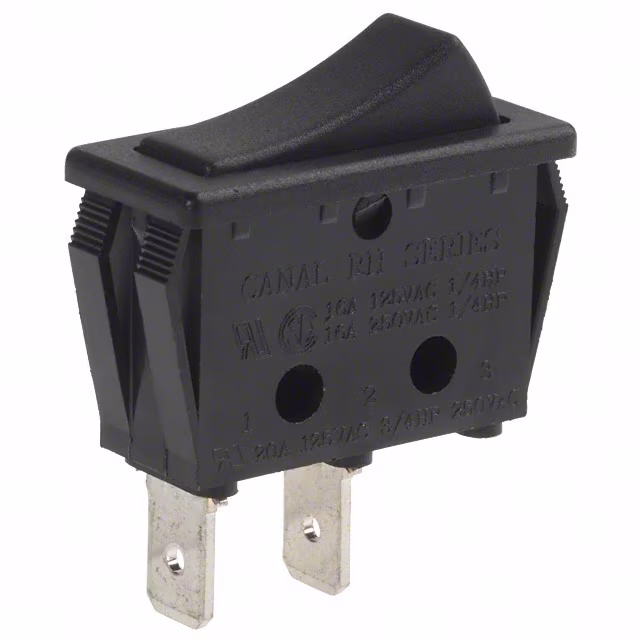

RH110C2NBBSWITCH ROCKER SPST 20A 125V |
4,396 |
|
- |
RH | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 85°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
|
|
HB110C3NWBNAROCKER SWITCH B PANEL MOUNT |
3,959 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
R2101C2NBRSWITCH ROCKER DPST 20A 125V |
1,702 |
|
- |
R | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 125°C | CSA, DEMKO, FEMCO, NEMKO, SEMKO, SEV, UL, VDE |
