Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KG412A2XEA26X3SWITCH ROCKER DPST 15A 12V |
1,890 |
|
Datasheet | KG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) - Illuminated | Black | No Marking | LED, Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KG472A2XXA21XXSWITCH ROCKER DPDT 10A 12V |
2,881 |
|
Datasheet | KG | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -10°C ~ 65°C | - |
|
KR373AKXXA12XXSWITCH ROCKER SPDT 10A 24V |
1,335 |
|
Datasheet | KR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|
|
KR413AKXXA12XXSWITCH ROCKER DPST 10A 24V |
4,697 |
|
Datasheet | KR | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (DC) | - | 24 V | Convex (Reverse V) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.83mm x 21.08mm | -40°C ~ 85°C | - |
|

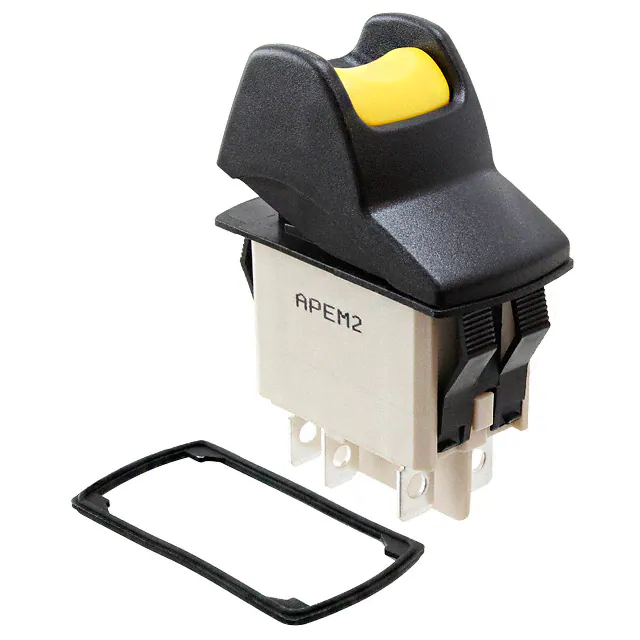

KL462AKXA125SWITCH ROCKER DPDT 10A 24V |
3,950 |
|
Datasheet | KL | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 10A (DC) | - | 24 V | Locking | Black, Yellow | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

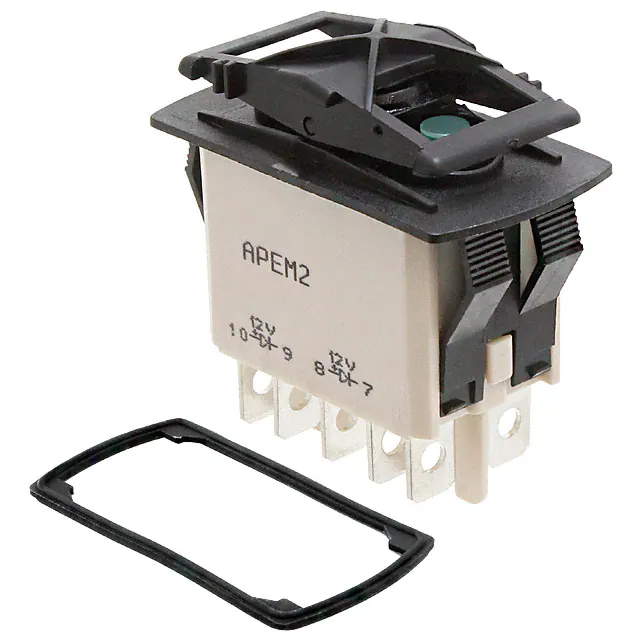

KR47CAKEEGSWITCH ROCKER DPDT 10A 24V |
4,674 |
|
Datasheet | KR | Tray | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (DC) | - | 24 V | Actuator Arm, Cap Required - Illuminated | - | Varies by Cap | LED, Green/Green | 12 VDC | Solder, Quick Connect - 0.250" (6.3mm) | IP68 - Dust Tight, Waterproof | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
|

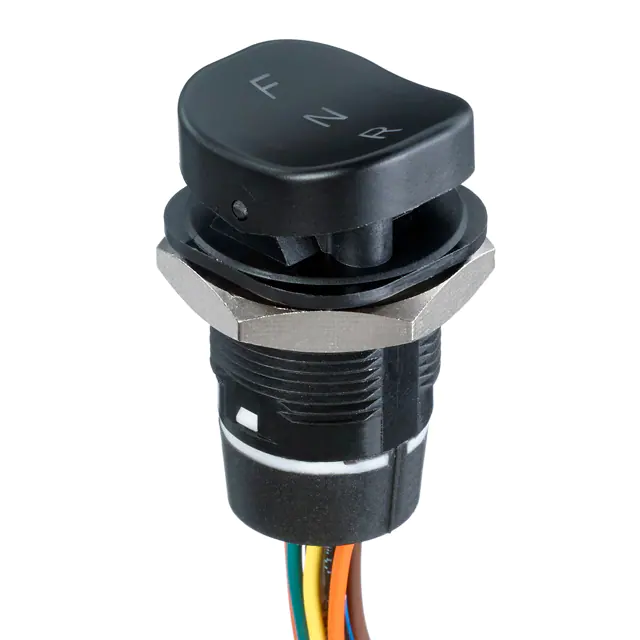

FNRCF4FSS2N2XWRX53XPMSWITCH ROCKER DP3T 1A 24V |
2,096 |
|
Datasheet | FNR | Tray | Active | Panel Mount, Threaded Body with Nut | DP3T | On-On-On | 1A (DC) | - | 24 V | Concave (Curved) - Illuminated | Black | - | LED, White | 12 VDC | Wire Leads | IP69K - Dust Tight, High Temp Water Jets, Waterproof | - | Circular - 20.20mm Dia | -40°C ~ 85°C | - |
|
|
TR36P00000012SWITCH ROCKER SPDT 0.4VA 20V |
1,875 |
|
Datasheet | TR | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
2636LHA232000L0SWITCH ROCKER SPDT 16A 125V |
4,689 |
|
Datasheet | 2600 | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC), 15A (DC) | 125 V | 12 V | Concave (Curved) | Black | No Marking | - | - | Screw Terminal | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CSA, NF, UL, VDE |
|
|
KG412A2XXA21XXSWITCH ROCKER DPST 15A 12V |
1,078 |
|
Datasheet | KG | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 15A (DC) | - | 12 V | Convex (Reverse V) | Black | No Marking | - | - | Solder, Quick Connect - 0.250" (6.3mm) | IP65 - Dust Tight, Water Resistant | - | Rectangular - 36.80mm x 21.08mm | -40°C ~ 85°C | - |
