RF Receivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Frequency | Sensitivity | Data Rate (Max) | Modulation or Protocol | Applications | Current - Receiving | Data Interface | Memory Size | Antenna Connector | Features | Voltage - Supply | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NEO-6Q-0MOD RF RECEIVER GPS TCXO |
2,983 |
|
Datasheet | NEO-6 | 24-SMD Module | Tape & Reel (TR) | Obsolete | - | -160dBm | - | GPS | GPS Receiver | - | I2C, SPI, UART, USB | - | Not Included | - | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
SI4825-A20-CSRF RX AM/FM |
1,191 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SI4836-A20-GSRF RX AM/FM |
4,005 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SI4825-A20-CSRRF RX AM/FM |
3,452 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SI4836-A20-GSRRF RX AM/FM |
4,248 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GPS-1216FGPS-1216F |
1,884 |
|
- |
- | 24-SMD Module | Bulk | Obsolete | - | -165dBm | 115.2kbps | GNSS, GPS | Fleet Management, Location, Navigation, Tracking | 23mA ~ 26mA | Serial, UART | - | Not Included | UART interface | 3V ~ 4.2V | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
LEA-6T-2RF RECEIVER GPS 28LCC |
3,678 |
|
- |
- | 28-SMD Module | Tape & Reel (TR) | Obsolete | - | -162dBm | - | Galileo, GLONASS, GPS | GPS Receiver | - | I2C, SPI, UART, USB | - | Not Included | - | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 28-SMD |
|
|
LEA-6T-2-074RF RECEIVER GPS 28LCC |
3,737 |
|
- |
- | 28-SMD Module | Tape & Reel (TR) | Obsolete | - | -160dBm | 12Mbps | Galileo, GLONASS, GPS | GPS Receiver | - | I2C, SPI, UART, USB | - | Not Included | SPI digital interface, UART interface, USB Interface | 2.7V ~ 3.6V | -40°C ~ 85°C | - | - | Surface Mount | 28-SMD |
|
|
RYS8830REYAX RYS8830 GNSS Glonass BeiDo |
2,652 |
|
Datasheet | GNSS, GPS | Module | Case | Active | 1.561GHz, 1.575GHz, 1.602GHz | -167dBm | - | BeiDou, GLONASS, GPS | GPS/GNSS Receiver | - | - | - | - | - | 1.71V ~ 1.89V | -40°C ~ 85°C | - | - | - | - |
|
|
UBX-M10050-KB-A0100AIC GPS GNSS SUPER LO PWR 47WLCSP |
1,048 |
|
Datasheet | - | 28-UFQFN Exposed Pad | Tray | Active | - | -167dBm | - | BeiDou, Galileo, GLONASS, GNSS, GPS | GPS/GNSS Receiver | - | I2C, SPI, UART, USB | - | Not Included | SPI digital interface, UART interface, USB Interface | 1V ~ 1.8V | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 28-QFN (4x4) |
|
|
UBX-M10050-KB- A0100IC GPS GNSS LOW POWER 47WLCSP |
4,286 |
|
Datasheet | - | 28-UFQFN Exposed Pad | Tray | Active | - | -167dBm | - | BeiDou, Galileo, GLONASS, GNSS, GPS | GPS/GNSS Receiver | - | I2C, SPI, UART, USB | - | Not Included | SPI digital interface, UART interface, USB Interface | 1V ~ 1.8V | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 28-QFN (4x4) |
|
|
704006200M.2 card Septentrio MOSAIC-H |
1,287 |
|
Datasheet | - | PCB Module | Retail Package | Active | - | - | - | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, NAVIC | GNSS Receiver | - | UART, USB | - | MMCX | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | User Defined | Module |
|
|
M20072GNSS MODULE INTEGRATED ANTENNA |
4,579 |
|
Datasheet | - | 28-SMD, No Lead | Tape & Reel (TR) | Active | 698MHz ~ 798MHz, 824MHz ~ 849MHz, 869MHz ~ 894MHz, 880MHz ~ 915MHz, 1.71GHz ~ 1.79GHz, 1.85GHz ~ 1.91GHz, 1.92GHz ~ 1.98GHz, 2.4GHz ~ 2.49GHz, 2.5GHz ~ 2.69GHz | -165dBm | 115.2kbps | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS | GPS | - | UART | - | Integrated, Chip | Multiple Channels | 1.62V ~ 1.98V | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
704006300M.2 card Septentrio MOSAIC-T |
2,033 |
|
Datasheet | - | PCB Module | Retail Package | Active | - | - | - | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, NAVIC | GNSS Receiver | - | UART, USB | - | MMCX | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | User Defined | Module |
|
|
704006100M.2 card Septentrio MOSAIC-X5 |
3,428 |
|
Datasheet | - | PCB Module | Retail Package | Active | - | - | - | BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, NAVIC | GNSS Receiver | - | UART, USB | - | MMCX | - | 3V ~ 5.5V | -40°C ~ 85°C | - | - | User Defined | Module |
|

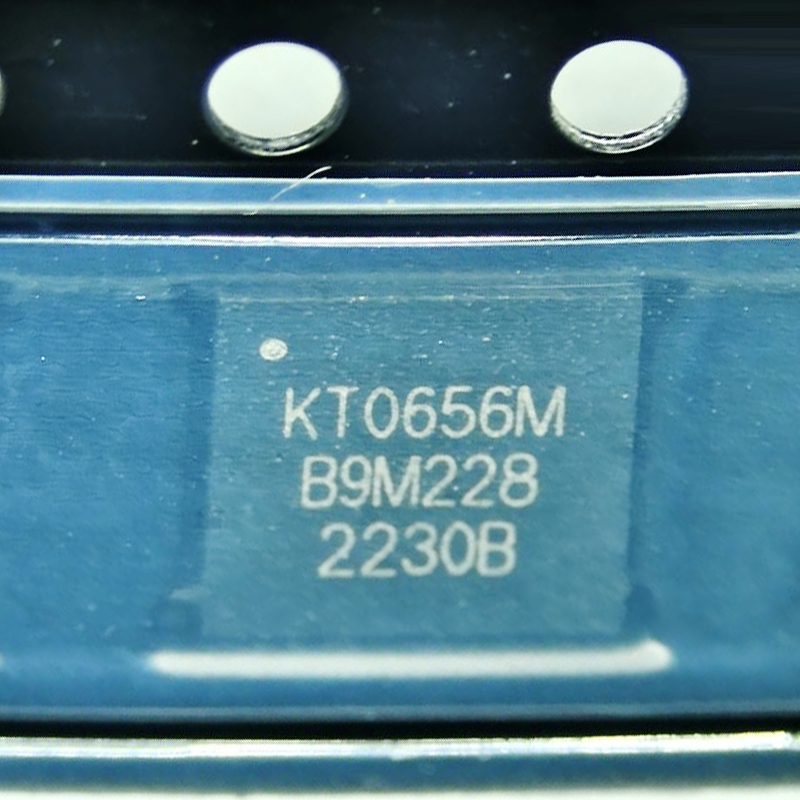

KT0656MKT0656M is a highly integrated UHF wireless microphone receiver IC with 470–960 MHz coverage, I2C control, analog and digital audio output, low-power operation, and built-in audio processing for wireless audio designs. |
9,999 |
|
- |
KT06xx | QFN-32, Exposed Pad | Tape & Reel (TR) | Active | 470MHz ~ 960MHz | -108dBm @ 12dB SINAD | N/A | FM | UHF Wireless Microphones, Wireless Audio Receivers | < 60mA | I2C, I2S | N/A | None - RF Input Pins | AFC, Auto Mute, Analog/Digital Audio Output, Audio Processing | 2.0V ~ 3.6V | -30°C ~ +70°C | Commercial | N/A | Surface Mount | QFN-32 (5mm × 5mm) |
|

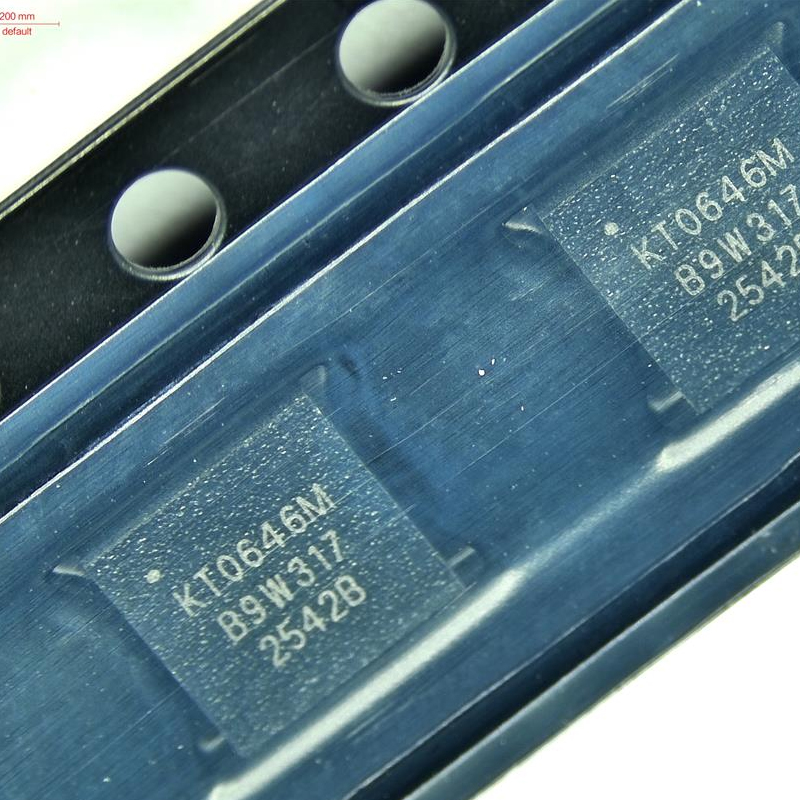

KT0646MKT0646M is a low-power UHF FM audio transmitter IC from KTmicro, supporting 470–960MHz operation, up to 18dBm RF output, integrated audio processing, PLL, and compact QFN-24 packaging. |
9,999 |
|
- |
KT0646M | 24-QFN (4x4) | Tape & Reel (TR) | Active | 470MHz ~ 960MHz | N/A | N/A | FM | Wireless Microphones, UHF Audio Transmitters, Portable Audio Systems, Teaching and Tour Guide Systems | N/A | 2-Wire Serial Interface | N/A | N/A | Integrated UHF FM Transmitter, Audio Processing, PLL, Configurable RF Power, Up to 18dBm Output | 2.0V ~ 3.6V | -20°C ~ +70°C | Commercial | RoHS | Surface Mount | 24-QFN (4x4) |
