Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3DDG-1418MIDC CABLE - CKR14G/AE14M/CKR14G |
1,794 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3EES-2018MIDC CABLE - CCE20S/AE20M/CCE20S |
1,980 |
|
Datasheet | - | Bulk | Active | Card Edge to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|

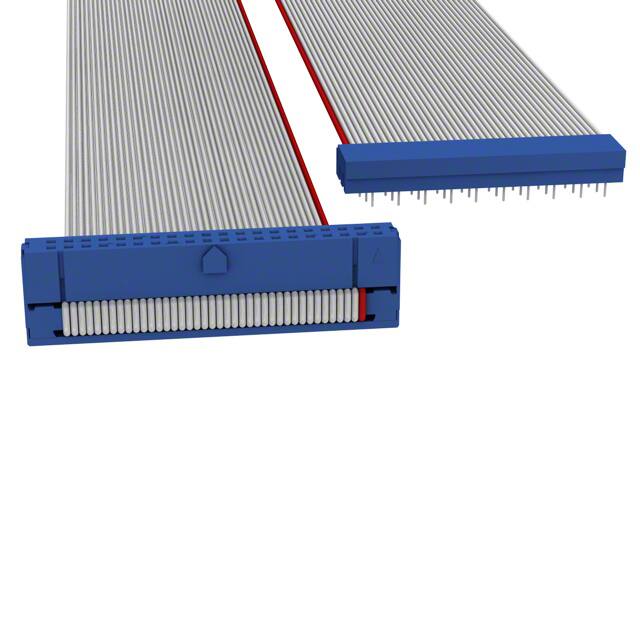

C3DPS-4006GIDC CABLE - CKR40S/AE40G/CPC40S |
4,035 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 40 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3BBG-1606MIDC CABLE - CSR16G/AE16M/CSR16G |
2,703 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3BBG-1436GIDC CABLE - CSR14G/AE14G/CSR14G |
3,049 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3DDG-1436GIDC CABLE - CKR14G/AE14G/CKR14G |
2,247 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3PES-2618MIDC CABLE - CPC26S/AE26M/CCE26S |
1,696 |
|
Datasheet | - | Bulk | Active | Card Edge to PCB | 26 | 2, 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3DDG-1606MIDC CABLE - CKR16G/AE16M/CKR16G |
4,308 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

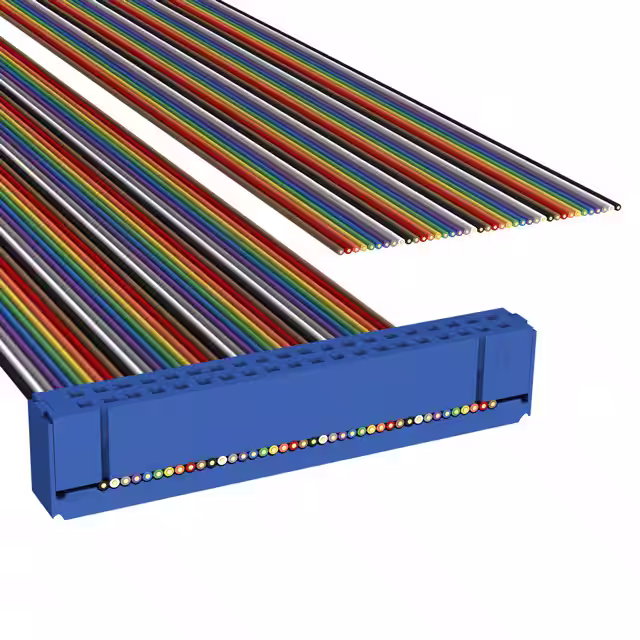

C1AXS-4036MIDC CABLE - CSC40S/AE40M/X |
4,798 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C1CXS-4036MIDC CABLE - CKC40S/AE40M/X |
3,907 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
