Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0PPS-1418GDIP CABLE - CDP14S/AE14G/CDP14S |
181 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

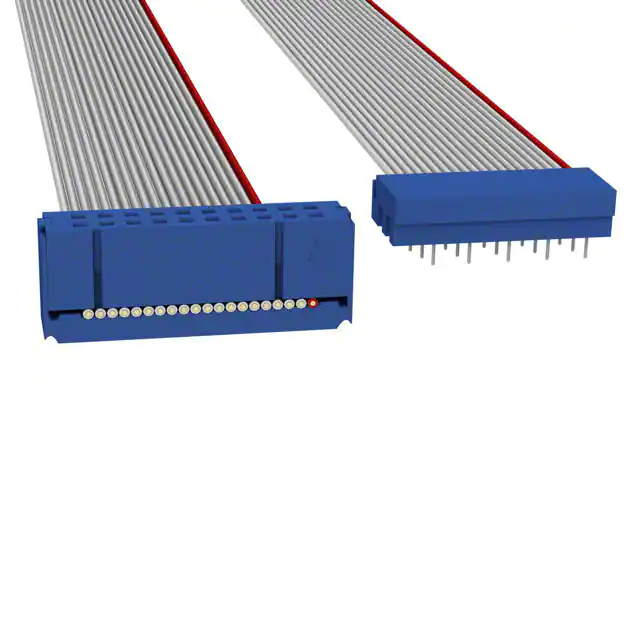

C3APS-2006GIDC CABLE - CSC20S/AE20G/CPC20S |
4,153 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 20 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

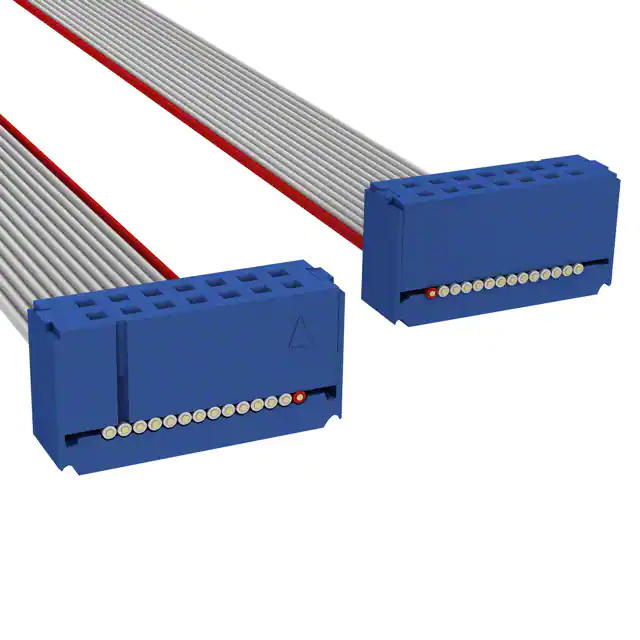

C3AAS-1406GIDC CABLE - CSC14S/AE14G/CSC14S |
1,358 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3PPS-2006GIDC CABLE - CPC20S/AE20G/CPC20S |
4,818 |
|
Datasheet | - | Bulk | Active | PCB to PCB | 20 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|

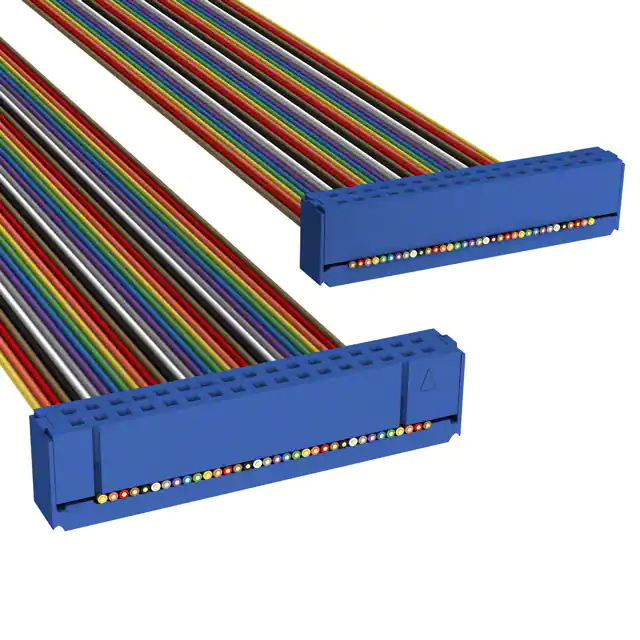

C3AAS-3406MIDC CABLE - CSC34S/AE34M/CSC34S |
3,133 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3AAS-4006GIDC CABLE - CSC40S/AE40G/CSC40S |
1,200 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3PPS-3406MIDC CABLE - CPC34S/AE34M/CPC34S |
2,912 |
|
Datasheet | - | Bulk | Active | PCB to PCB | 34 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
|
C3EES-2618MIDC CABLE - CCE26S/AE26M/CCE26S |
4,605 |
|
Datasheet | - | Bulk | Active | Card Edge to Card Edge | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C2PXS-1618GDIP CABLE - CDP16S/AE16G/X |
3,942 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C1PXS-1036MIDC CABLE - CPC10S/AE10M/X |
3,268 |
|
Datasheet | - | Bulk | Active | PCB to Cable | 10 | 4 | 0.050" (1.27mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Board In | IDC | Tin-Lead | 100.0µin (2.54µm) |
