Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3AAS-3436GIDC CABLE - CSC34S/AE34G/CSC34S |
3,249 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-3436GIDC CABLE - CKC34S/AE34G/CKC34S |
3,500 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C2RXG-2436MDIP CABLE - CDP24G/AE24M/X |
2,221 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C4RXG-2436MDIP CABLE - CDR24G/AE24M/X |
1,972 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C3CCG-1636MIDC CABLE - CKC16G/AE16M/CKC16G |
2,199 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3BBS-2618GIDC CABLE - CSR26S/AE26G/CSR26S |
1,564 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3DDS-2618GIDC CABLE - CKR26S/AE26G/CKR26S |
2,042 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3CPS-4006GIDC CABLE - CKC40S/AE40G/CPC40S |
4,350 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 40 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

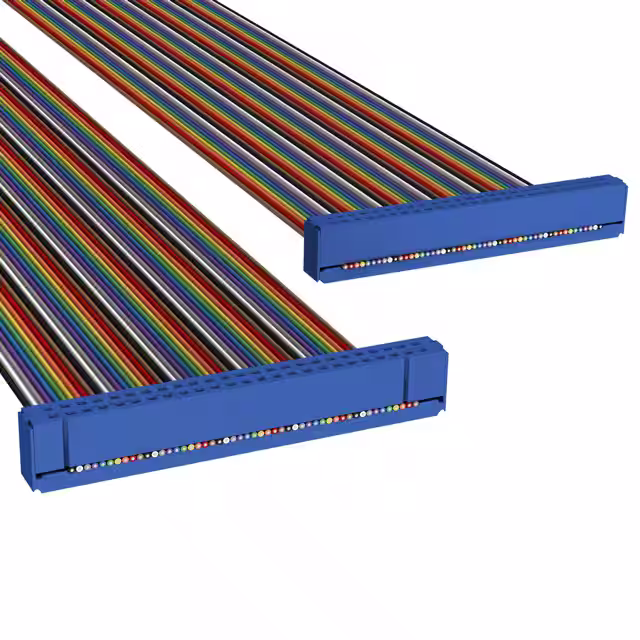

C3AAS-5006MIDC CABLE - CSC50S/AE50M/CSC50S |
3,455 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-5006MIDC CABLE - CKC50S/AE50M/CKC50S |
1,044 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 50 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
