Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3DDG-1006MIDC CABLE - CKR10G/AE10M/CKR10G |
1,507 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|

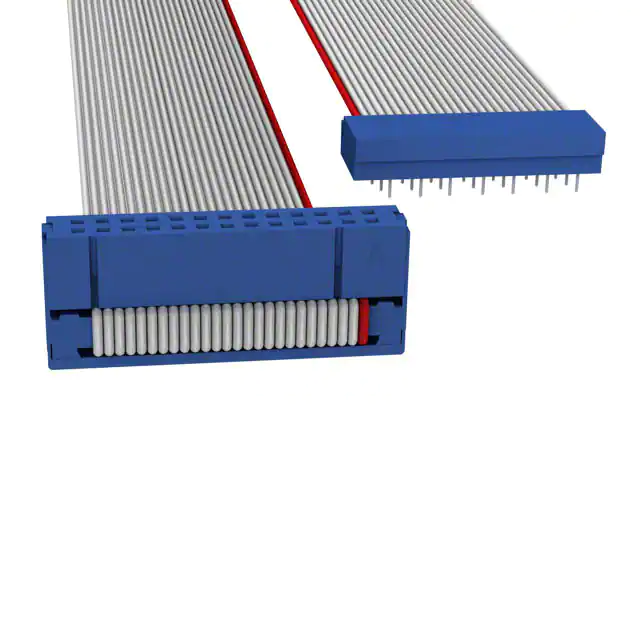

C3BPS-2606GIDC CABLE - CSR26S/AE26G/CPC26S |
1,116 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 26 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3DPS-2606GIDC CABLE - CKR26S/AE26G/CPC26S |
1,035 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 26 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C6PPG-1636MDIP CABLE - CDP16G/AE16M/CDP16G |
1,547 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C8PPG-1636MDIP CABLE - CDP16G/AE16M/CDP16G |
1,132 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C0PPG-1636MDIP CABLE - CDP16G/AE16M/CDP16G |
4,022 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C3AAG-1418MIDC CABLE - CSC14G/AE14M/CSC14G |
3,712 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3CCG-1418MIDC CABLE - CKC14G/AE14M/CKC14G |
1,498 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3AES-2018MIDC CABLE - CSC20S/AE20M/CCE20S |
3,501 |
|
Datasheet | - | Bulk | Active | Socket to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CES-2018MIDC CABLE - CKC20S/AE20M/CCE20S |
4,736 |
|
Datasheet | - | Bulk | Active | Socket to Card Edge | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
