Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1AXS-1036MIDC CABLE - CSC10S/AE10M/X |
3,546 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|

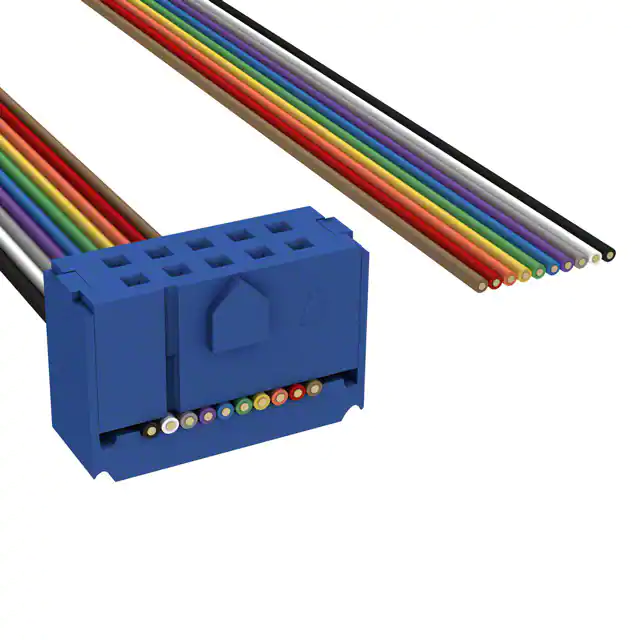

C1CXS-1036MIDC CABLE - CKC10S/AE10M/X |
1,957 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 10 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|

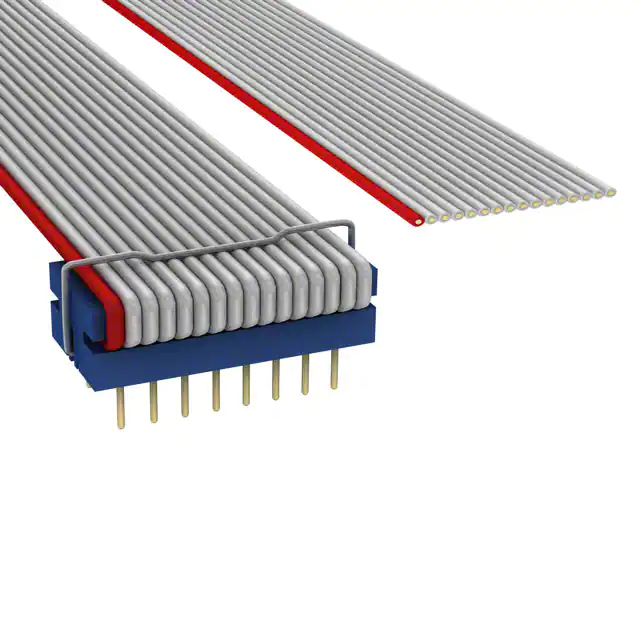

C2RXG-1606GDIP CABLE - CDP16G/AE16G/X |
1,033 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C4RXG-1606GDIP CABLE - CDR16G/AE16G/X |
2,217 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C2PXG-1418MDIP CABLE - CDP14G/AE14M/X |
2,448 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C4PXG-1418MDIP CABLE - CDP14G/AE14M/X |
3,994 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C4PXG-1436GDIP CABLE - CDP14G/AE14G/X |
4,116 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
|
C2PXG-1436GDIP CABLE - CDP14G/AE14G/X |
3,312 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 10.0µin (0.25µm) |
|
C0RRS-1406GDIP CABLE - CDR14S/AE14G/CDR14S |
2,008 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

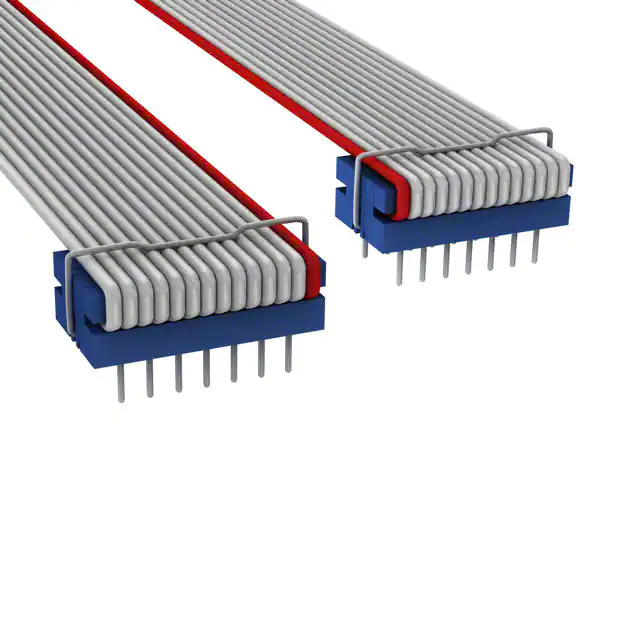

C6RRS-1406GDIP CABLE - CDR14S/AE14G/CDR14S |
1,336 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Tin | 100.0µin (2.54µm) |
