Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C3DDG-2006MIDC CABLE - CKR20G/AE20M/CKR20G |
1,870 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 0.500' (152.40mm, 6.00") | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C0PPS-2436MDIP CABLE - CDP24S/AE24M/CDP24S |
3,525 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C6PPS-2436MDIP CABLE - CDP24S/AE24M/CDP24S |
1,102 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|
|
C8PPS-2436MDIP CABLE - CDP24S/AE24M/CDP24S |
1,938 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Tin | 100.0µin (2.54µm) |
|

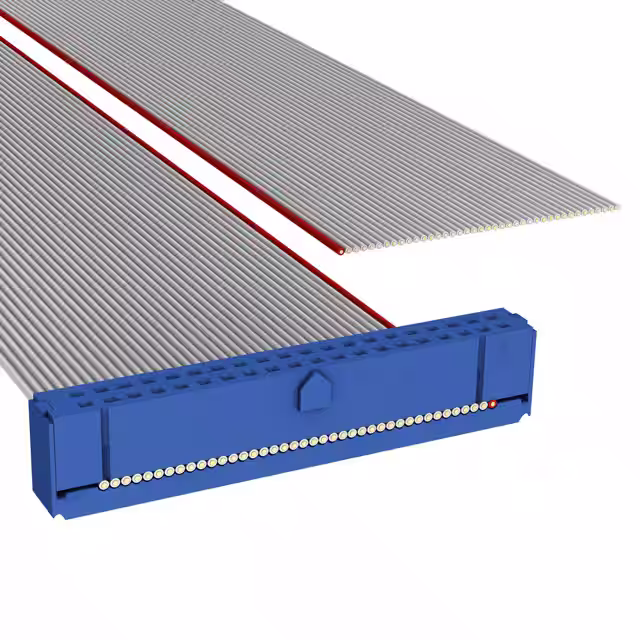

C1CXG-4036GIDC CABLE - CKC40G/AE40G/X |
3,622 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 10.0µin (0.25µm) |
|
C3AAS-3436MIDC CABLE - CSC34S/AE34M/CSC34S |
2,940 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Multiple, Ribbon | Unshielded | - | IDC | Tin | 100.0µin (2.54µm) |
|
C3CCS-3436MIDC CABLE - CKC34S/AE34M/CKC34S |
2,838 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3BPS-2636MIDC CABLE - CSR26S/AE26M/CPC26S |
4,370 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 26 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C3DPS-2636MIDC CABLE - CKR26S/AE26M/CPC26S |
4,334 |
|
Datasheet | - | Bulk | Active | Socket to PCB | 26 | 2, 4 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | Board In | IDC | Tin | 100.0µin (2.54µm) |
|
C2RXG-4036GDIP CABLE - CDP40G/AE40G/X |
3,767 |
|
Datasheet | - | Bulk | Active | DIP to Cable | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Gray, Ribbon | Unshielded | Socket (0.6"), Board In | IDC | Gold | 10.0µin (0.25µm) |
