Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M3YYK-2020KIDC CABLE - MPD20K/MC20F/MPD20K |
2,585 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Flange, Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3TKK-2640KIDC CABLE - MSD26K/MC26F/MPK26K |
1,817 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

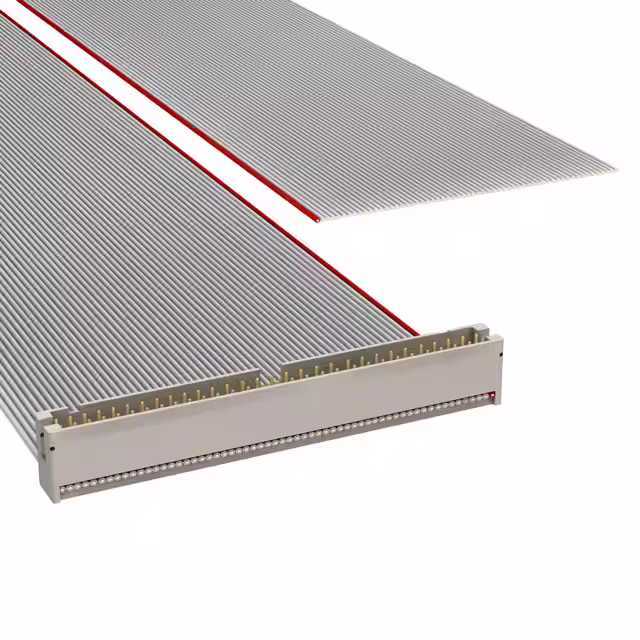

M1KXK-6036JIDC CABLE - MPK60K/MC60G/X |
1,558 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

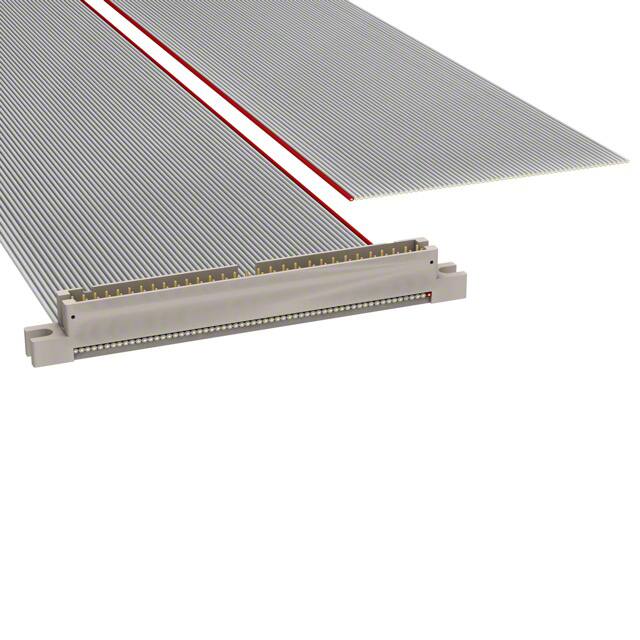

M1WXK-6036JIDC CABLE - MPL60K/MC60G/X |
2,664 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 60 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3TKK-4018JIDC CABLE - MSD40K/MC40G/MPK40K |
2,716 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3TTK-2660KIDC CABLE - MSD26K/MC26F/MSD26K |
2,401 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 5.00' (1.52m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3RRK-2418RIDC CABLE - MPR24K/MC24M/MPR24K |
1,874 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BRK-3018JIDC CABLE - MSR30K/MC34G/MPR30K |
2,171 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3DRK-3018JIDC CABLE - MKR30K/MC34G/MPR30K |
4,824 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3BYK-3018JIDC CABLE - MSR30K/MC34G/MPD30K |
4,611 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Strain Relief (Socket); Flange, Polarizing Key, Strain Relief (Plug) | Gray, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
