Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

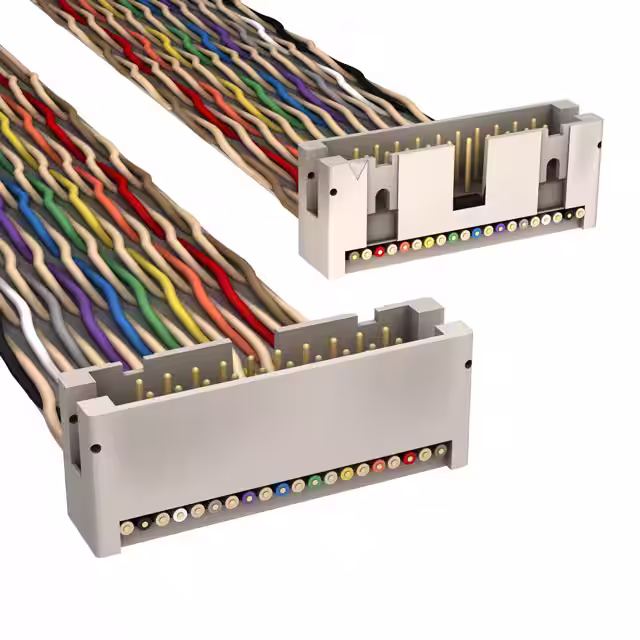

M3KKK-2040KIDC CABLE - MPK20K/MC20F/MPK20K |
4,112 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.34' (1.02m) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3AGK-4020KIDC CABLE - MSC40K/MC40F/MCS40K |
4,887 |
|
Datasheet | - | Bulk | Active | Socket to Card Edge | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Flange | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3URK-2636RIDC CABLE - MKS26K/MC26M/MPR26K |
3,101 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3UYK-2636RIDC CABLE - MKS26K/MC26M/MPD26K |
3,843 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief (Socket); Flange, Polarizing Key, Strain Relief (Plug) | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

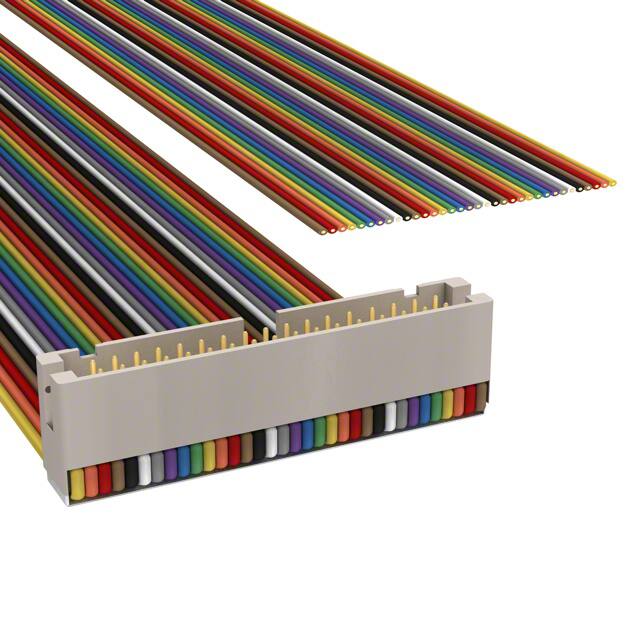

M1RXK-3436RIDC CABLE - MPR34K/MC34M/X |
4,271 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M1YXK-3436RIDC CABLE - MPD34K/MC34M/X |
4,562 |
|
Datasheet | - | Bulk | Active | Plug to Cable | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Flange, Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|

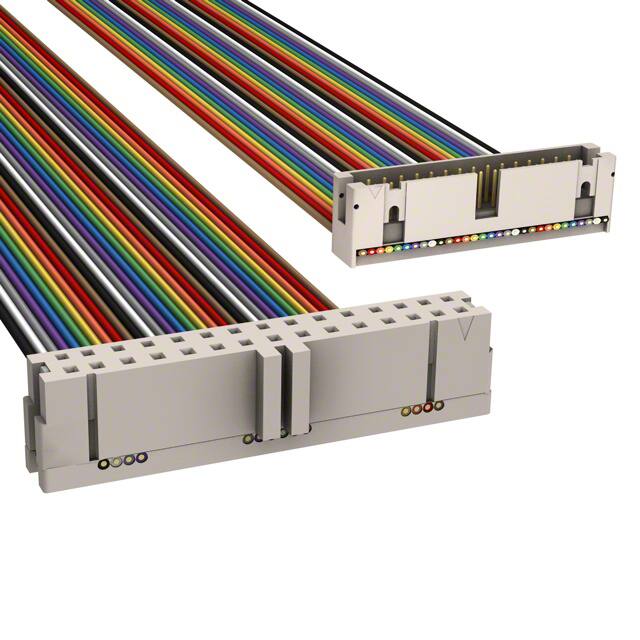

M3TKK-3036RIDC CABLE - MSD30K/MC34M/MPK30K |
3,805 |
|
Datasheet | - | Bulk | Active | Socket to Plug | 30 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Multiple, Ribbon | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3KKK-2620KIDC CABLE - MPK26K/MC26F/MPK26K |
3,542 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3RRK-2020KIDC CABLE - MPR20K/MC20F/MPR20K |
4,623 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Polarizing Key, Strain Relief | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
|
M3WWK-2620KIDC CABLE - MPL26K/MC26F/MPL26K |
3,491 |
|
Datasheet | - | Bulk | Active | Plug to Plug | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.67' (508.00mm) | Flange, Polarizing Key | Multiple, Twisted Pair (Flat) | Unshielded | - | IDC | Gold | 30.0µin (0.76µm) |
