Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H6MMH-2036GDIP CABLE - HDM20H/AE20G/HDM20H |
1,980 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H8MMH-2036GDIP CABLE - HDM20H/AE20G/HDM20H |
1,763 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
H6MMS-2036GDIP CBL - HHDM20S/AE20G/HHDM20S |
4,216 |
|
Datasheet | - | Bulk | Active | DIP to DIP | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
|
H8MMS-2036GDIP CBL - HHDM20S/AE20G/HHDM20S |
4,692 |
|
Datasheet | - | Bulk | Active | DIP to DIP, Reversed | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|
H3DDH-2618MIDC CBL - HHKR26H/AE26M/HHKR26H |
1,814 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
|
Q15796846CCUSTOM ASSEMBLY SEE CNO |
1,994 |
|
- |
- | Bulk | Active | Socket to Socket | 34 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.70' (518.16mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|

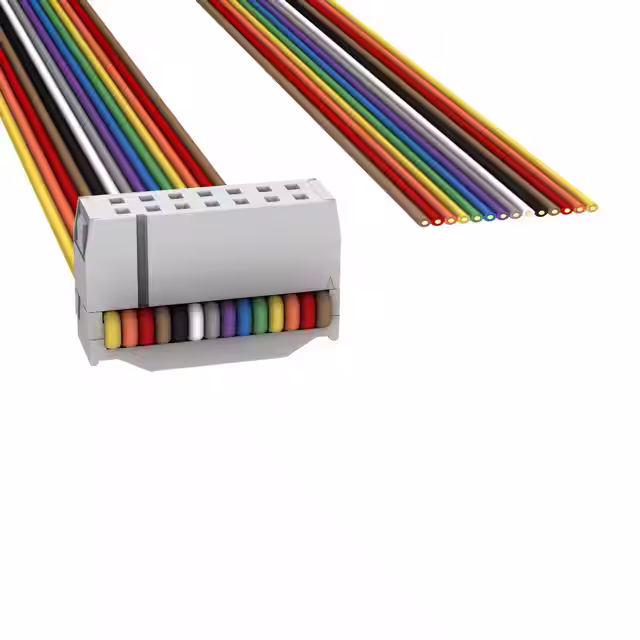

H1BXH-1436MIDC CBL - HHSR14H/AE14M/X |
3,370 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

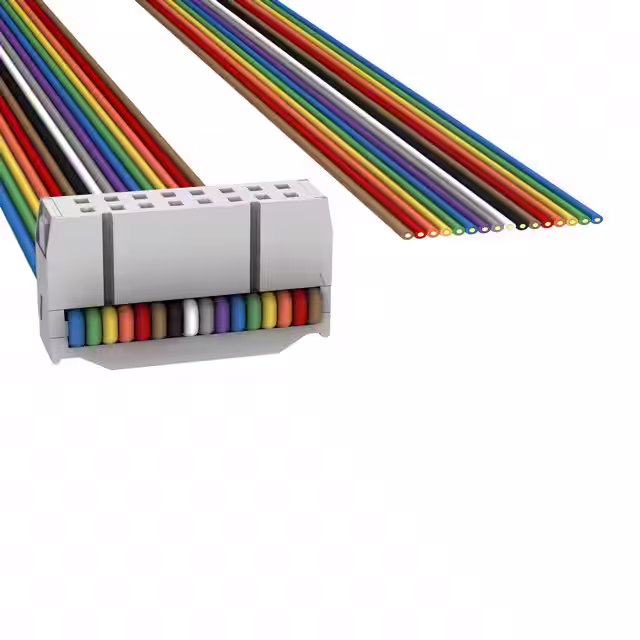

H1BXH-1636MIDC CBL - HHSR16H/AE16M/X |
2,269 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|
H1DXH-1436MIDC CBL - HHKR14H/AE14M/X |
4,237 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
|

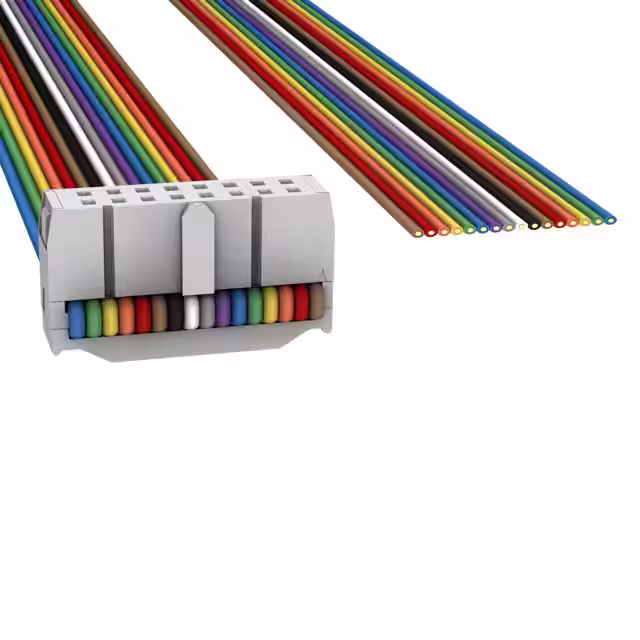

H1DXS-1636MIDC CBL - HHKR16S/AE16M/X |
1,377 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
