Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

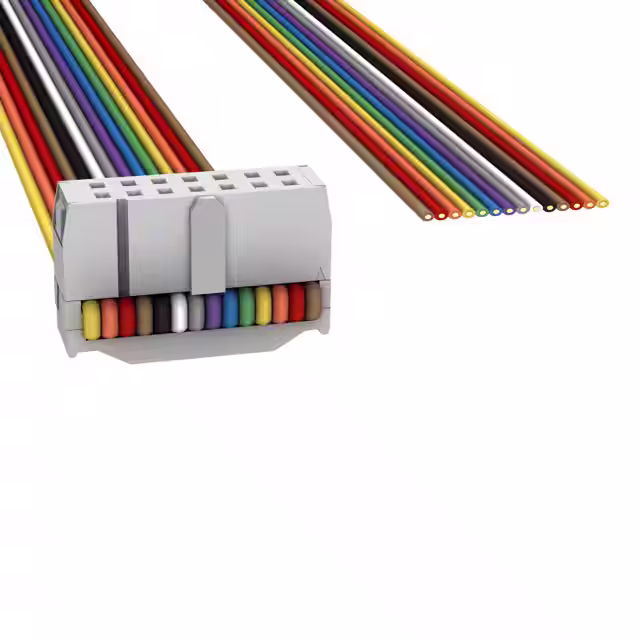

H1DXS-1436MIDC CBL - HHKR14S/AE14M/X |
2,100 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 14 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Multiple, Ribbon | Unshielded | - | IDC | Tin | - |
|
H2MXS-2618MDIP CABLE - HDM26S/AE26M/X |
3,614 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | DIP to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | - | Multiple, Ribbon | Unshielded | Socket (0.1"), Board In | IDC | Tin | - |
|

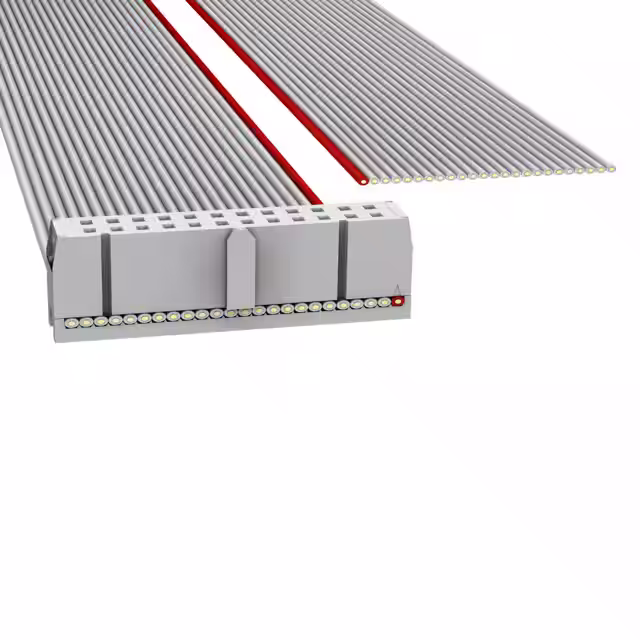

H1CXH-2436GIDC CBL - HHKC24H/AE24G/X |
3,035 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
H1CXS-2436GIDC CBL - HHKC24S/AE24G/X |
3,602 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 24 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3DDS-2036GIDC CBL - HHKR20S/AE20G/HHKR20S |
1,316 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 20 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H2PXH-1636GDIP CABLE - HDP16H/AE16G/X |
3,892 |
|
Datasheet | - | Bulk | Obsolete | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|
|
H4PXH-1636GDIP CABLE - HDP16H/AE16G/X |
2,513 |
|
Datasheet | - | Bulk | Obsolete | DIP to Cable | 16 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | - | Gray, Ribbon | Unshielded | Socket (0.3"), Board In | IDC | Gold | 30.0µin (0.76µm) |
|

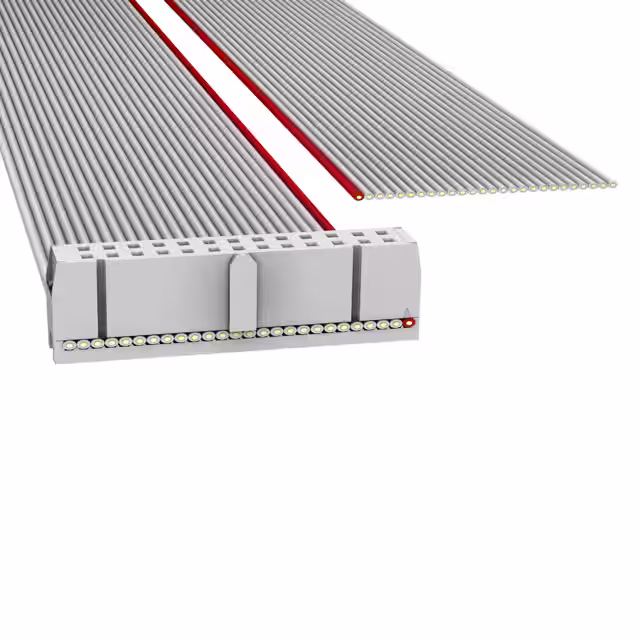

H1CXH-2636GIDC CBL - HHKC26H/AE26G/X |
3,727 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Gold | Flash |
|
|
H1CXS-2636GIDC CBL - HHKC26S/AE26G/X |
3,957 |
|
Datasheet | - | Bulk | Active | Socket to Cable | 26 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 3.00' (914.40mm) | Polarizing Key | Gray, Ribbon | Unshielded | - | IDC | Tin | - |
|
H3DDH-4018GIDC CBL - HHKR40H/AE40G/HHKR40H |
3,602 |
|
Datasheet | - | Bulk | Active | Socket to Socket | 40 | 2 | 0.100" (2.54mm) | 0.050" (1.27mm) | 1.50' (457.20mm) | Polarizing Key, Strain Relief | Gray, Ribbon | Unshielded | - | IDC | Gold | 15.0µin (0.38µm) |
