Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A04KR04DS28W152BJUMPER 04DS-8E - 04KR-8M-P 6" |
1,419 |
|
Datasheet | DS, KR | Bulk | Active | Socket to Plug | 4 | 1 | 0.079" (2.00mm) | - | 0.500' (152.40mm, 6.00") | - | White, Individual | - | - | IDC | Tin | - |
|
A05ZR05ZR28H152BJUMPER 05ZR-8M-P - 05ZR-8M-P 6" |
390 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 5 | 1 | 0.059" (1.50mm) | - | 0.500' (152.40mm, 6.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|
A03SUR03SUR32W254AJUMPER 03SUR-32S - 03SUR-32S 10" |
996 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 3 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
A08KR08KR26E51AJUMPER 08KR-6S-P - 08KR-6S-P 2" |
655 |
|
Datasheet | KR | Bulk | Active | Socket to Socket, Reversed | 8 | 1 | 0.079" (2.00mm) | - | 0.167' (50.80mm, 2.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
A03SUR03SUR32W254BJUMPER 03SUR-32S - 03SUR-32S 10" |
518 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket | 3 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A05XAF05XAF22K152AJUMPER 05XAF-2S - 05XAF-2S 6" |
336 |
|
Datasheet | XAF | Bulk | Active | Socket to Socket, Reversed | 5 | 1 | 0.098" (2.50mm) | - | 0.500' (152.40mm, 6.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
|
A05KR05KR26E152BJUMPER 05KR-6S-P - 05KR-6S-P 6" |
1,027 |
|
Datasheet | KR | Bulk | Active | Socket to Socket | 5 | 1 | 0.079" (2.00mm) | - | 0.500' (152.40mm, 6.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|

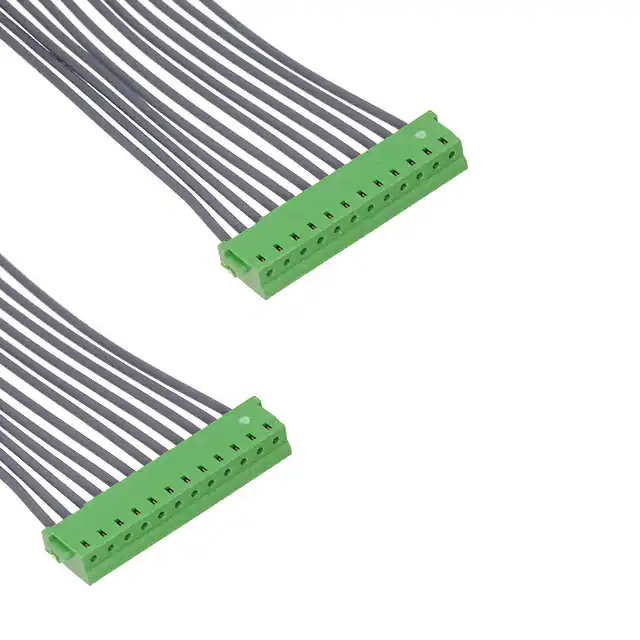

A12ZR12ZR28H51BJUMPER 12ZR-8M-P - 12ZR-8M-P 2" |
176 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 12 | 1 | 0.059" (1.50mm) | - | 0.167' (50.80mm, 2.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|
|
A02SUR02SUR32W203AJUMPER 02SUR-32S -02SUR-32S 8" |
1,152 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 2 | 1 | 0.031" (0.80mm) | - | 0.667' (203.20mm, 8.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A03SUR03SUR32W102AJUMPER 03SUR-32S - 03SUR-32S 4" |
445 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 3 | 1 | 0.031" (0.80mm) | - | 0.333' (101.60mm, 4.00") | - | White, Individual | - | - | IDC | Tin | - |
