Rectangular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Connector Type | Number of Positions | Number of Rows | Pitch - Connector | Pitch - Cable | Length | Features | Color | Shielding | Usage | Cable Termination | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A02KR02KR26E254AJUMPER 02KR-6S-P - 02KR-6S-P 10" |
891 |
|
Datasheet | KR | Bulk | Active | Socket to Socket, Reversed | 2 | 1 | 0.079" (2.00mm) | - | 0.833' (254.00mm, 10.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
A08ZR08ZR28H51BJUMPER 08ZR-8M-P - 08ZR-8M-P 2" |
1,574 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 8 | 1 | 0.059" (1.50mm) | - | 0.167' (50.80mm, 2.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|

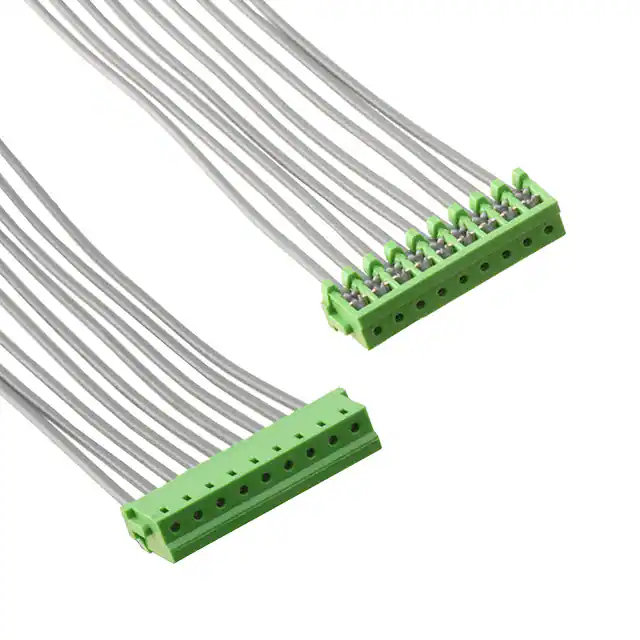

A09ZR09ZR28H51AJUMPER 09ZR-8M-P - 09ZR-8M-P 2" |
122 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket, Reversed | 9 | 1 | 0.059" (1.50mm) | - | 0.167' (50.80mm, 2.00") | - | Gray, Individual | - | - | IDC | Tin | - |
|
A05XAF05XAF22K51BJUMPER 05XAF-2S - 05XAF-2S 2" |
677 |
|
Datasheet | XAF | Bulk | Active | Socket to Socket | 5 | 1 | 0.098" (2.50mm) | - | 0.167' (50.80mm, 2.00") | - | Black, Individual | - | - | IDC | Tin | - |
|
|
A02SUR02SUR32W254BJUMPER 02SUR-32S -02SUR-32S 10" |
286 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket | 2 | 1 | 0.031" (0.80mm) | - | 0.833' (254.00mm, 10.00") | - | White, Individual | - | - | IDC | Tin | - |
|
A02SUR02SUR32W102AJUMPER 02SUR-32S -02SUR-32S 4" |
541 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket, Reversed | 2 | 1 | 0.031" (0.80mm) | - | 0.333' (101.60mm, 4.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A06KR06KR26E254BJUMPER 06KR-6S-P - 06KR-6S-P 10" |
855 |
|
Datasheet | KR | Bulk | Active | Socket to Socket | 6 | 1 | 0.079" (2.00mm) | - | 0.833' (254.00mm, 10.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
|
A06KR06KR26E254AJUMPER 06KR-6S-P - 06KR-6S-P 10" |
576 |
|
Datasheet | KR | Bulk | Active | Socket to Socket, Reversed | 6 | 1 | 0.079" (2.00mm) | - | 0.833' (254.00mm, 10.00") | - | Blue, Individual | - | - | IDC | Tin | - |
|
|
A03SUR03SUR32W51BJUMPER 03SUR-32S - 03SUR-32S 2" |
174 |
|
Datasheet | SUR | Bulk | Active | Socket to Socket | 3 | 1 | 0.031" (0.80mm) | - | 0.167' (50.80mm, 2.00") | - | White, Individual | - | - | IDC | Tin | - |
|
|
A02ZR02ZR28H203BJUMPER 02ZR-8M-P - 02ZR-8M-P 8" |
1,445 |
|
Datasheet | ZR | Bulk | Active | Socket to Socket | 2 | 1 | 0.059" (1.50mm) | - | 0.667' (203.20mm, 8.00") | - | Gray, Individual | - | - | IDC | Tin | - |
