Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8100B2M1CEBLKBLUBLUSWITCH PB SPST-NO 0.125A 125V |
2,225 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Blue | LED, Blue | 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

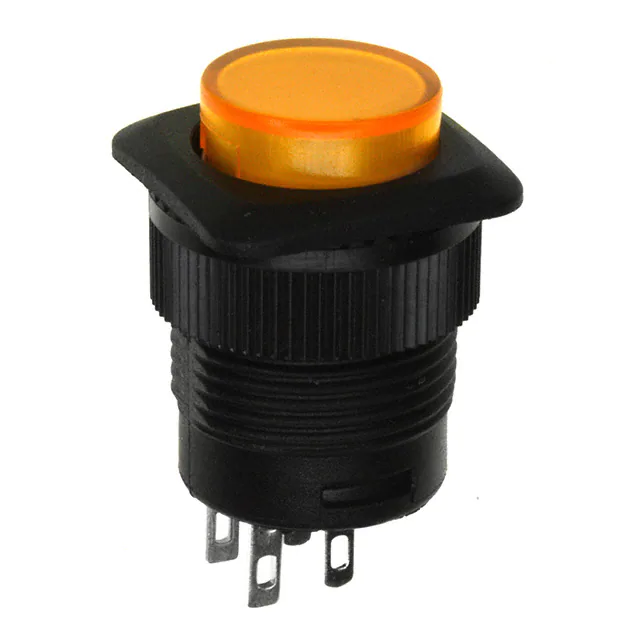

RP3508ABLKYELYELNSSWITCH PUSH SPST-NO 3A 125V |
3,697 |
|
Datasheet | RP3508 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 3A (AC) | 125 V | - | Round, Button | No Marking | Yellow | LED, Yellow | 2.2 VDC | Solder Lug | - | - | Circular - 16.00mm Dia | 0°C ~ 65°C |
|
RP8200B2M1CEBLKBLKWHTSWITCH PUSH SPST 0.1A 24V |
1,526 |
|
Datasheet | RP8200 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST | Off-On | 100mA (DC) | - | 24 V | Round, Button | No Marking | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PV6F24011-3L1SWITCH PB SPST-NO 2A 48V |
1,991 |
|
Datasheet | PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | - | Black | LED, Blue/Orange | 1.8, 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
PV0H240SS-301SWITCH PB SPST-NO 2A 36V |
1,176 |
|
Datasheet | PV0, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Silver | LED, White | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 55°C |
|
PV6F240NN-341SWITCH PUSH SPST-NO 2A 48V |
1,740 |
|
Datasheet | PV6, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Blue | 2.8 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
ULV4F2BSSG3G1SWITCH PUSHBUTTON SPDT 3A 250V |
2,395 |
|
Datasheet | ULV4 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 3A (AC) | 250 V | - | Round, Button, Flush | No Marking | Silver | LED, Green/Red | 3 VDC | Solder, Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 55°C |
|
|
PVA6RE241G1SWITCH PB SPST-NO 2A 36V |
1,885 |
|
Datasheet | PVA6 | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button | - | Black | LED, Green/Red | 1.7, 2.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 70°C |
|
|
PVHC4F23SSANTI-VANDAL, 20A, SPST, CIRCULAR |
4,492 |
|
Datasheet | PVHC4 | Box | Active | Panel Mount, Front | Anti-Vandal | SPST | Off-On | 20A (AC), 25A (DC) | 250 V | 30 V | Round, Button, Flush | - | Silver | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -40°C ~ 85°C |
|
PV3WF2B0SS-335SWITCH PUSHBUTTON SPDT 2A 48V |
4,190 |
|
Datasheet | PV3, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-Mom | 2A (DC) | - | 48 V | Round, Button, Flush | No Marking | Silver | LED, Green | 24 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
