Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL2201EEZASWITCH PUSH DPDT 0.1A 30V |
198 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|

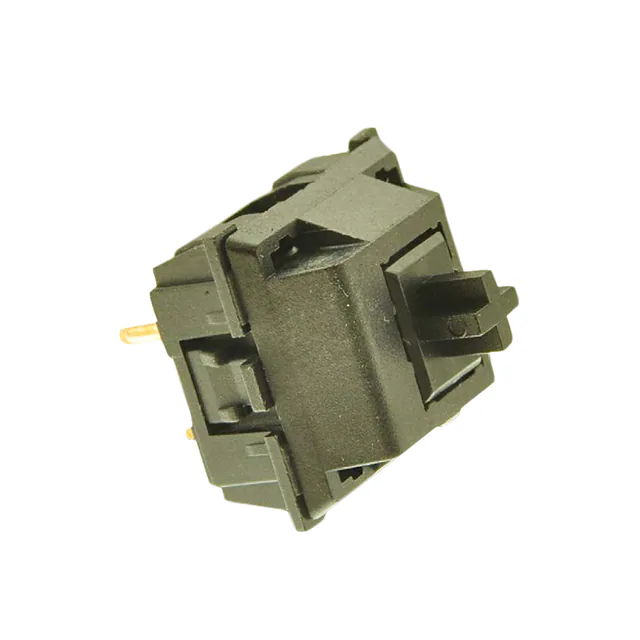

KS1100OA1AF060SWITCH PUSH SPST-NO 0.01A 12V |
350 |
|
Datasheet | KS1100 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 12 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -10°C ~ 70°C |
|

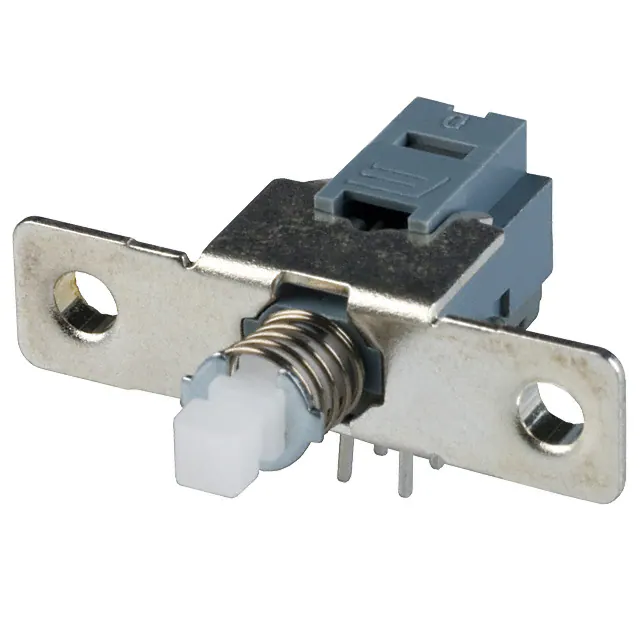

1XPBH2UEENAGXSWITCH PUSH DPDT 0.1A 30V |
543 |
|
Datasheet | PBH | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
PBH2UEENAG1RWHTSWITCH PUSH DPDT 0.1A 30V |
475 |
|
Datasheet | PBH | Bulk | Active | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -20°C ~ 70°C |
|
TL2201EEXASWITCH PUSH DPDT 0.1A 30V |
580 |
|
Datasheet | TL2201 | Bulk | Active | Through Hole | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | - |
|
LC1258OASPSWITCH PUSHBUTTON SPDT 0.3A 30V |
4,350 |
|
Datasheet | LC | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
PA512CSWITCH PUSHBUTTON DPST 16A 125V |
4,354 |
|
Datasheet | PA5, LAMB | Bulk | Active | Panel Mount, Snap-In | Standard | DPST | Off-On | 16A (AC) | 125 V | - | Plunger for Cap | No Marking | Yellow | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 125°C |
|

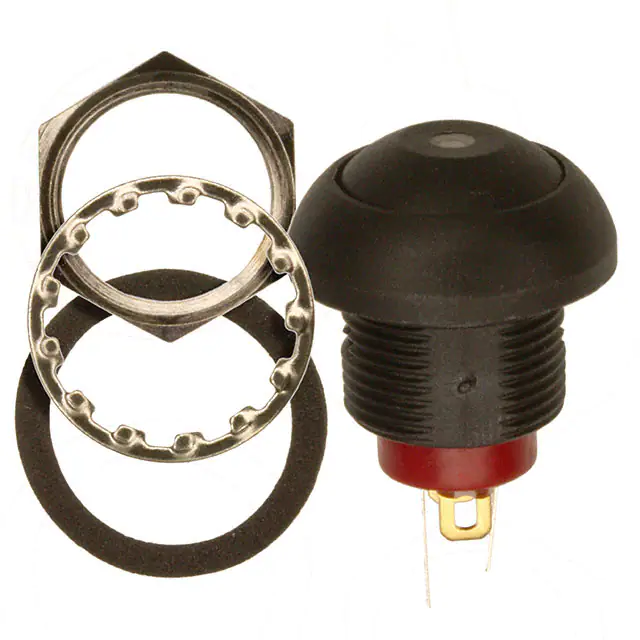

RP8100B2M1CEBLKBLKWHTSWITCH PB SPST-NO 0.125A 125V |
1,667 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
PV5S64016SWITCH PUSH SPST-NO 2A 36V |
3,501 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Yellow | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
|
PV5S64018SWITCH PUSH SPST-NO 2A 36V |
2,022 |
|
Datasheet | PV5, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Domed | No Marking | Green | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 12.00mm Dia | -20°C ~ 70°C |
