Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

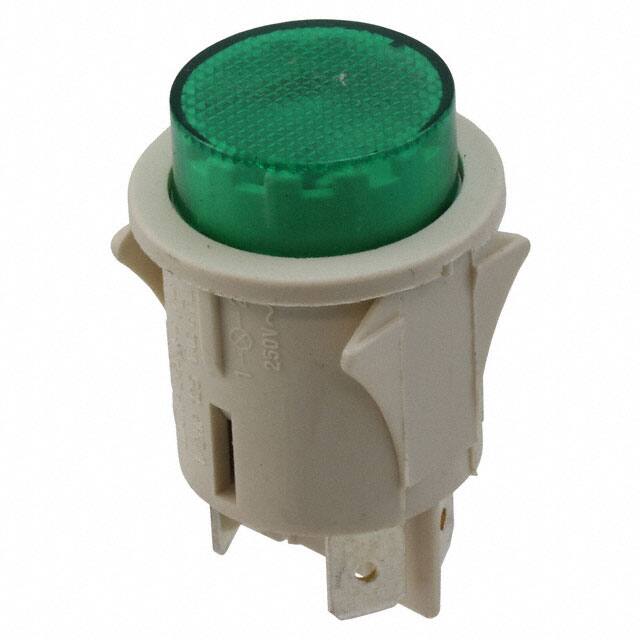

PR142C3000-136SWITCH PUSHBUTTON DPST 16A 125V |
2,620 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Green | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
PR142C1000-107/ACC-F03-1SWITCH PUSHBUTTON DPST 16A 125V |
1,519 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | PVC Cap and Frame | Circular - 25.00mm Dia | -20°C ~ 105°C |
|
D16EES11ABLUSWITCH PUSHBUTTON SPDT 8A 125V |
3,107 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Blue | Incandescent, Blue | 6 VAC/DC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
D16OAS13CBLUSWITCH PUSHBUTTON 3PDT 8A 125V |
2,968 |
|
Datasheet | D16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | 3PDT | On-Mom | 8A (AC), 6A (DC) | 125 V | 24 V | Square, Button | No Marking | Blue | Incandescent, Blue | 28 VAC/DC | Solder Lug | - | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
|
JN2UOANAGXJNTAMWHTSWITCH PUSH DPDT 0.1A 30V |
4,520 |
|
Datasheet | JN | Bulk | Active | Through Hole | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Round, Button | No Marking | White | - | - | PC Pin | - | - | - | -10°C ~ 60°C |
|
|
LC1257EENSSWITCH PUSHBUTTON SPDT 0.3A 30V |
4,697 |
|
Datasheet | LC | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Rectangular - 9.50mm x 5.30mm | -20°C ~ 85°C |
|
|
LC2256OANSSWITCH PUSHBUTTON DPDT 0.3A 30V |
4,926 |
|
Datasheet | LC | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | - | -20°C ~ 85°C |
|
|
LC2258OANSSWITCH PUSHBUTTON DPDT 0.3A 30V |
1,538 |
|
Datasheet | LC | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-Mom | 300mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | - | - | Rectangular - 7.50mm x 7.20mm | -20°C ~ 85°C |
|
|
MDP16EER3110BSWITCH PUSHBUTTON SPDT 8A 125V |
3,913 |
|
Datasheet | MDP-16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPDT | On-On | 8A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | 12 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
|
|
MDP16EER3211BSWITCH PUSHBUTTON DPDT 8A 125V |
1,949 |
|
Datasheet | MDP-16 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | DPDT | On-On | 8A (AC) | 125 V | - | Round, Button, Flush | No Marking | Blue | LED, Blue | 24 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 55°C |
