Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KS-01Q-01SWITCH PUSH SPST-NO 0.01A 35V |
3,267 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-01Q-02SWITCH PUSH SPST-NO 0.01A 35V |
3,811 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Red | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-01Q-03SWITCH PUSH SPST-NO 0.01A 35V |
4,258 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button | No Marking | Green | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-03Q-01SWITCH PUSH SPST-NO 0.01A 35V |
4,855 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-03Q-02SWITCH PUSH SPST-NO 0.01A 35V |
2,504 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-03Q-03SWITCH PUSH SPST-NO 0.01A 35V |
4,955 |
|
Datasheet | KS, LAMB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Square, Plunger | No Marking | Green | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-04Q-01SWITCH PUSH SPST-NO 0.01A 35V |
4,263 |
|
Datasheet | KS, LAMB | Bulk | Obsolete | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
KS-04Q-03SWITCH PUSH SPST-NO 0.01A 35V |
1,452 |
|
Datasheet | KS, LAMB | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 35 V | Round, Button, Flush | No Marking | Green | - | - | PC Pin | - | - | - | -20°C ~ 85°C |
|
PV1C240SSSWITCH PUSHBUTTON SPST-NO 2A 48V |
2,084 |
|
Datasheet | PV1, LAMB | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | No Marking | Silver | - | - | Solder, Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 19.00mm Dia | -20°C ~ 55°C |
|

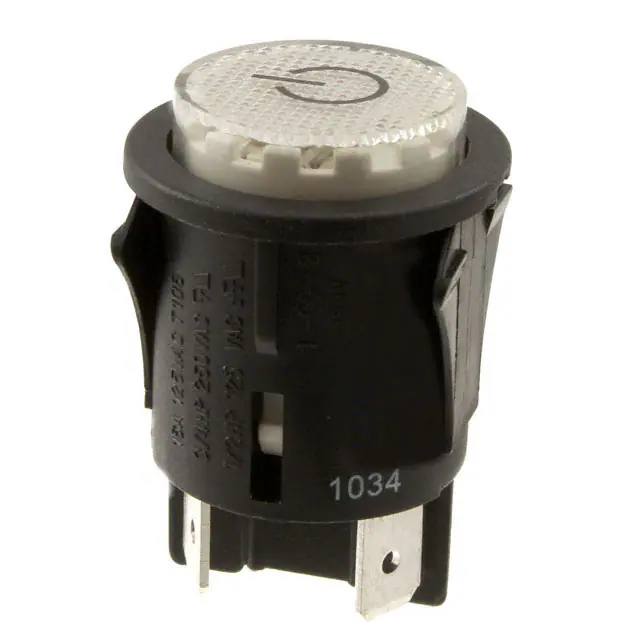

PR142C1011-107SWITCH PUSHBUTTON DPST 16A 125V |
3,528 |
|
- |
PR1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | Standard, Illuminated | DPST | Off-On | 16A (AC) | 125 V | - | Round, Button | No Marking | Clear | Neon, Clear | 250 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Circular - 25.00mm Dia | -20°C ~ 105°C |
