Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NP8S2T203QESWITCH PUSHBUTTON SPDT 5A 32V |
123 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
NP8S2L203QESWITCH PUSHBUTTON SPDT 5A 32V |
182 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PN11SBNA03QESWITCH PUSH SPDT 0.2A 30V |
4,050 |
|
Datasheet | PN | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
D6F90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
4,931 |
|
Datasheet | D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Round, Button, Flush | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

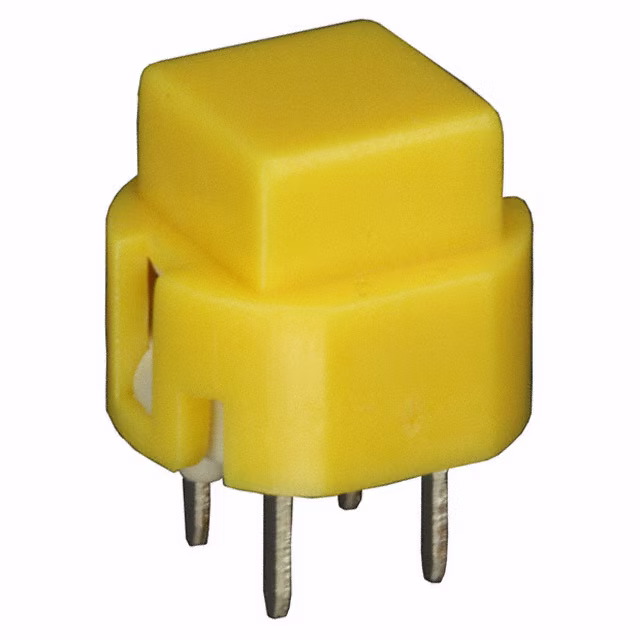

D6C30 F1 LFSSWITCH PUSH SPST-NO 0.1A 32V |
6,509 |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Yellow | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

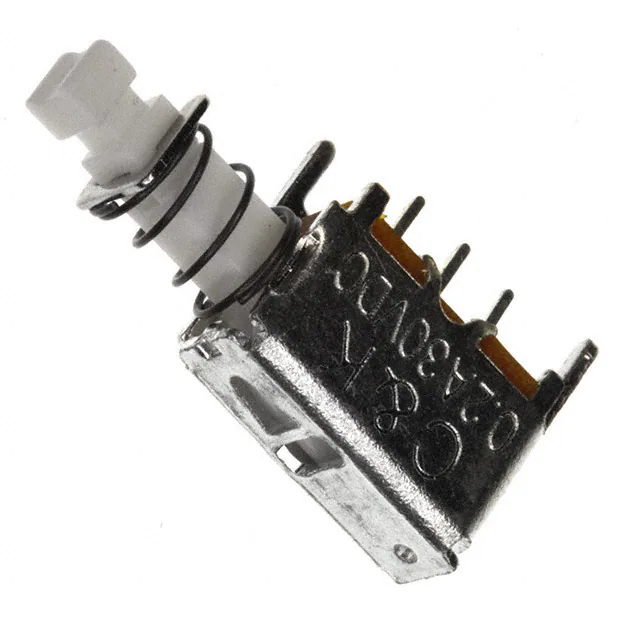

PN11SHSA03QESWITCH PUSH SPDT 0.2A 30V |
540 |
|
Datasheet | PN | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN12SHSA03QESWITCH PUSH SPDT 0.2A 30V |
2,109 |
|
Datasheet | PN | Bag | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PS-12C02-F NSSWITCH PUSH SPST-NO 10MA 5V |
813 |
|
Datasheet | PS, COMAX | Bulk | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Rectangular, Button | No Marking | - | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
D6C00 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
2,178 |
|
Datasheet | D6 | Tray | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|

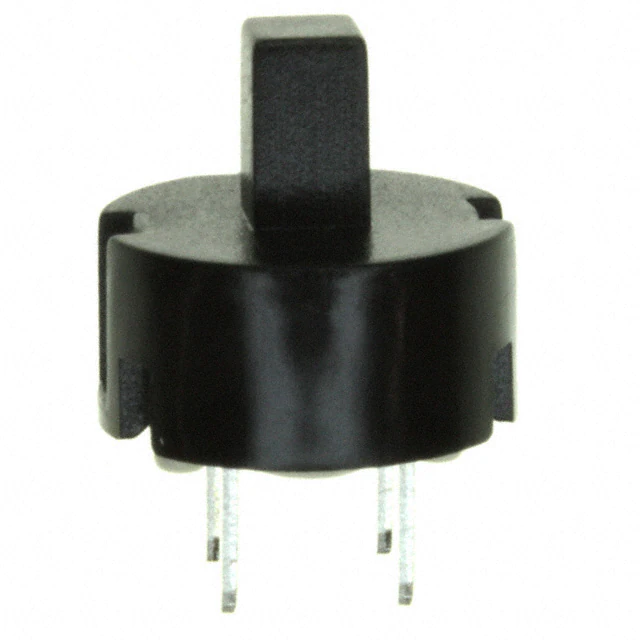

D6L90 F2 LFSSWITCH PUSH SPST-NO 0.1A 32V |
3,031 |
|
Datasheet | D6 | Bulk | Active | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
