Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

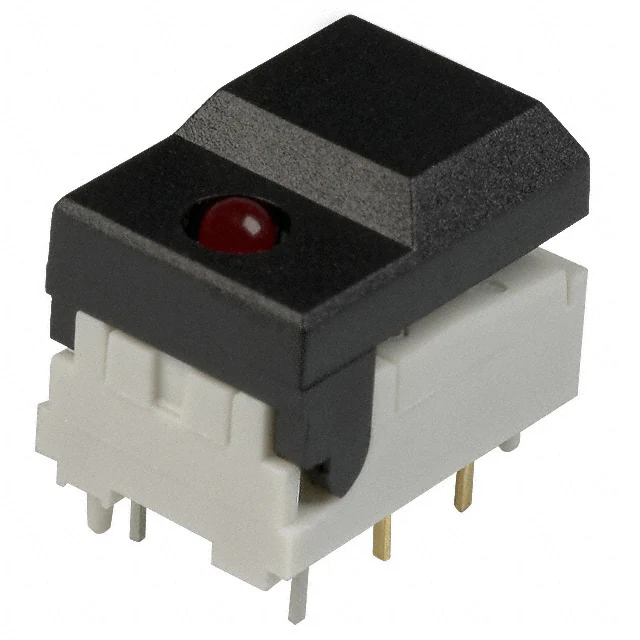

SERL BK RD 7.62 AU OASWITCH PUSH SPDT 0.01A 24V |
131 |
|
Datasheet | DIGITAST | Tray | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

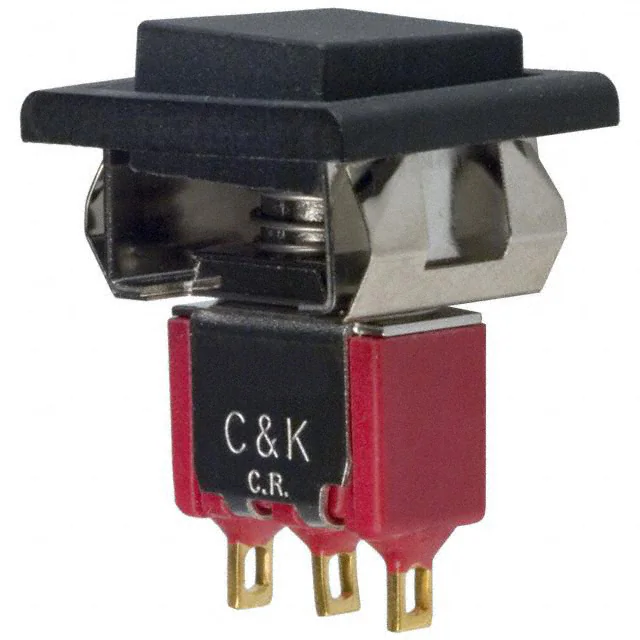

8125J81ZBE22SWITCH PUSH SPDT 0.4VA 20V |
151 |
|
Datasheet | 8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
8732S1HZBESWITCH PUSH SPST-NO 0.4VA 20V |
168 |
|
Datasheet | 8700 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Overtravel | Circular - 8.08mm Dia | -30°C ~ 65°C |
|

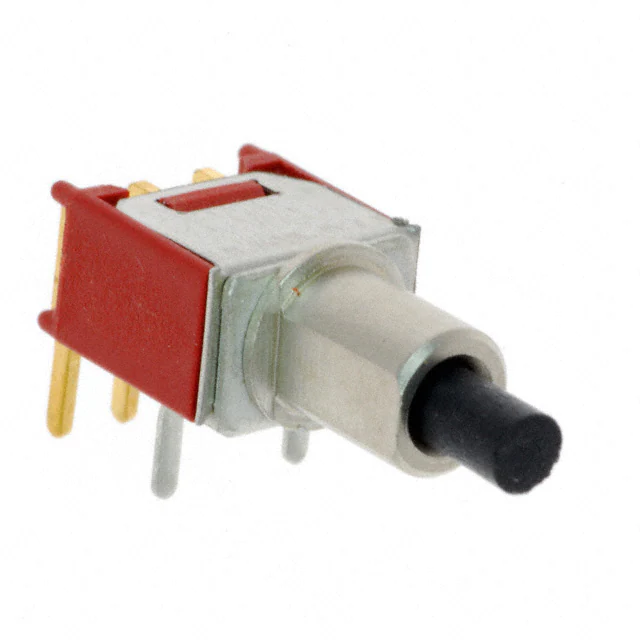

TP12SH9ABESWITCH PUSH SPDT 0.4VA 20V |
1,060 |
|
Datasheet | TP | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
PLP16C1SQ3SA4MOMENTARY, SQUARE, IP40, NON-ILL |
187 |
|
Datasheet | PLP16 | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 3A (AC), 1A (DC) | 250 V | 30 V | Square, Button | No Marking | Red | - | - | Solder Lug | IP40 | - | Circular - 16.20mm Dia | -25°C ~ 55°C |
|

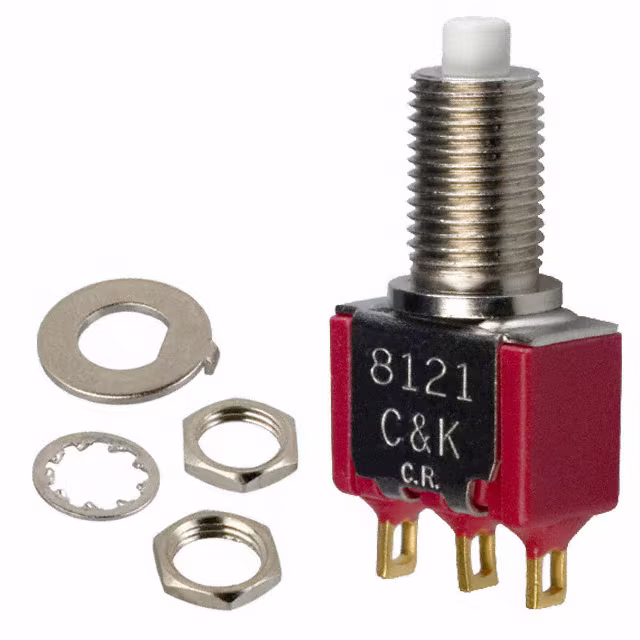

8121LY4ZGESWITCH PUSHBUTTON SPDT 1A 120V |
101 |
|
Datasheet | 8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

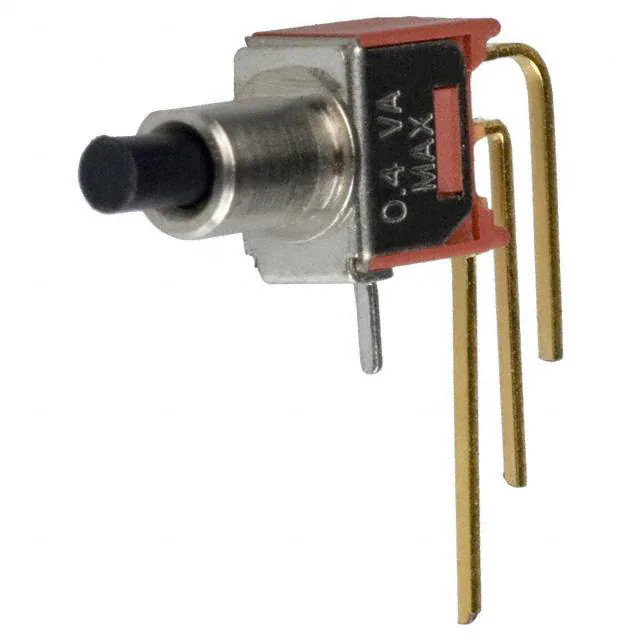

TP12SH9AVBESWITCH PUSH SPDT 0.4VA 20V |
153 |
|
Datasheet | TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
|
NP8E2D203QESWITCH PUSHBUTTON SPDT 5A 28V |
1,293 |
|
Datasheet | NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
AP4D300SZBESWITCH PUSH SPST-NO 0.125A 125V |
152 |
|
Datasheet | AP | Tray | Active | Panel Mount, Snap-In | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|
8121SHCGESWITCH PUSHBUTTON SPDT 1A 120V |
1,026 |
|
Datasheet | 8020 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
