Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPA11FGRA2SWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,445 |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
TSPD11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
4,111 |
|
Datasheet | TSP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|

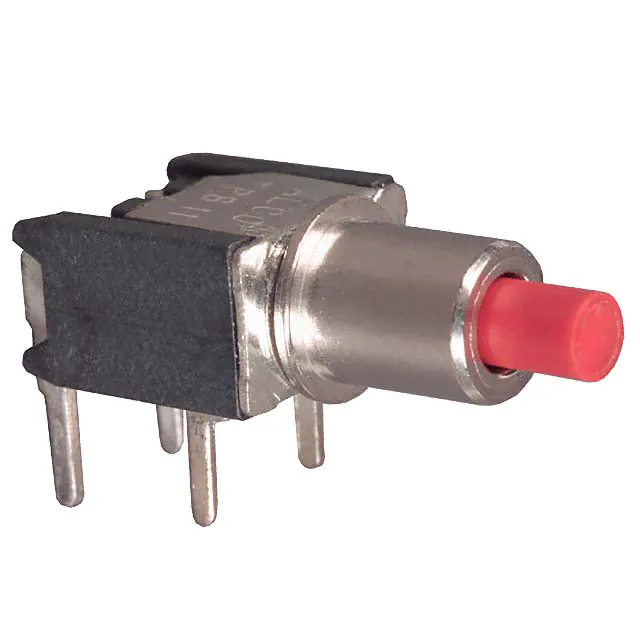

TPB11CGRA2SWITCH PUSH SPST-NO 0.4VA 20V |
1,219 |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
MSPF101BSWITCH PUSH SPST-NC 500MA 125V |
4,766 |
|
Datasheet | MSPF | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 11.80mm Dia | -20°C ~ 80°C |
|
TPA11FGRA0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
3,170 |
|
Datasheet | TP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|

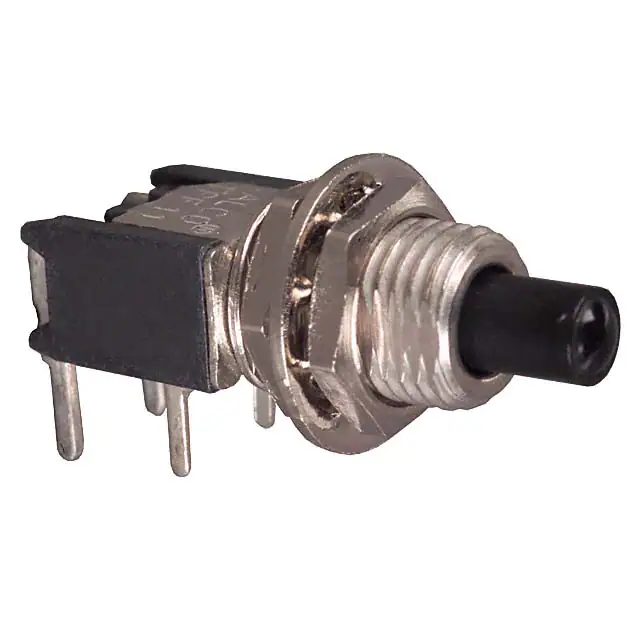

TPF11CGRA0SWITCH PUSH SPST-NO 0.4VA 20V |
4,556 |
|
Datasheet | TP | Bulk | Obsolete | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
MSPS103C0SWITCH PUSH SPST-NO 500MA 125V |
1,212 |
|
Datasheet | MSPS | Bulk | Obsolete | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 500mA (AC) | 125 V | - | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | Circular - 6.35mm Dia | -20°C ~ 80°C |
|
TP11FGPC0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
4,313 |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Rectangular, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
|
|
TSPD11FGRA0SWITCH PUSHBUTTON SPDT 0.4VA 20V |
4,928 |
|
Datasheet | TSP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C |
|
|
TPA11FGPC2SWITCH PUSHBUTTON SPDT 0.4VA 20V |
2,702 |
|
Datasheet | TP | Bulk | Obsolete | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Red | - | - | PC Pin | - | - | - | -30°C ~ 65°C |
