Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

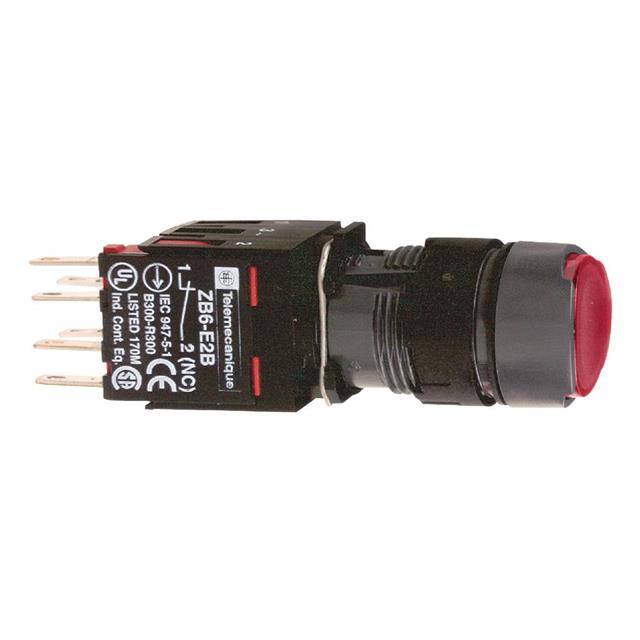

XB6AF4B2BCOMPLETE ILLUMINATED PUSH BUTTON |
1,911 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

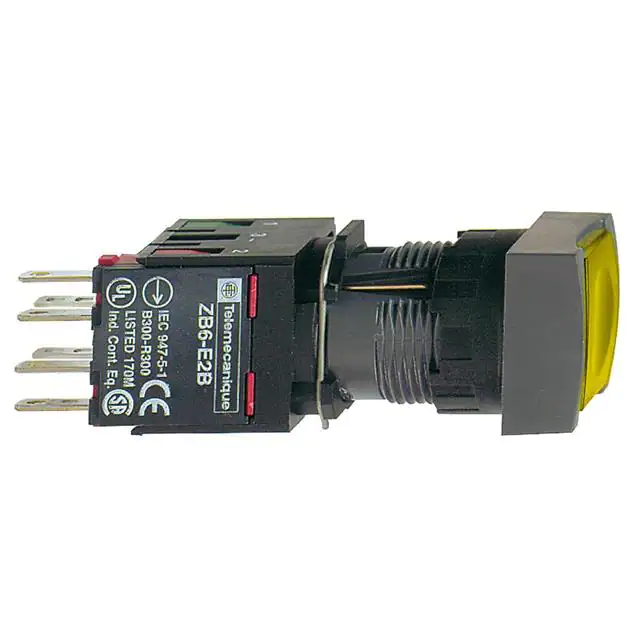

XB6CF5B1BCOMPLETE ILLUMINATED PUSH BUTTON |
1,731 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

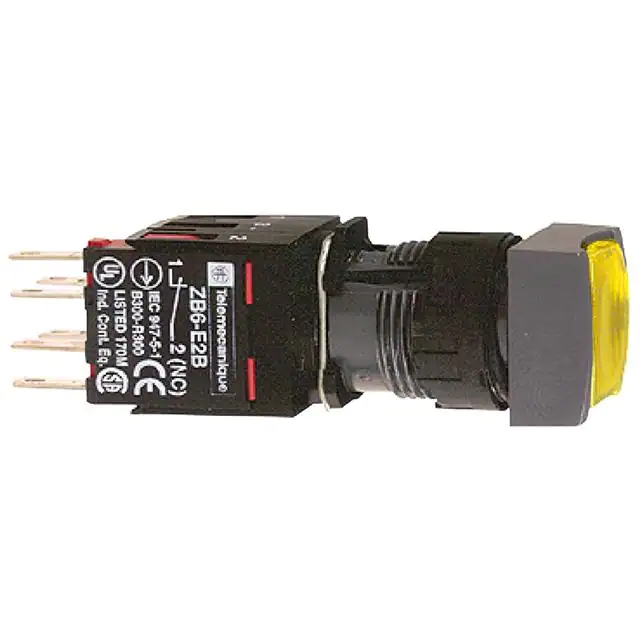

XB6CW5B1BCOMPLETE ILLUMINATED PUSH BUTTON |
4,000 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Square, Button | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AW5B1BCOMPLETE ILLUMINATED PUSH BUTTON |
3,781 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6DF5B1BCOMPLETE ILLUMINATED PUSH BUTTON |
1,903 |
|
Datasheet | Harmony XB6 | Box | Obsolete | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Yellow | LED, Yellow | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6DF3B1BCOMPLETE ILLUMINATED PUSH BUTTON |
1,176 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

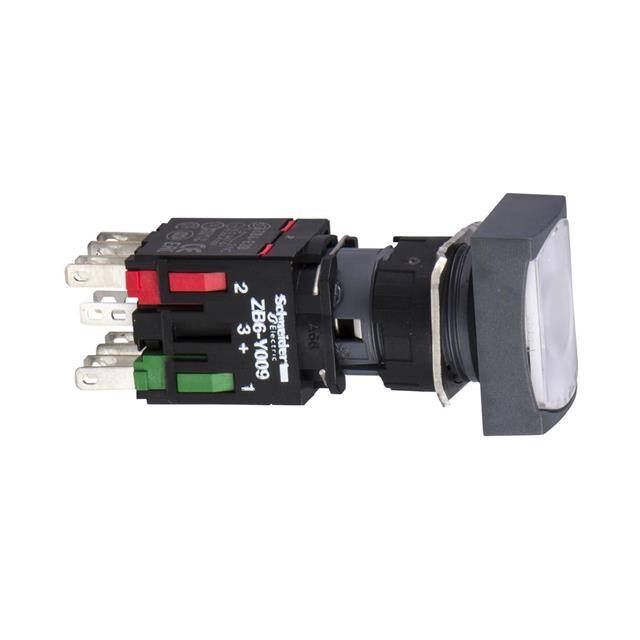

XB6DW1B1BCOMPLETE ILLUMINATED PUSH BUTTON |
3,168 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | White | LED, White | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|

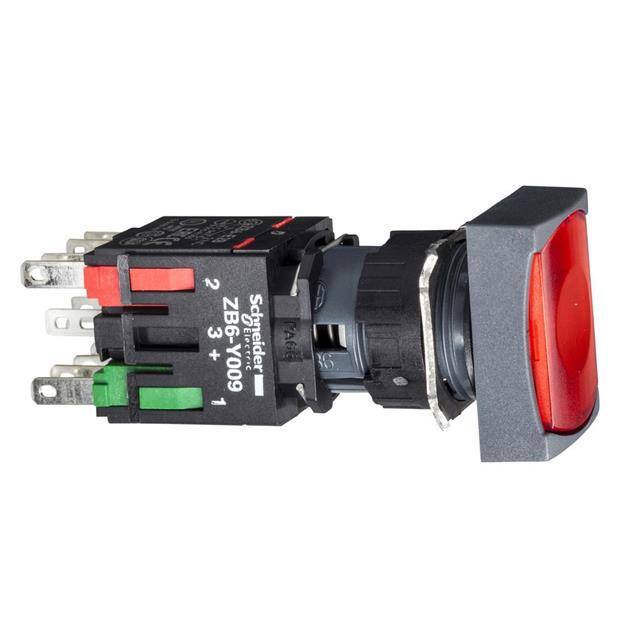

XB6DW4B2BCOMPLETE ILLUMINATED PUSH BUTTON |
3,315 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NC | Off-On | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Red | LED, Red | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
XB6DW3B1BCOMPLETE ILLUMINATED PUSH BUTTON |
2,070 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Green | LED, Green | 12 VDC | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
XB6AW4B1BPUSHBUTTON 240VAC 1.5AMP XB6 +OP |
3,407 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard | - | - | 1.5A (AC) | 240 V | - | Round, Button, Flush | - | Red | LED, Red | 24 VAC | Quick Connect | - | - | Circular - 16.00mm Dia | - |
