Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XB4BL41RED PROJECTING PUSHBUTTON 1NO SC |
3,745 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
XB4BA921MANUAL OVERLOAD RESET PUSH BUTTO |
2,800 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Black | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

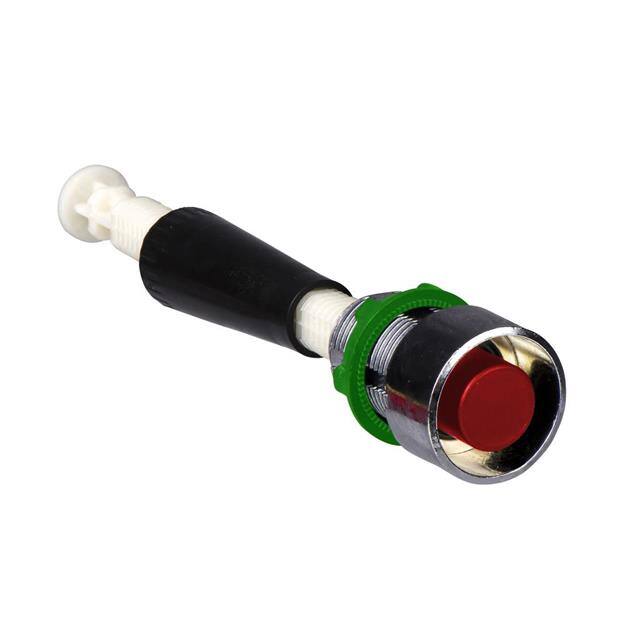

XB4BA941HARMONY XB4, PUSH BUTTON RESET, |
3,724 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB4FA51FLUSH PB YW 1NO |
4,620 |
|
Datasheet | Harmony XB4 | Box | Obsolete | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
|
|
XB5AA841PUSH BUTTON OPERATOR 22MM XB5B S |
3,314 |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard | - | - | - | - | - | Round, Button, Flush | - | Red | - | - | - | IP66 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

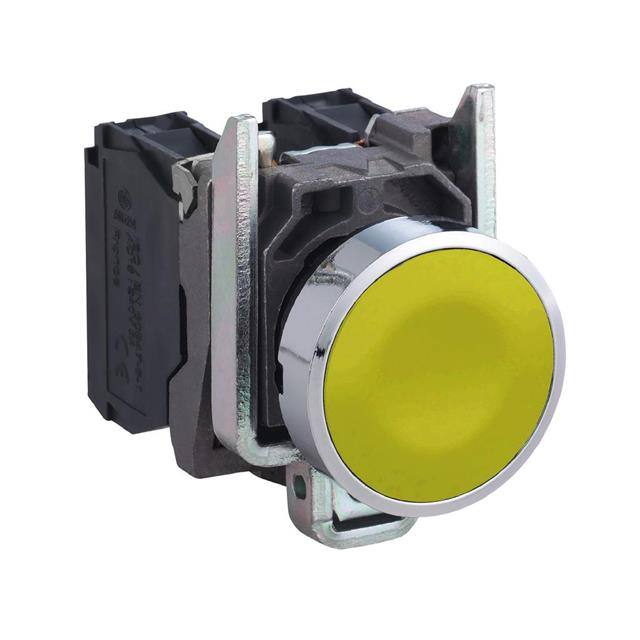

XB4BA55PUSH BUTTON, HARMONY XB4, 22 MM |
2,965 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|

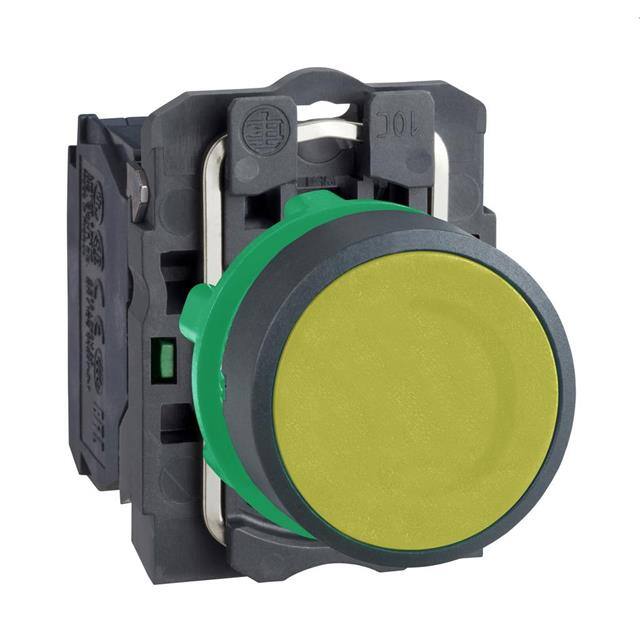

XB5AA51HARMONY XB5, PUSH BUTTON, PLASTI |
1,278 |
|
Datasheet | Harmony XB5 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Yellow | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 22.00mm Dia | -40°C ~ 70°C |
|
|
XB7NL45PB - PROJ SPRING RTN, RED -NO+NC |
2,265 |
|
Datasheet | Harmony XB7 | Box | Active | Panel Mount, Front | Standard | DPST-NO/NC | On-Off, Off-On | 600mA (AC), 220mA (DC) | 120 V | 125 V | Round, Button | - | Red | - | - | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -25°C ~ 70°C |
|
XB6DA61BCOMPLETE PUSH BUTTON, HARMONY XB |
1,754 |
|
Datasheet | Harmony XB6 | Box | Active | Panel Mount, Front | Standard | SPST-NO | On-Off | 3A (AC), 220mA (DC) | 120 V | 125 V | Rectangular, Button, Flush | - | Blue | - | - | Quick Connect - 0.110" (2.8mm) | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -25°C ~ 70°C |
|
|
XB4FA21FLUSH PB BK 1NO |
2,146 |
|
Datasheet | Harmony XB4 | Box | Active | Panel Mount, Front | Standard | SPST-NO | Off-On | 6A (AC), 550mA (DC) | 120 V | 125 V | Round, Button, Flush | - | Black | - | - | Screw Terminal | IP66/IP67/IP69/IP69K - Dust Tight, Water Resistant, Waterproof | - | Circular - 30.50mm Dia | -40°C ~ 70°C |
