Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML22CBF2ACSWITCH PUSHBUTTON DPDT 3A 125V |
1,452 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
2PB11-T2SWITCH PUSH 2XSPDT 5A 250V |
4,596 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Black | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
AML21FBA2AASWITCH PUSHBUTTON SPDT 3A 125V |
1,626 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|

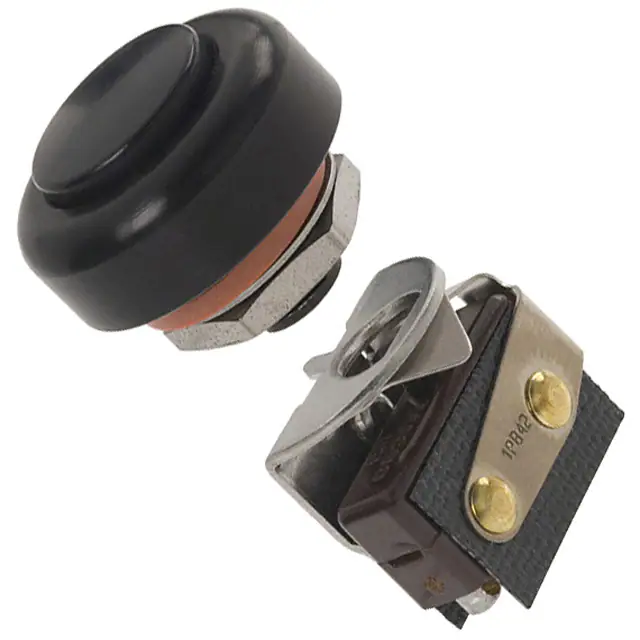

1PB42SWITCH PUSHBUTTON SPDT 5A 250V |
4,703 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | - | - | - |
|

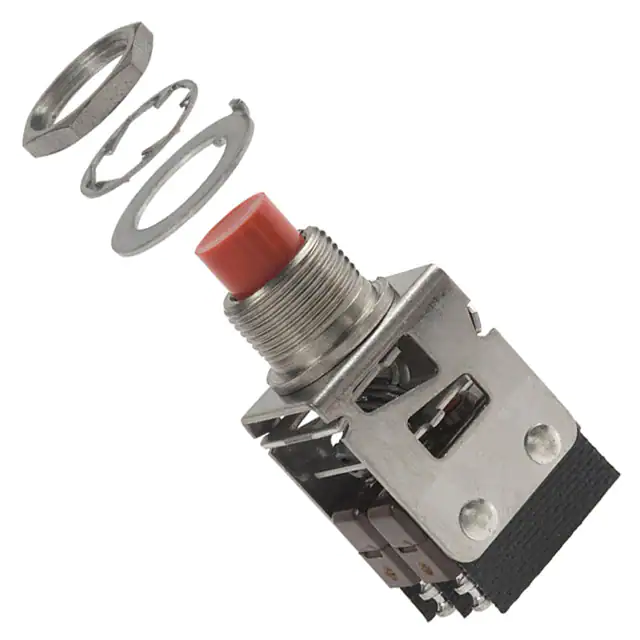

2PB12-T2SWITCH PUSH 2XSPDT 5A 250V |
3,552 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Red | - | - | Solder Turret | - | - | - | -55°C ~ 85°C |
|
AML21EBA2ADSWITCH PUSHBUTTON DPDT 3A 125V |
2,877 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML22CBM2ADSWITCH PUSHBUTTON DPDT 3A 125V |
2,675 |
|
Datasheet | AML22 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21GBE2ADSWITCH PUSHBUTTON DPDT 3A 125V |
2,687 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
PB-12022UNSEALED OI-PB SWITCH |
3,871 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PB-12823UNSEALED OI-PB SWITCH |
1,629 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
