Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML21FBE2AASWITCH PUSHBUTTON SPDT 3A 125V |
4,672 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Rectangular, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
AML21BBA2ACSWITCH PUSHBUTTON DPDT 3A 125V |
2,368 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21CBA3ACSWITCH PUSHBUTTON DPDT 3A 125V |
100 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | - | PC Pin | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21CBE2ACSWITCH PUSHBUTTON DPDT 3A 125V |
2,461 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | Incandescent | 28 VAC | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|

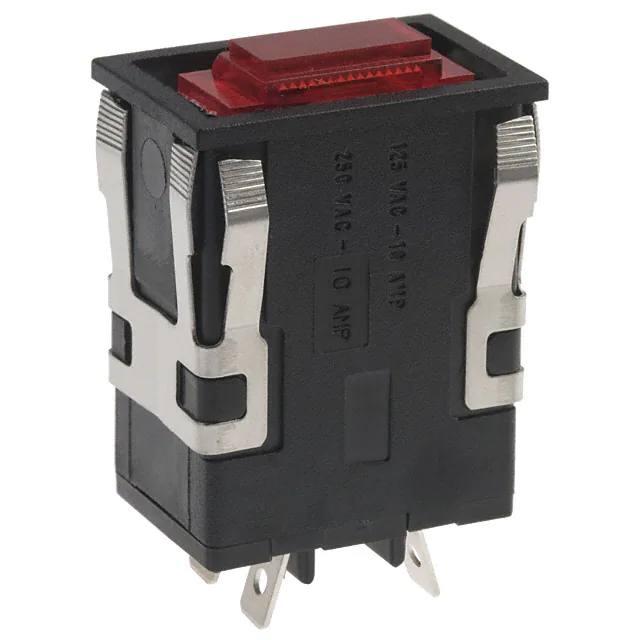

AML32FBB7ADSWITCH PUSH DPST-NO 10A 125V |
1,904 |
|
Datasheet | AML32 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | DPST-NO (DM) | Off-On | 10A (AC/DC) | 125 V | 30 V | Rectangular, Button (Not Included) | No Marking | - | Neon, Red | 125 VAC | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 29.00mm x 19.00mm | - |
|

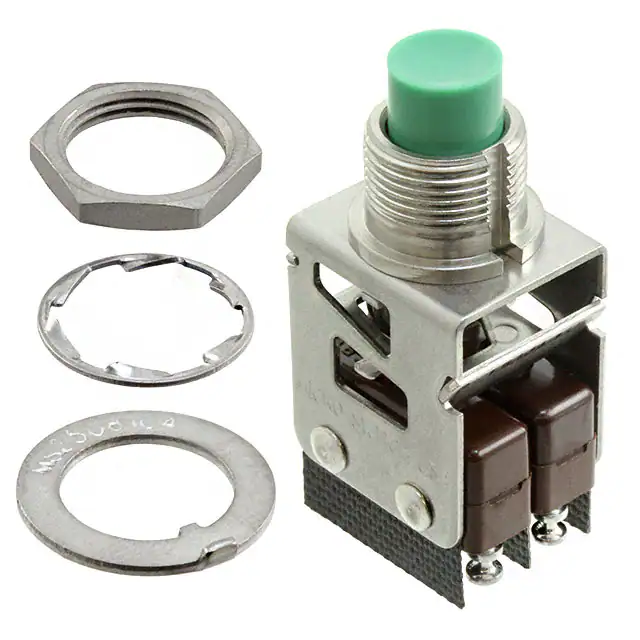

2PB273-T2SWITCH PUSH SPDTX2 5A 250V |
2,155 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Rear | Standard | SPDT x 2 | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Plunger | No Marking | Green | - | - | Solder Turret | - | - | - | - |
|

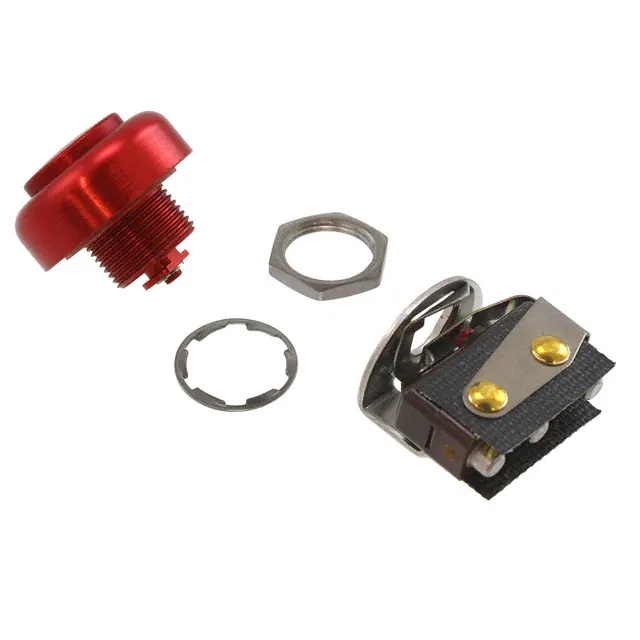

1PB43SWITCH PUSHBUTTON SPDT 5A 250V |
4,871 |
|
Datasheet | PB | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round, Button | No Marking | Red | - | - | Solder Lug | - | - | - | - |
|
|
AML21BBA2BASWITCH PUSHBUTTON SPDT 0.1A 125V |
3,720 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
|
AML21EBA2BASWITCH PUSHBUTTON SPDT 0.1A 125V |
1,068 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 125 V | Rectangular, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Rectangular - 28.98mm x 19.05mm | - |
|
|
AML21BBA2ADSWITCH PUSHBUTTON DPDT 3A 125V |
1,731 |
|
Datasheet | AML21 | Bulk | Active | Panel Mount, Snap-In | Standard | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Square, Button (Not Included) | No Marking | - | - | - | Solder, Quick Connect - 0.110" (2.8mm) | - | - | Square - 19.05mm x 19.05mm | - |
