Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCSAAV2.5MDAA5SENSOR 0.04PSID 0.19" 4.5V 4SIP |
3,818 |
|
Datasheet | TruStability® HSC | 4-SIP, Dual Ports, Opposite Sides | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±9.79PSI (±67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
SSCSNBN001NDAA5SENSOR 0.04PSID 0.19" 4.5V 4SIP |
2,808 |
|
Datasheet | TruStability® SSC | 4-SIP, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Differential | ±0.04PSI (±0.25kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.95V ~ 5.05V | Male - 0.19" (4.8mm) Tube, Dual | Barbless | Amplified Output, Temperature Compensated | PC Pin | ±9.76PSI (±67.27kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
20 INCH-D-MVSENSOR 0.72PSID 0.19" .02V |
1,589 |
|
Datasheet | ADCX | 6-SIP Module | Tube | Active | Board Mount | Differential | 0.72PSI (4.98kPa) | Wheatstone Bridge | 0 mV ~ 20 mV (12V) | ±0.25% | 16V | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 7.23PSI (49.83kPa) | -25°C ~ 85°C | - | - | Through Hole | - |
|

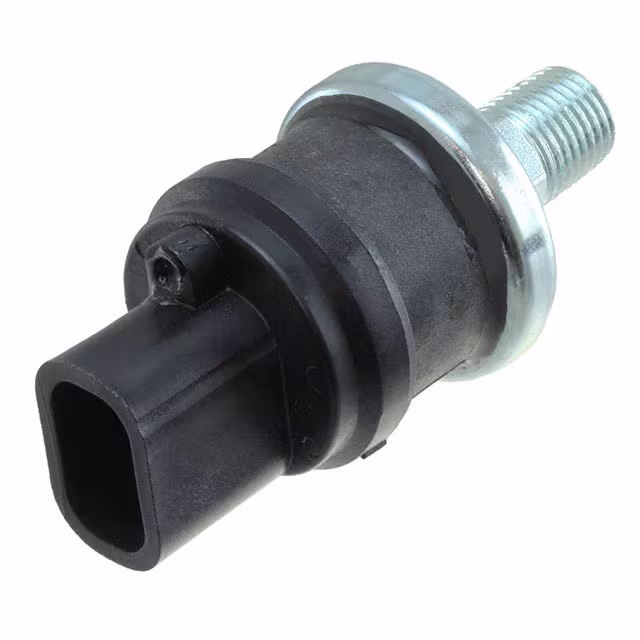

81598-00000040-21PRESSURE SWITCH |
2,520 |
|
- |
* | - | Bulk | Active | Board Mount | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P992-10-CSENSOR 0.36PSI 4V |
2,833 |
|
Datasheet | - | 2-SIP Module | Bulk | Active | Board Mount | Differential | 0.36PSI (2.49kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
P992-1-CSENSOR 0.04PSI 4V |
1,607 |
|
Datasheet | - | 2-SIP Module | Bulk | Active | Board Mount | Differential | 0.04PSI (0.25kPa) | Analog Voltage | 0.25 V ~ 4 V | - | - | - | - | Temperature Compensated | PC Pin | - | -10°C ~ 60°C | - | - | Through Hole | - |
|
50087342-05PRESSURE SWITCHES-TRANS PRESSURE |
2,536 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
50075335-05PRESSURE SWITCHES-TRANS PRESSURE |
2,859 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
26PCBFK2GSENSOR 5PSIC 0.2" .05V |
1,689 |
|
Datasheet | 26PC | 4-DIP Module | Bulk | Active | Board Mount | Compound | ±5PSI (±34.47kPa) | Wheatstone Bridge | 0 mV ~ 50 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube | Barbless | Temperature Compensated | - | ±20PSI (±137.9kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
77040-00000080-21PRESSURE SWITCHES-TRANS PRESSURE |
2,866 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
77040-00000120-21PRESSURE SWITCHES-TRANS PRESSURE |
4,266 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9677010950SENSOR 14.5PSI M14X1.5 4.5V |
3,732 |
|
Datasheet | - | Cylinder, Threaded | Bulk | Active | - | - | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | - | - | Male - M14 x 1.5 | Threaded | - | Connector | - | -40°C ~ 125°C | - | - | - | - |
|
NPI-19B-201GHSENSOR 29.01PSIG 1/2" 0.1V |
4,860 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 58.02PSI (400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-701GHSENSOR 101.53PSIG 1/2" 0.1V |
4,108 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 101.53PSI (700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 203.05PSI (1400kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-172GHSENSOR 246.56PSIG 1/2" 0.1V |
4,957 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 246.56PSI (1700kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | - | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 500PSI (3447.38kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-015GVSENSOR 15PSIG 1/2" 0.1V |
3,465 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 30PSI (206.84kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-030GVSENSOR 30PSIG 1/2" 0.1V |
1,452 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 60PSI (413.69kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-050GVSENSOR 50PSIG 1/2" 0.1V |
3,865 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 100PSI (689.48kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-100GVSENSOR 100PSIG 1/2" 0.1V |
1,968 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 200PSI (1378.95kPa) | -40°C ~ 125°C | - | - | - | - |
|
|
NPI-19B-200GVSENSOR 200PSIG 1/2" 0.1V |
1,249 |
|
Datasheet | NPI-19 | Cylinder | Bulk | Active | Board Mount | Vented Gauge | 200PSI (1378.95kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.25% | 10V | Male - 1/2" (12.7mm) UNF | Threaded | Temperature Compensated | Flex Cable | 400PSI (2757.9kPa) | -40°C ~ 125°C | - | - | - | - |
