Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
89DL-036G-99P00 ~ 2.5barg PCB mountable |
1,194 |
|
Datasheet | 89 | 6-DIP | Tube | Active | Board Mount | Gauge | 36PSI (248.21kPa) | SPI | 16 b | ±1.5% | 3.3V | Male - 0.33" (8.4mm) Tube | Barbed | Temperature Compensated | PCB | 108PSI (744.63kPa) | -20°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
PEWA3403[0...1.6]MPa-V1EB2C20~1.6MPa; water; w cable |
3,540 |
|
Datasheet | PEWA3403 | Cylinder, Metal | Retail Package | Active | Industrial | Gauge | 232.06PSI (1600kPa) | Analog Current | 4 mA ~ 20 mA | 1% | 24V | Male - 1/4" (6.35mm) G | Threaded | Amplified Output, Temperature Compensated | Cable 0.5m | 464.12PSI (3200kPa) | 0°C ~ 70°C | - | - | - | - |
|
|
85A-200D-321P+/-20mbar, PTC |
1,119 |
|
Datasheet | 85 | Cylinder, Threaded - M12 | Can | Active | Industrial | Differential | -0.29PSI ~ 0.29PSI (-2kPa ~ 2kPa) | Analog Voltage | 0.5V ~ 4.5V | ±0.5% | 5V | - | - | Temperature Compensated | M12x1, 5 Pin | ±0.87PSI (±6kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
85A-500D-2A12+/-50mbar, barb, Parylene coat |
1,976 |
|
Datasheet | 85 | Cylinder, Threaded - M12 | Can | Active | Industrial | Differential | -0.72PSI ~ 0.72PSI (-4.98kPa ~ 4.98kPa) | Analog Voltage | 0.5V ~ 4.5V | ±0.5% | 5V | - | Barbed | Temperature Compensated | M12x1, 5 Pin | ±2.17PSI (±15kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
85A-102D-321P+/-1000mbar, PTC |
1,522 |
|
Datasheet | 85 | Cylinder, Threaded - M12 | Can | Active | Industrial | Differential | -14.5PSI ~ 14.5PSI (-100kPa ~ 100kPa) | Analog Voltage | 0.5V ~ 4.5V | ±0.5% | 5V | - | - | Temperature Compensated | M12x1, 5 Pin | ±43.51PSI (±300kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
85A-L50I-34X20-5MBAR, PTC, PARYLENE COAT |
4,683 |
|
Datasheet | 85 | Cylinder, Threaded - M12 | Can | Active | Industrial | Vacuum | -0.072 ~ 0PSI (-0.50kPa ~ 0kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 5V | - | - | Temperature Compensated | M12x1, 5 Pin | -0.21PSI ~ 0PSI (-1.5kPa ~ 0kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
85A-102I-34X10-1000MBAR, PTC, FULL GEL COAT |
1,852 |
|
Datasheet | 85 | Cylinder, Threaded - M12 | Can | Active | Industrial | Vacuum | -14.5PSI ~ 0PSI (-100kPa ~ 0kPa) | Analog Current | 4 ~ 20 mA | ±0.5% | 5V | - | - | Temperature Compensated | M12x1, 5 Pin | -43.51PSI ~ 0PSI (-300kPa ~ 0kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86A-101BG-72100100MBAR, CERAMIC CELL |
2,209 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - G1/8" (3.18mm) | Threaded | Temperature Compensated | Wire Leads with Connector | 4.35PSI (30kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86A-702BG-721007000MBAR, CERAMIC CELL |
4,492 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 101.53PSI (700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - G1/8" (3.18mm) | Threaded | Temperature Compensated | Wire Leads with Connector | 304.58PSI (2100kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86A-402BG-521004000MBAR, CERAMIC CELL |
2,833 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 58.02PSI (400kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | - | Threaded | Temperature Compensated | Wire Leads with Connector | 174.05PSI (1200kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86A-102BG-721001000MBAR, CERAMIC CELL |
3,691 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.5% | 5V | Male - G1/8" (3.18mm) | Threaded | Temperature Compensated | Wire Leads with Connector | 43.51PSI (300kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86DL-020KG-7810020BAR, CERAMIC CELL |
4,954 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 290.08PSI (2000kPa) | Digital - I2C | 16b | ±0.5% | 3.3V | Male - G1/8" (3.18mm) | Threaded | Temperature Compensated | Wire Leads with Connector | 870.23PSI (6000kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
86DL-201BG-58100200MBAR, CERAMIC CELL |
4,699 |
|
Datasheet | 86 | Cylinder, Metal | Can | Active | Industrial | Gauge | 2.9PSI (20kPa) | Digital - I2C | 16b | ±0.5% | 3.3V | - | Threaded | Temperature Compensated | Wire Leads with Connector | 8.70PSI (60kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
PBM220-A14NDRAbs. pressure sensor 1.4MPa 3V |
3,635 |
|
Datasheet | PBM220 | 4-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 0PSI ~ 203PSI (0kPa ~ 1400kPa) | I2C, SPI | 24 b | ±20hPa | 1.7V ~ 5.5V | - | No Port | Temperature Compensated | Surface Mount (SMD,SMT) | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
PBM230-A11KDRAbs. pressure sensor 1100hPa 3V |
3,077 |
|
Datasheet | PBM230 | 4-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 0PSI ~ 16PSI (0kPa ~ 110kPa) | I2C | 24 b | ±0.5hPa | 1.7V ~ 5.5V | - | No Port | Temperature Compensated | Surface Mount (SMD,SMT) | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|
|
PBM220-A11KDRAbs. pressure sensor 1100hPa 3V |
3,480 |
|
Datasheet | PBM220 | 4-SMD Module | Tape & Reel (TR) | Active | Board Mount | Absolute | 0PSI ~ 16PSI (0kPa ~ 110kPa) | I2C, SPI | 24 b | ±0.5hPa | 1.7V ~ 5.5V | - | No Port | Temperature Compensated | Surface Mount (SMD,SMT) | 435.11PSI (3000kPa) | -40°C ~ 85°C | - | - | Surface Mount | - |
|

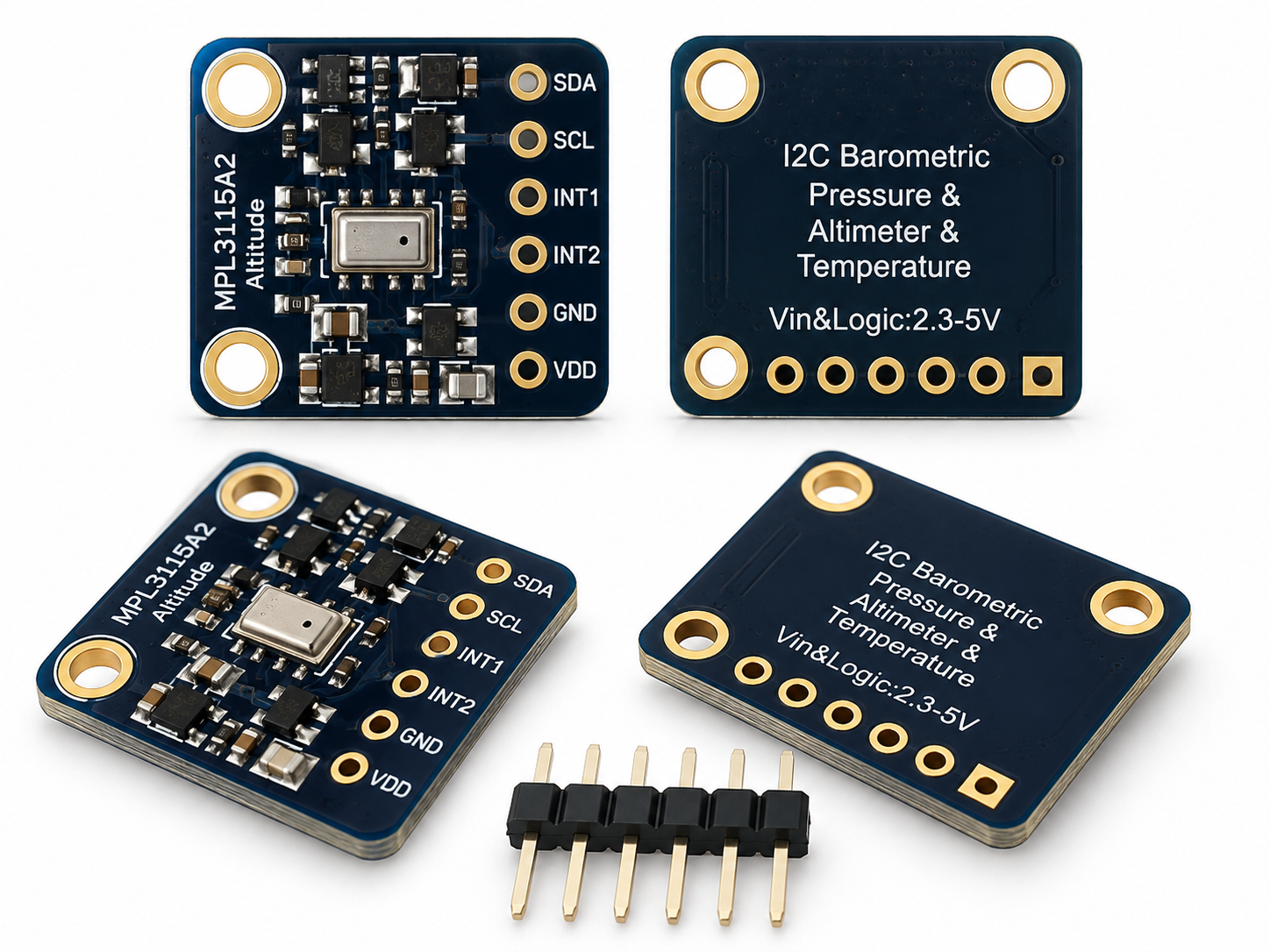

MCU-3115 MPL3115A2 ModuleMCU-3115 is a breakout module based on the MPL3115A2 precision I2C pressure sensor, providing barometric pressure, altitude and temperature data with interrupt outputs and a board marked for 2.3–5V Vin and logic. |
9,999 |
|
Datasheet | MCU-3115 | Pressure Sensor Breakout Module | Anti-Static Bag | Market Available (Core Sensor Discontinued) | Barometric Pressure, Altimeter, Weather Station, IoT, Navigation, Environmental Monitoring | Absolute | 20 kPa to 110 kPa | Digital | I2C, 20-Bit Pressure/Altitude, 12-Bit Temperature | ±0.4 kPa Absolute | 2.3V to 5V (Module) | N/A | Exposed MEMS Pressure Port | Barometer, Altimeter, Temperature Sensor, I2C, INT1/INT2, 32-Sample FIFO | 6-Pin Through-Hole Header | 500 kPa (Absolute Maximum, Sensor) | -40°C to +85°C | Standard / General Purpose | N/A | Through-Hole / Module | Breakout Module with MPL3115A2 LGA Sensor |
|

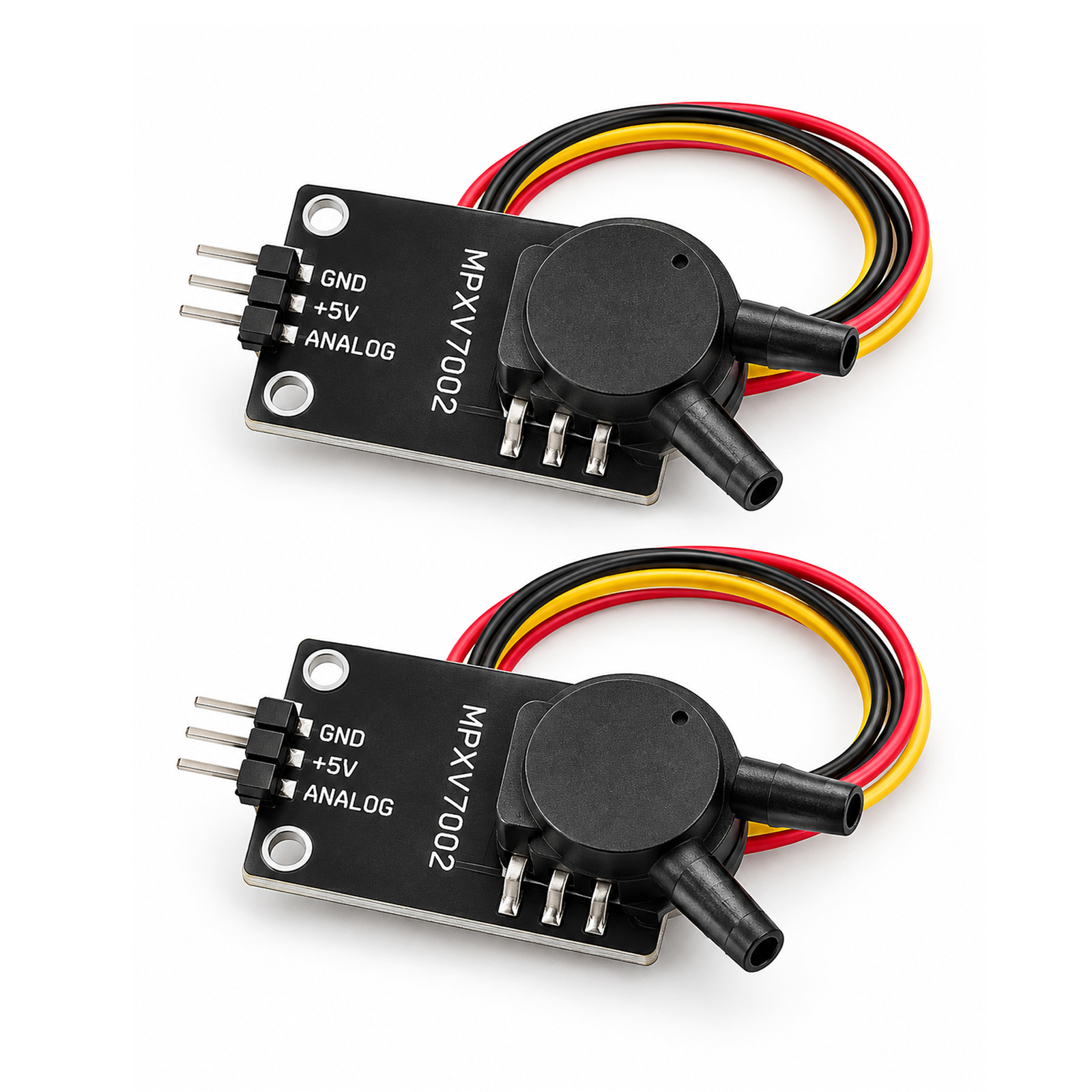

MPXV7002DP Differential Pressure SensoMPXV7002DP is a ±2kPa differential pressure sensor with 5V operation, 0.5–4.5V analog output, 1V/kPa sensitivity and temperature compensation, suitable for HVAC, respiratory, airflow and low-pressure measurement. |
9,999 |
|
Datasheet | MPXV7002 | Breakout Module with MPXV7002DP SO8 Sensor | Anti-Static Bag | Active | HVAC, Airflow, Respiratory, Medical Equipment, Process Control, Low Differential Pressure Measurement | Differential | -2 kPa to +2 kPa | Analog Voltage | Approx. 0.5V to 4.5V @ 5V Supply | ±2.5% VFSS Typ, ±6.25% Max | 4.75V to 5.25V | N/A | Dual Pressure Ports | Temperature Compensated, Calibrated, Ratiometric Output, 1V/kPa Sensitivity, 1ms Response | 3-Pin Header (GND / 5V / ANALOG) | 75 kPa (Absolute Maximum) | +10°C to +60°C | Standard / General Purpose | RoHS / Ecopack1 | Through-Hole Module / Breakout Board | SO8S 12.06×12.06 mm, 8-Lead Sensor |
