Pressure Sensors, Transducers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Pressure Type | Operating Pressure | Output Type | Output | Accuracy | Voltage - Supply | Port Size | Port Style | Features | Termination Style | Maximum Pressure | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
26PCDFS1GSENSOR 30PSIC 0.1V |
1,420 |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±30PSI (±206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.2% | 2.5V ~ 16V | - | No Port | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
76579-B00000040-14SWITCH 7PSI SPST-NC/NO 1/8"NPT |
4,196 |
|
- |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 3.1PSI ~ 7PSI (21.37kPa ~ 48.26kPa) | SPST-NC (1) NO (1) | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Screw Terminal | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
76058-B00000250-05SWITCH 50PSI SPST-NO 1/8"NPT |
3,721 |
|
- |
5000 | Cylinder, Threaded | Bulk | Active | - | Switch | 25PSI ~ 50PSI (172.37kPa ~ 344.74kPa) | SPST-NO | - | - | - | Male - 1/8" (3.18mm) NPT | Threaded | - | Quick Connect - 0.250" (6.3mm) | 500PSI (3447.38kPa) | -40°C ~ 121°C | - | - | - | - |
|
|
200H-3-2-125/600-101Mechanical Pressure Switch |
2,852 |
|
Datasheet | 200 | Cylinder, Threaded | Case | Active | Industrial Automation | Switch | 600PSI ~ 600PSI (861.84kPa ~ 4136.85kPa) | SPDT | - | - | - | Male - 1/4" (6.35mm) NPT | Threaded | - | Deutsch, 3 Pin | 9000PSI (62052.81kPa) | -20°C ~ 80°C | - | - | - | - |
|
|
MLDX-015D-DX01-NSENSOR 15PSID 0.09" .075V 6DIP |
4,335 |
|
Datasheet | MLDX | 6-DIP (0.600", 15.24mm), Dual Ports, Same Side | Tray | Active | - | Differential | ±15PSI (±103.42kPa) | Analog Voltage | 0 mV ~ 75 mV | ±0.5% | 20V | Male - 0.09" (2.24mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | ±30PSI (±206.84kPa) | -40°C ~ 85°C | - | - | Through Hole | 6-DIP |
|
|
RSCMRRM005NGSE3SENSOR 0.18PSIG 0.08" 24BIT SMD |
1,015 |
|
Datasheet | TruStability® RSC | 8-SMD, J-Lead, Dual Ports, Same Side | Bulk | Obsolete | Board Mount | Gauge | ±0.18PSI (±1.25kPa) | SPI | 24 b | ±0.1% | 3V ~ 3.6V | Male - 0.08" (1.93mm) Tube, Dual | Barbed | Temperature Compensated | J Lead | ±4.86PSI (±33.5kPa) | -40°C ~ 85°C | - | - | Surface Mount | SMD |
|
PSS-1V-R1/8SENSOR 145.04PSI 1/8" 5V |
3,850 |
|
Datasheet | PSS | Module | Box | Active | - | - | 145.04PSI (1000kPa) | Analog Voltage | 1 V ~ 5 V | - | 12V ~ 24V | Male - 1/8" (3.18mm) R | Threaded | - | Cable Leads | 217.56PSI (1500kPa) | 0°C ~ 50°C (TA) | - | - | - | - |
|
|
PAK-S195R-RLA75 to 125 PSI pressure switch |
2,170 |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

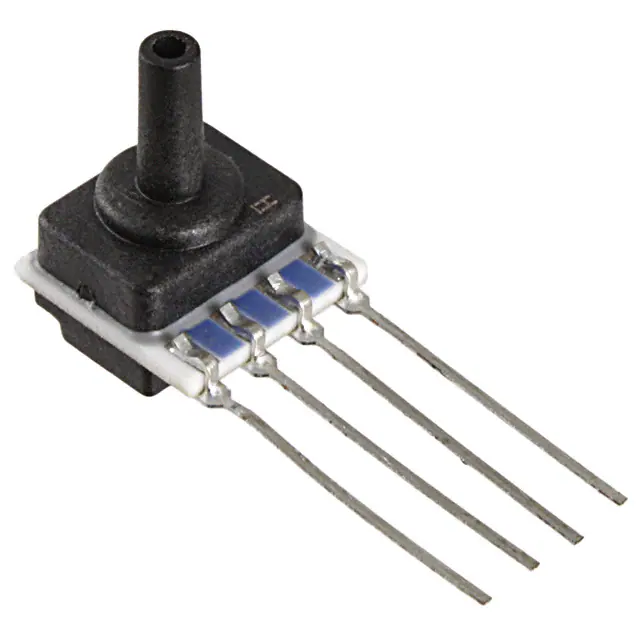

HSCSLNN004MG2A3SENSOR 0.06PSIG 0.1" 12BIT 4SIP |
4,915 |
|
Datasheet | TruStability® HSC | 4-SIP, Side Port | Bulk | Obsolete | Board Mount | Vented Gauge | 0.06PSI (0.4kPa) | I2C | 12 b | ±0.25% | 3.27V ~ 3.33V | Male - 0.1" (2.47mm) Tube | Barbless | Amplified Output, Temperature Compensated | PC Pin | 9.79PSI (67.5kPa) | -20°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
NPH-8-002.5DHSENSOR 0.36PSID 0.19" .05V TO8 |
4,553 |
|
Datasheet | NPH | TO-233AA, TO-8-3 Metal Can | Bulk | Active | Board Mount | Differential | 0.36PSI (2.5kPa) | Wheatstone Bridge | 0 mV ~ 50 mV | ±3% | - | Male - 0.19" (4.83mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 1.81PSI (12.5kPa) | -40°C ~ 125°C | - | - | Through Hole | TO-8 |
|
|
SSCDJJN006MDAA5TRUSTABILITY PRESSURE SENSOR |
2,040 |
|
- |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
26PCCNA3DSENSOR 15PSID 0.2" 0.1V 4SIP |
4,529 |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.2" (5.08mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | 4-SIP |
|
|
26PCCFJ2GSENSOR 15PSIC 0.07" 0.1V |
2,902 |
|
Datasheet | 26PC | 4-SIP Module | Bulk | Active | Board Mount | Compound | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.5% | 2.5V ~ 16V | Male - 0.07" (1.78mm) Tube | Needle | Temperature Compensated | PC Pin | ±45PSI (±310.26kPa) | -40°C ~ 85°C | - | - | Through Hole | - |
|
|
9484-015AASSY,PRES,TO-8,MDL 9484 |
2,472 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3120S-0005-G-42-10-D-N1SENSOR 5PSIG 1/4"NPT .02A |
2,244 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 5PSI (34.47kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 7.5PSI (51.71kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
3120S-0300-G-42-10-D-N1SENSOR 300PSIG 1/4"NPT .02A |
2,427 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 300PSI (2068.43kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 450PPSI (3102.64kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
3120S-0030-G-42-10-D-N1SENSOR 30PSIG 1/4"NPT .02A |
4,406 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 30PSI (206.84kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 45PPSI (310.26kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
3120S-0200-G-42-10-C-N1SENSOR 200PSIG 1/4"NPT .02A |
1,748 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 200PSI (1378.95kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 300PPSI (2068.43kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
3120S-0005-G-42-10-C-N1SENSOR 5PSIG 1/4"NPT .02A |
2,525 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 5PSI (34.47kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 7.5PSI (51.71kPa) | -20°C ~ 85°C | - | - | - | - |
|
|
3120S-0030-G-42-10-C-N1SENSOR 30PSIG 1/4"NPT .02A |
2,147 |
|
Datasheet | Tek-Bar 3120S | Cylinder, Threaded | Box | Active | - | Gauge | 30PSI (206.84kPa) | Analog Current | 4 ~ 20 mA | ±1% | 10V ~ 36V | Male - 1/4" (6.35mm) NPT | Threaded | Temperature Compensated | Connector | 45PPSI (310.26kPa) | -20°C ~ 85°C | - | - | - | - |
