Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5607019PWR XFMR 150VA DIN RAIL |
1,321 |
|
- |
CPT | Bulk | Obsolete | - | - | - | - | Dual | - | - | 150VA | DIN Rail | Terminal Block | - | 120.00mm | - | - |
|
|
5607020PWR XFMR 250VA DIN RAIL |
3,569 |
|
- |
CPT | Bulk | Obsolete | - | - | - | - | Dual | - | - | 250VA | DIN Rail | Terminal Block | - | 133.00mm | - | - |
|
|
5607017PWR XFMR 50VA DIN RAIL |
4,883 |
|
- |
CPT | Bulk | Obsolete | - | - | - | - | Dual | - | - | 50VA | DIN Rail | Terminal Block | - | 107.00mm | - | - |
|
|
5607021PWR XFMR 500VA DIN RAIL |
4,709 |
|
- |
CPT | Bulk | Obsolete | - | - | - | - | Dual | - | - | 500VA | DIN Rail | Terminal Block | - | 147.00mm | - | - |
|

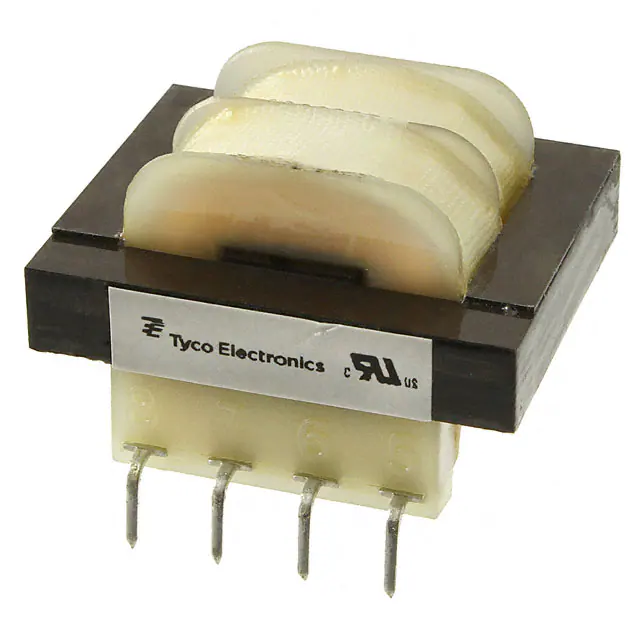

4900-9028RD63PWR XFMR LAMINATED 12VA TH |
3,896 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 857mA, Series 429mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 48.00mm L x 40.00mm W | 35.80mm | - | - |
|
|
4900-9013RE64PWR XFMR LAMINATED 20VA TH |
4,354 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | - | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 38.10mm W | 35.81mm | - | - |
|
|
4900-9028RE64PWR XFMR LAMINATED 20VA PCB |
1,082 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | PCB | Through Hole | 57.00mm L x 47.60mm W | - | 1500Vrms | - |
|

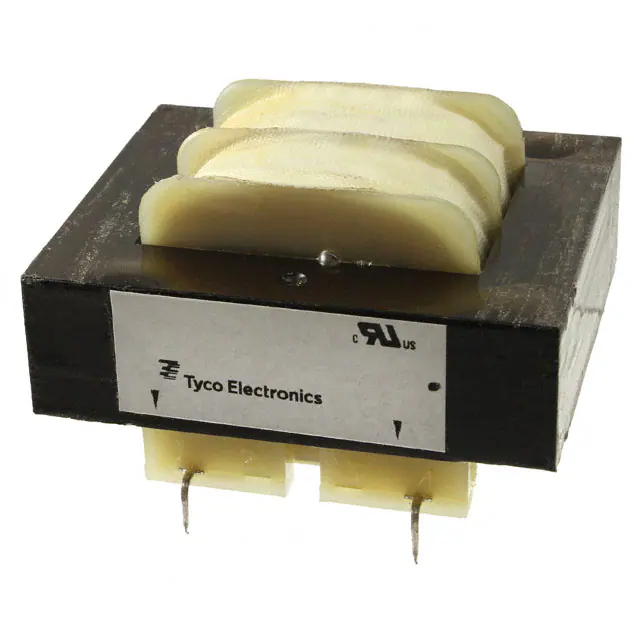

4900-8012RA60PWR XFMR LAMINATED 1.1VA TH |
3,349 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V | Parallel 6V, Series 12V | Parallel 180mA, Series 90mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 35.10mm L x 30.00mm W | 23.60mm | - | - |
|
4900-8024RD63PWR XFMR LAMINATED 12VA TH |
4,500 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 1A, Series 500mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.00mm L x 40.00mm W | 35.80mm | - | - |
|
|
4900-8028RD63PWR XFMR LAMINATED 12VA TH |
3,453 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 856mA, Series 428mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 48.00mm L x 40.00mm W | 35.80mm | - | - |
|
4900-8028RE64PWR XFMR LAMINATED 20VA TH |
2,764 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 1.428A, Series 714mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.00mm L x 47.60mm W | 35.80mm | - | - |
|
4900-8012RF65PWR XFMR LAMINATED 36VA TH |
2,462 |
|
Datasheet | 4900 | Bulk | Obsolete | Laminated Core | 115V | Parallel 6V, Series 12V | Parallel 6A, Series 3A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.00mm L x 55.00mm W | 41.10mm | - | - |
|
|
PA3533NLPWR XFMR EVSE H-1436 THT |
3,018 |
|
- |
- | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
6012-010PWR XFMR LAMINATED 1.1VA TH |
2,706 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-012PWR XFMR LAMINATED 1.1VA TH |
3,476 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-016PWR XFMR LAMINATED 1.1VA TH |
4,261 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-020PWR XFMR LAMINATED 1.1VA TH |
1,878 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 110mA, Series 55mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-024PWR XFMR LAMINATED 1.1VA TH |
3,606 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-028PWR XFMR LAMINATED 1.1VA TH |
3,398 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
|
|
6012-036PWR XFMR LAMINATED 1.1VA TH |
1,170 |
|
Datasheet | 6012 | Bulk | Obsolete | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 60mA, Series 30mA | Single | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms | 0.17 lb (77.11 g) |
