Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP241-8-28A56PWR XFMR LAMINATED 100VA CHAS MT |
3,905 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V, 230V | 28V | 3.6A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 65.02mm W | 57.15mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
|
DP241-8-16A53PWR XFMR LAMINATED 100VA CHAS MT |
2,359 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V, 230V | 16V | 6.25A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 65.02mm W | 57.15mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
|
DP241-8-12A52PWR XFMR LAMINATED 100VA CHAS MT |
3,079 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V, 230V | 12.6V | 8A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 65.02mm W | 57.15mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
|
DP241-8-20A54PWR XFMR LAMINATED 100VA CHAS MT |
3,322 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V, 230V | 20V | 5A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.36mm L x 65.02mm W | 57.15mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
|
PC-34-700B24PWR XFMR LAMINATED 24VA TH |
2,371 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
241-5-20A24PWR XFMR LAMINATED 12VA CHAS MT |
4,888 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V | 20V | 600mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 41.40mm W | 35.05mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
PC-24-180B18PWR XFMR LAMINATED 4.4VA TH |
4,330 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Single | Dual | No | 4.4VA | Through Hole | PC Pin | 41.28mm L x 31.75mm W | 34.93mm | 1500Vrms | 0.313 lb (141.97 g) |
|
|
DST4-36B26PWR XFMR LAMINATED 6VA TH |
1,986 |
|
Datasheet | Split Bobbin Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms | 0.44 lb (199.58 g) |
|

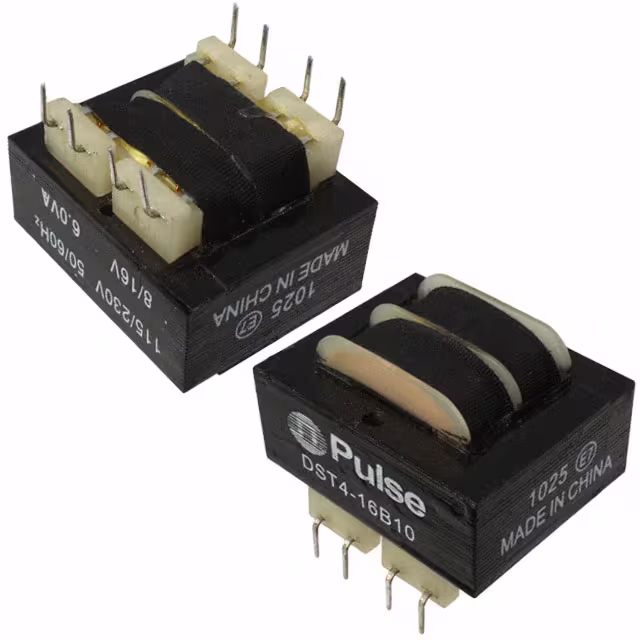

DST4-16B10PWR XFMR LAMINATED 6VA TH |
3,940 |
|
Datasheet | Split Bobbin Plug-In | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
LP28-90B115PWR XFMR SEMI-TORO 2VA TH |
4,743 |
|
Datasheet | Low Profile Plug-In | Bulk | Obsolete | Semi-Toroidal | - | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 1500Vrms | 0.313 lb (141.97 g) |
|
|
PC-16-1500B12PWR XFMR LAMINATED 24VA TH |
2,894 |
|
Datasheet | PC Plug-In | Bulk | Obsolete | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
PC-24-1000B20PWR XFMR LAMINATED 24VA TH |
3,241 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
A41-175-16A17PWR XFMR LAMINATED 175VA CHAS MT |
2,523 |
|
Datasheet | International High Power | Bulk | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 95.25mm W | 73.02mm | - | 5.5 lbs (2.5 kg) |
|
|
A41-175-230A46PWR XFMR LAMINATED 175VA CHAS MT |
1,893 |
|
Datasheet | International High Power | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 95.25mm W | 73.02mm | - | 5.5 lbs (2.5 kg) |
|
|
PC-12-2000B8PWR XFMR LAMINATED 24VA TH |
4,898 |
|
Datasheet | PC Plug-In | Bulk | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Single | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
|
14A-56-36B42PWR XFMR LAMINATED 56VA TH |
1,812 |
|
Datasheet | International PC Plug-In | Bulk | Obsolete | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Single, Multiple Taps | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | - | 1.7 lbs (771.1 g) |
|
|
A41-175-28A35PWR XFMR LAMINATED 175VA CHAS MT |
1,365 |
|
Datasheet | International High Power | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 95.25mm W | 73.02mm | - | 5.5 lbs (2.5 kg) |
|
|
DST4-28B22PWR XFMR LAMINATED 6VA TH |
4,392 |
|
Datasheet | Split Bobbin Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.40mm L x 33.27mm W | 33.27mm | 2500Vrms | 0.44 lb (199.58 g) |
|
|
241-5-24A25PWR XFMR LAMINATED 12VA CHAS MT |
4,864 |
|
Datasheet | Chassis-Tran | Bulk | Active | Laminated Core | 115V | 24V | 500mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 41.40mm W | 35.05mm | 2500Vrms | 0.7 lb (317.51 g) |
|
|
14A-2.5-28B31PWR XFMR LAMINATED 2.5VA TH |
2,143 |
|
Datasheet | International PC Plug-In | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 180mA, Series 90mA | Dual | Single, Multiple Taps | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | - | 0.25 lb (113.4 g) |
