Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPS36-4800-BPWR XFMR LAMINATED 175VA CHAS MT |
4,972 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

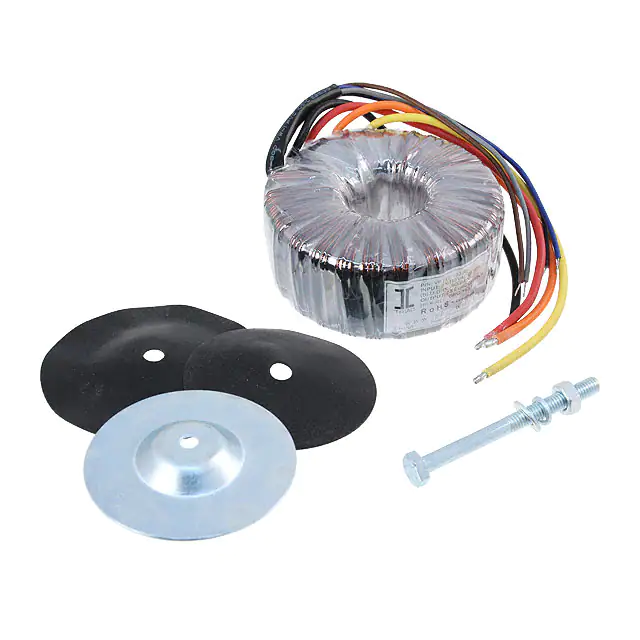

VPT12-13300PWR XFMR TOROIDAL 160VA CHAS MT |
4,386 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 26.6A, Series 13.3A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
F-97UPWR XFMR LAMINATED 80VA CHAS MT |
3,862 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 10V | 8A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 71.42mm L x 76.20mm W | 87.30mm | 1500Vrms | 4 lbs (1.8 kg) |
|
VPM12-4170PWR XFMR TOROIDAL 50VA CHAS MT |
1,900 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 8.34A, Series 4.17A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPM18-2780PWR XFMR TOROIDAL 50VA CHAS MT |
3,711 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 5.56A, Series 2.78A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPM24-2080PWR XFMR TOROIDAL 50VA CHAS MT |
3,857 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
VPM30-1670PWR XFMR TOROIDAL 50VA CHAS MT |
3,150 |
|
Datasheet | Toroidal Medical, VPM | Box | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 15V, Series 30V | Parallel 3.34A, Series 1.67A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
F-109UPWR XFMR LAMINATED 192VA CHAS MT |
3,474 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 16A, Series 8A | Dual | Dual | No | 192VA | Chassis Mount | Solder Lug | 87.30mm L x 90.47mm W | 106.35mm | 1500Vrms | 8 lbs (3.6 kg) |
|
F-244UPWR XFMR LAMINATED 288VA CHAS MT |
2,085 |
|
Datasheet | Multiple Secondary | Box | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 16A, Series 8A | Single | Dual | Yes | 288VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 101.60mm W | 95.25mm | 1500Vrms | 8.3 lbs (3.8 kg) |
|
|
F-268UPWR XFMR LAMINATED 280VA CHAS MT |
1,899 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 35V | 8A | Single | Single | Yes | 280VA | Chassis Mount | Wire Leads | 107.95mm L x 95.25mm W | 114.30mm | 1500Vrms | 11 lbs (5 kg) |
