Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

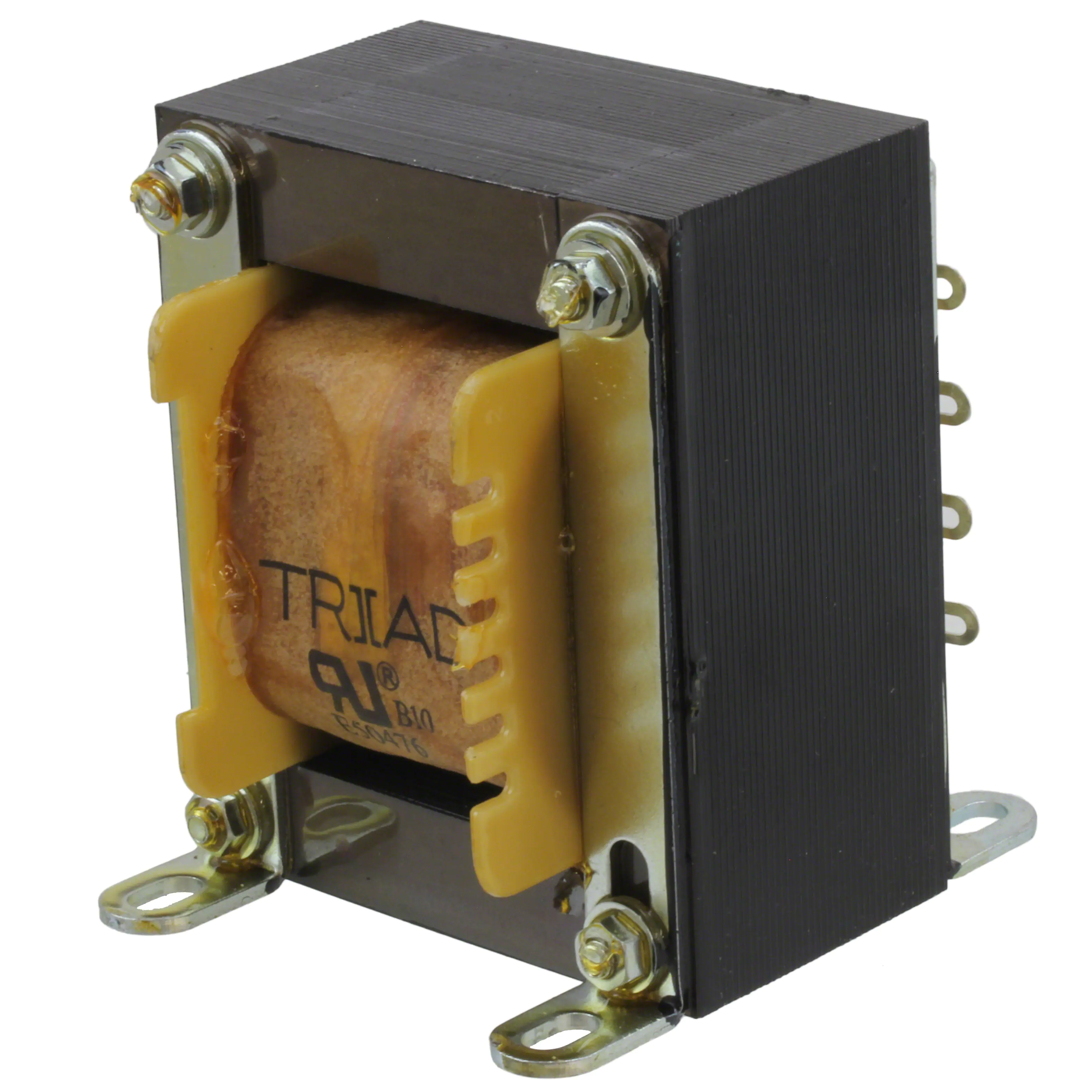

F-399UPWR XFMR LAMINATED 192VA CHAS MT |
4,090 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 12A, Series 6A | Dual | Dual | No | 192VA | Chassis Mount | Solder, Quick Connect | 88.90mm L x 79.38mm W | 120.65mm | 1500Vrms | 5.9 lbs (2.7 kg) |
|
|
F-400UPWR XFMR LAMINATED 144VA CHAS MT |
3,102 |
|
Datasheet | Control Transformers | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 6A, Series 3A | Dual | Dual | No | 144VA | Chassis Mount | Solder, Quick Connect | 88.90mm L x 79.38mm W | 120.65mm | 1500Vrms | 5.9 lbs (2.7 kg) |
|
F-198UPWR XFMR LAMINATED 122VA CHAS MT |
2,678 |
|
Datasheet | Multiple Secondary | Box | Active | Laminated Core | 115V | 15.5V, 32V | 6A, 1A | Single | Dual | Yes | 122VA | Chassis Mount | Wire Leads | 80.95mm L x 79.38mm W | 95.25mm | 1500Vrms | 6.2 lbs (2.8 kg) |
|
VPS10-17500-BPWR XFMR LAMINATED 175VA CHAS MT |
2,389 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS12-14000-BPWR XFMR LAMINATED 175VA CHAS MT |
1,690 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS16-11000-BPWR XFMR LAMINATED 175VA CHAS MT |
4,286 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS20-8800-BPWR XFMR LAMINATED 175VA CHAS MT |
3,358 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS230-760-BPWR XFMR LAMINATED 175VA CHAS MT |
2,932 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS24-7300-BPWR XFMR LAMINATED 175VA CHAS MT |
3,589 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
VPS28-6250-BPWR XFMR LAMINATED 175VA CHAS MT |
4,147 |
|
Datasheet | Chassis Mount: World Series™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
