Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCT50-03E07KPWR XFMR LAMINATED 50VA CHAS MT |
111 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 12V | 4.17A | Single | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|

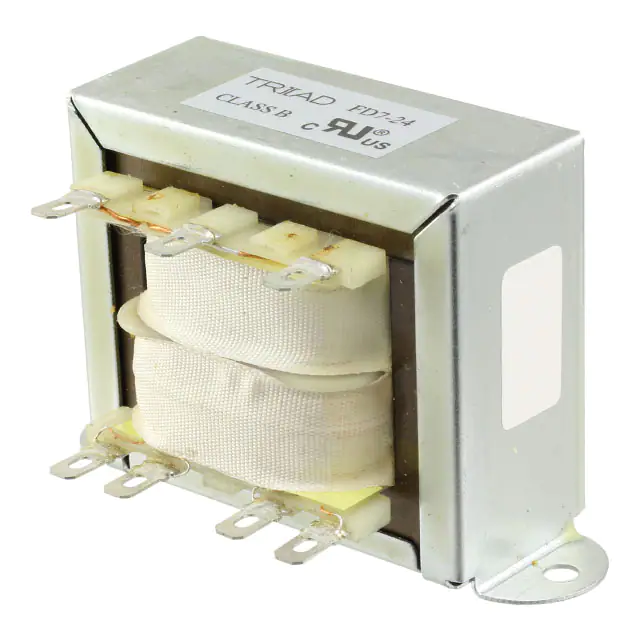

FD7-24PWR XFMR LAMINATED 56VA CHAS MT |
126 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 24V | 2.4A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

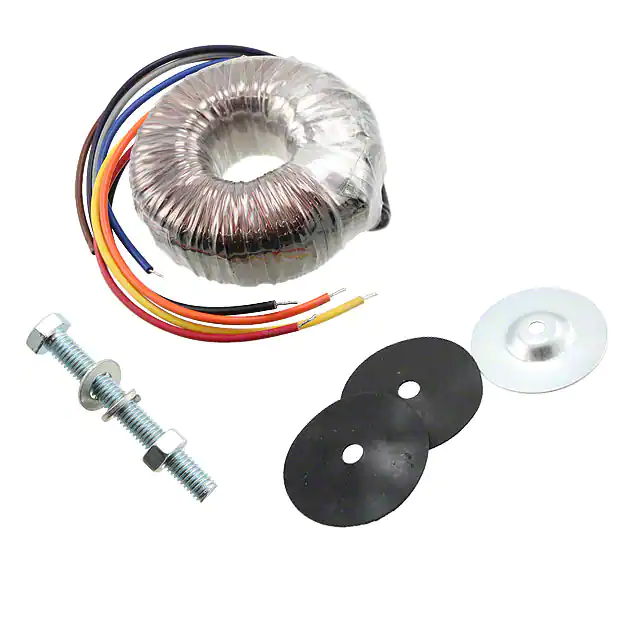

VPT30-830PWR XFMR TOROIDAL 25VA CHAS MT |
132 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 25VA | Chassis Mount | Wire Leads | 71.00mm Dia x 32.00mm W | 34.0mm | 4000Vrms | 0.882 lb (400.07 g) |
|

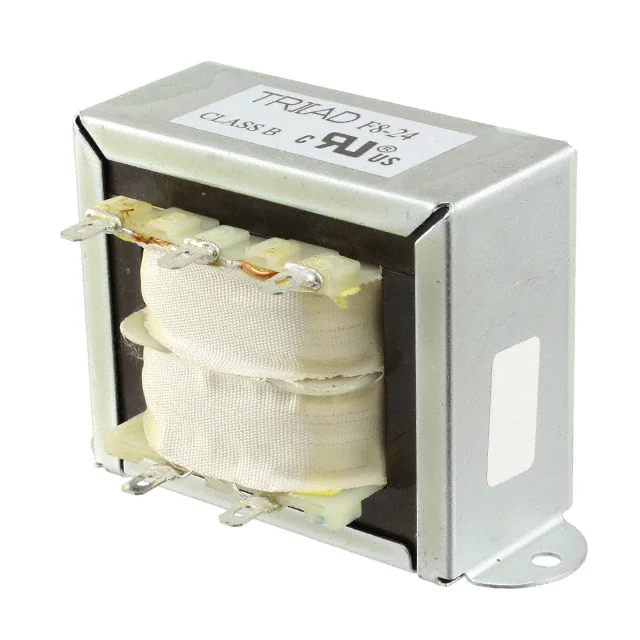

F8-24PWR XFMR LAMINATED 100VA CHAS MT |
161 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

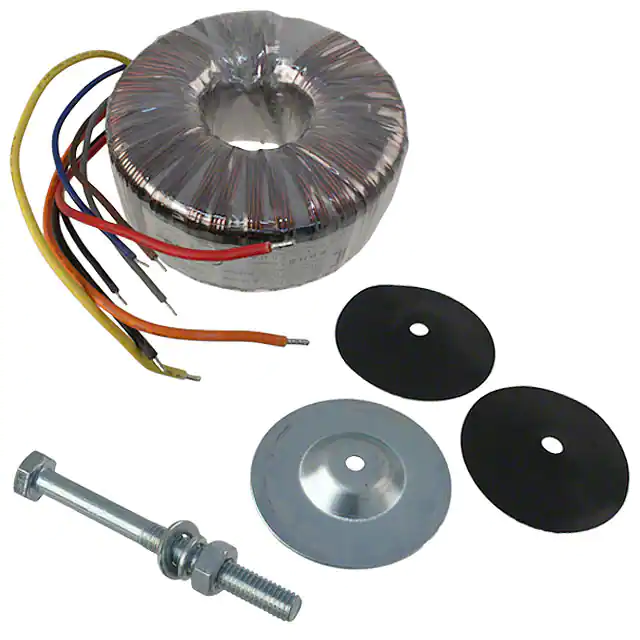

VPT30-1670PWR XFMR TOROIDAL 50VA CHAS MT |
308 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.34A, Series 1.67A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

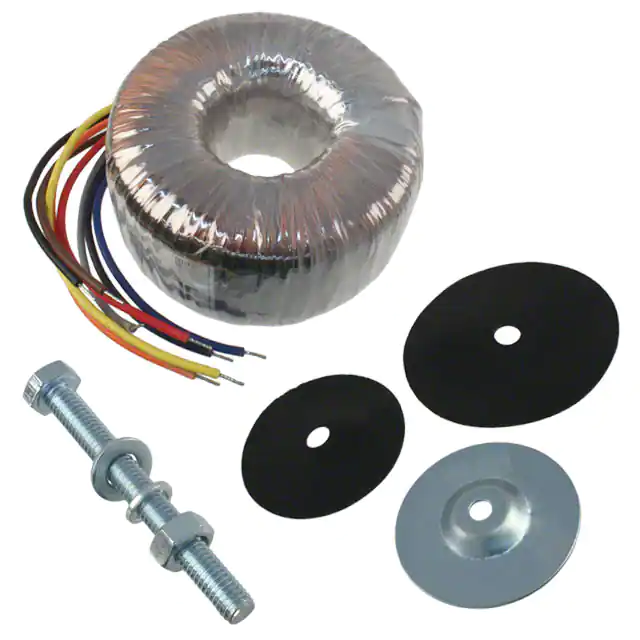

VPT230-430PWR XFMR TOROIDAL 100VA CHAS MT |
565 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 860mA, Series 430mA | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPT36-2780PWR XFMR TOROIDAL 100VA CHAS MT |
127 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 18V, Series 36V | Parallel 5.56A, Series 2.78A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|
VPT48-3300PWR XFMR TOROIDAL 160VA CHAS MT |
1,331 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 6.66A, Series 3.33A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPS28-6250PWR XFMR LAMINATED 175VA CHAS MT |
103 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

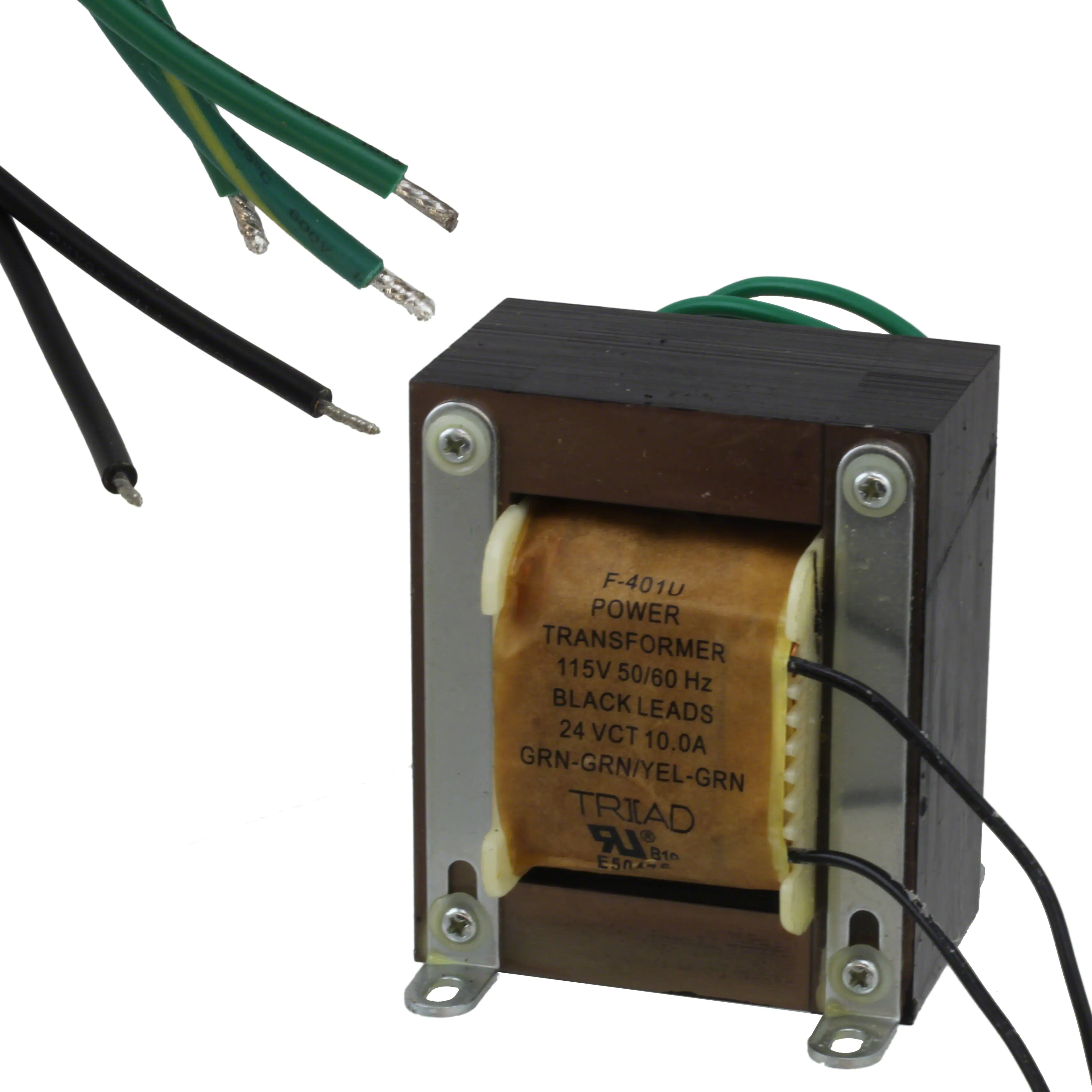

F-401UPWR XFMR LAMINATED 240VA CHAS MT |
4,464 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 24V | 10A | Single | Single | Yes | 240VA | Chassis Mount | Wire Leads | 87.30mm L x 95.25mm W | 104.77mm | 1500Vrms | 8 lbs (3.6 kg) |
