Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPL28-1700PWR XFMR LAMINATED 50.0VA CHAS |
3,611 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 28V | 1.786A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|
F7-24-BPWR XFMR LAMINATED 56VA CHAS MT |
4,719 |
|
Datasheet | Quick Pack | Bulk | Active | Laminated Core | 115V | 24V | 2.4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC | 1.7 lbs (771.1 g) |
|

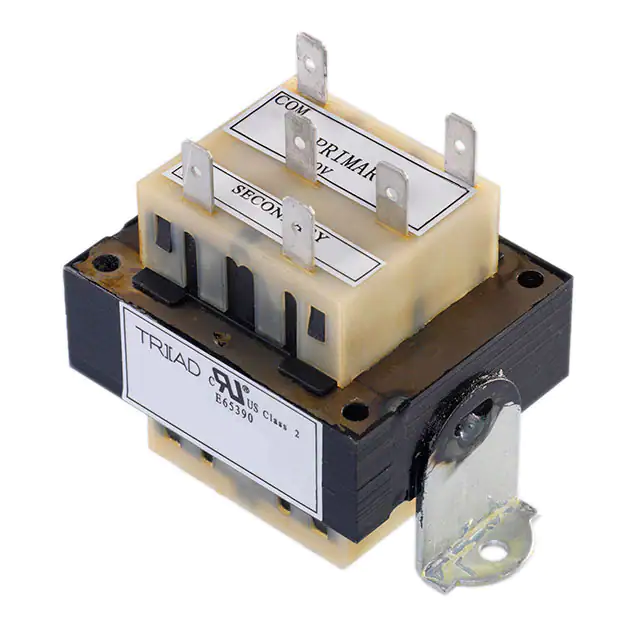

TCT50-09E07AEPWR XFMR LAMINATED 50VA CHAS MT |
4,747 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 66.04mm W | 69.60mm | 1500VAC | 2 lbs (907.2 g) |
|
TCT50-01E07AB-BPWR XFMR LAMINATED 50VA CHAS MT |
1,992 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
|
TCT50-02E07AB-BPWR XFMR LAMINATED 50VA CHAS MT |
2,718 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 240V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
|
TCT50-05E07AB-BPWR XFMR LAMINATED 50VA CHAS MT |
2,616 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 120V, 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
|
TCT50-06E07AB-BPWR XFMR LAMINATED 50VA CHAS MT |
3,927 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 120V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
|
TCT50-09E07AB-BPWR XFMR LAMINATED 50VA CHAS MT |
2,787 |
|
Datasheet | Class 2, TCT | Bulk | Active | Laminated Core | 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 2 lbs (907.2 g) |
|
F-255XPWR XFMR LAMINATED 40VA CHAS MT |
1,156 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 20V | 2A | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.07mm | 1500Vrms | 2.5 lbs (1.1 kg) |
|
|
F-69XPWR XFMR LAMINATED 50.4VA CHAS |
4,418 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 6.3V | 8A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 71.37mm | 1500Vrms | 2.3 lbs (1 kg) |
