Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-26XPWR XFMR LAMINATED 31.5VA CHAS |
3,287 |
|
Datasheet | Single Secondary | Box | Active | Laminated Core | 115V | 12.6V | 2.5A | Single | Single | Yes | 31.5VA | Chassis Mount | Wire Leads | 93.65mm L x 50.80mm W | 57.94mm | 1500Vrms | 1.6 lbs (725.7 g) |
|

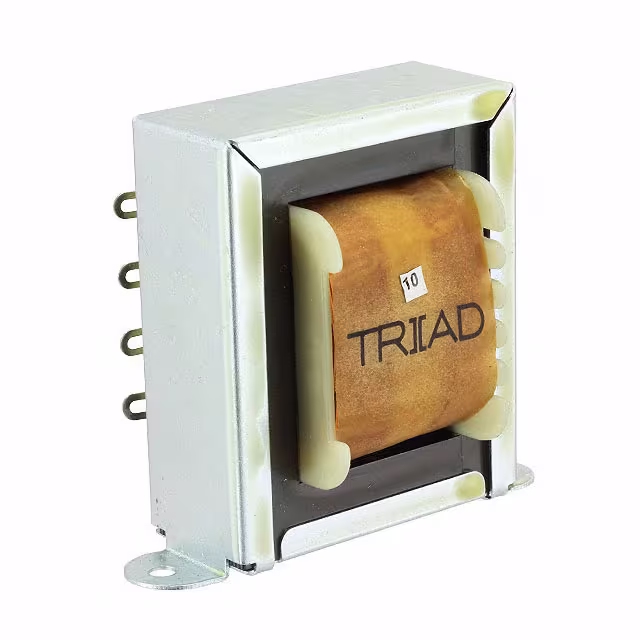

F-237ZPWR XFMR LAMINATED 24VA CHAS MT |
3,925 |
|
Datasheet | Multiple Secondary | Box | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | Yes | 24VA | Chassis Mount | Solder, Quick Connect | 71.42mm L x 52.37mm W | 60.33mm | 1500Vrms | 1.1 lbs (499 g) |
|
FS10-3600-C2PWR XFMR LAMINATED 36VA TH |
3,947 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
FS12-2850-C2PWR XFMR LAMINATED 36VA TH |
1,591 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
FS16-2250-C2PWR XFMR LAMINATED 36VA TH |
3,114 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
FS24-1500-C2PWR XFMR LAMINATED 36VA TH |
1,799 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|
|
FS56-650-C2PWR XFMR LAMINATED 36VA TH |
2,654 |
|
Datasheet | Split Pack™, Class 2/3, FS | Tube | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.3A, Series 650mA | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms | 1.1 lbs (499 g) |
|

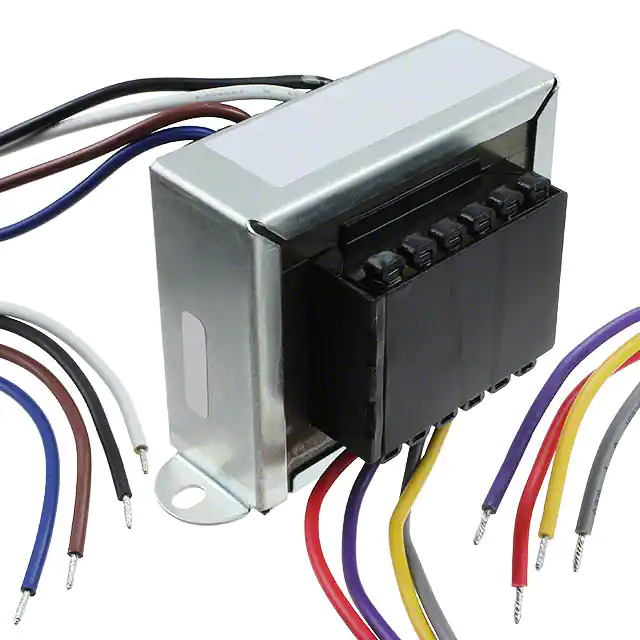

VPL10-5000PWR XFMR LAMINATED 50.0VA CHAS |
3,615 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 10V | 5A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|

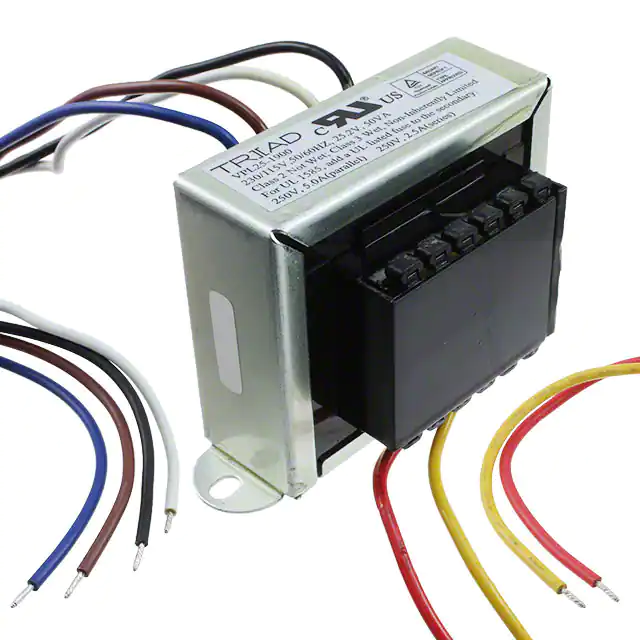

VPL25-1900PWR XFMR LAMINATED 50.0VA CHAS |
2,174 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 25.2V | 1.984A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
|

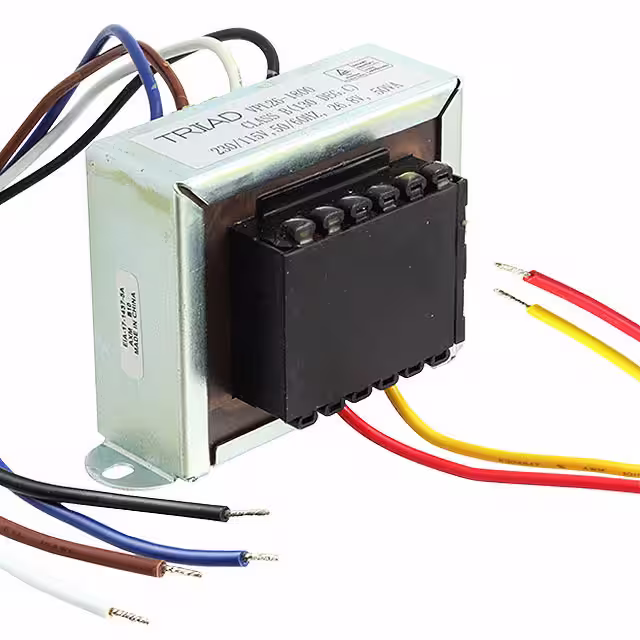

VPL26-1800PWR XFMR LAMINATED 50.0VA CHAS |
3,027 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 26.8V | 1.866A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms | 2.3 lbs (1 kg) |
