Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCT40-02E07KPWR XFMR LAMINATED 40VA CHAS MT |
708 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 240V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
|
TCT40-05E07KPWR XFMR LAMINATED 40VA CHAS MT |
654 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V, 208V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|
VPP36-1560PWR XFMR LAMINATED 56VA TH |
178 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|

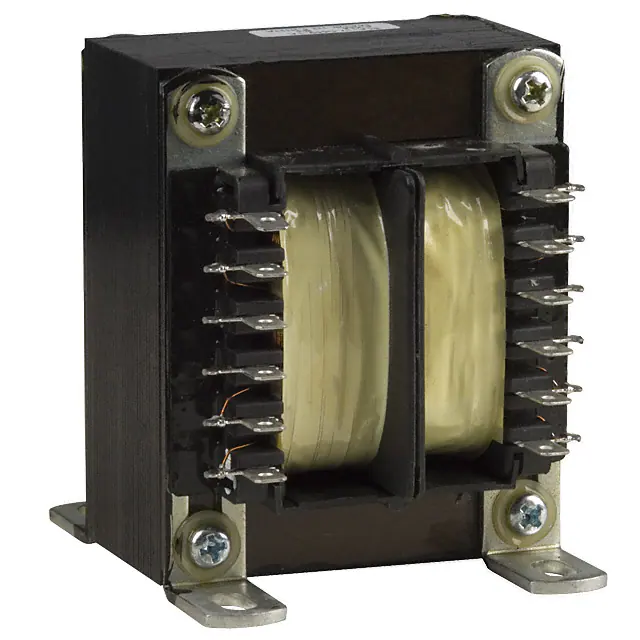

VPS36-2200PWR XFMR LAMINATED 80VA CHAS MT |
1,234 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

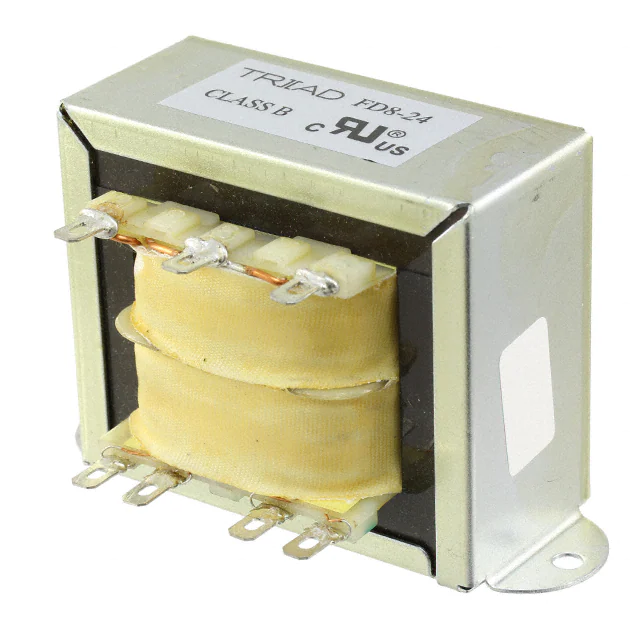

FD8-24PWR XFMR LAMINATED 100VA CHAS MT |
192 |
|
Datasheet | Quick Pack | Box | Active | Laminated Core | 115V, 230V | 24V | 4A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC | 2.8 lbs (1.3 kg) |
|

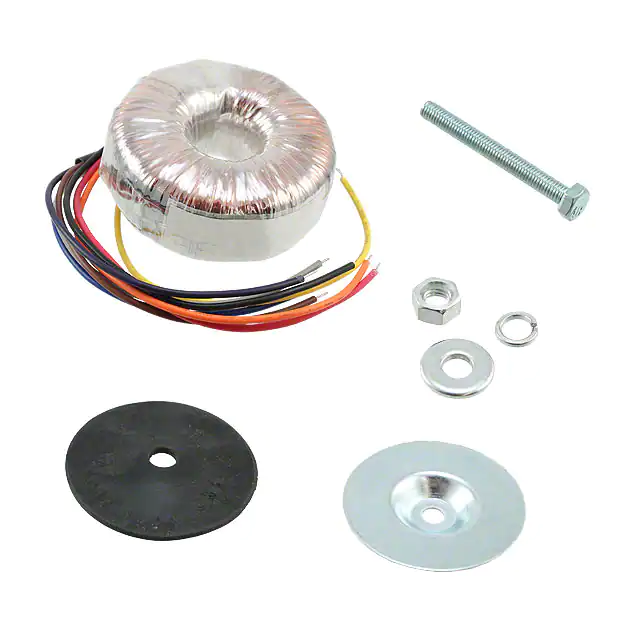

VPT230-220PWR XFMR TOROIDAL 50VA CHAS MT |
321 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 440mA, Series 220mA | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

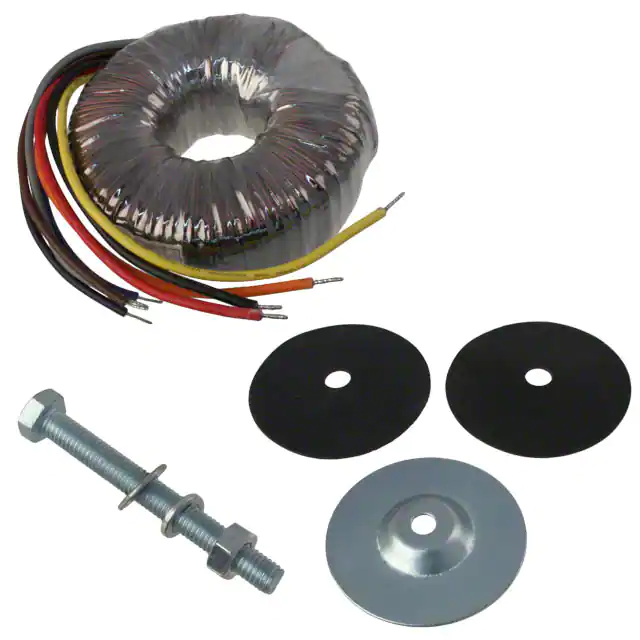

VPT24-2080PWR XFMR TOROIDAL 50VA CHAS MT |
122 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.16A, Series 2.08A | Dual | Dual | No | 50VA | Chassis Mount | Wire Leads | 80.00mm Dia x 33.00mm W | 36.0mm | 4000Vrms | 1.4 lbs (635 g) |
|

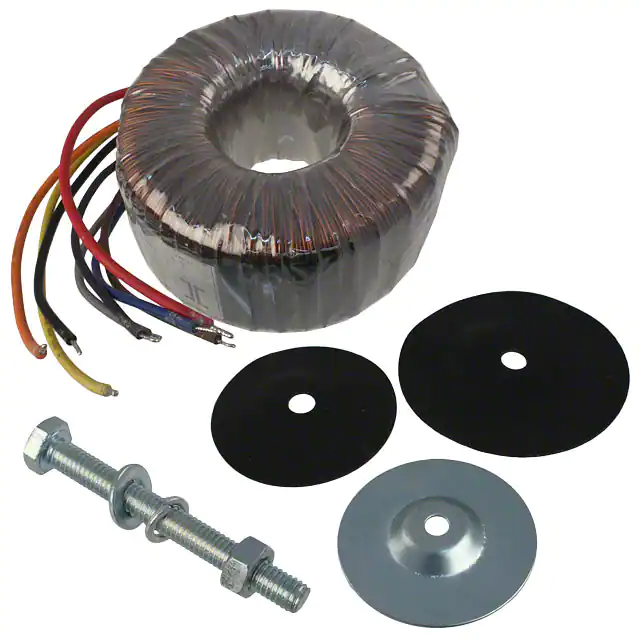

VPT24-4170PWR XFMR TOROIDAL 100VA CHAS MT |
146 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 8.34A, Series 4.17A | Dual | Dual | No | 100VA | Chassis Mount | Wire Leads | 87.00mm Dia x 47.00mm W | 51.0mm | 4000Vrms | 2.2 lbs (997.9 g) |
|

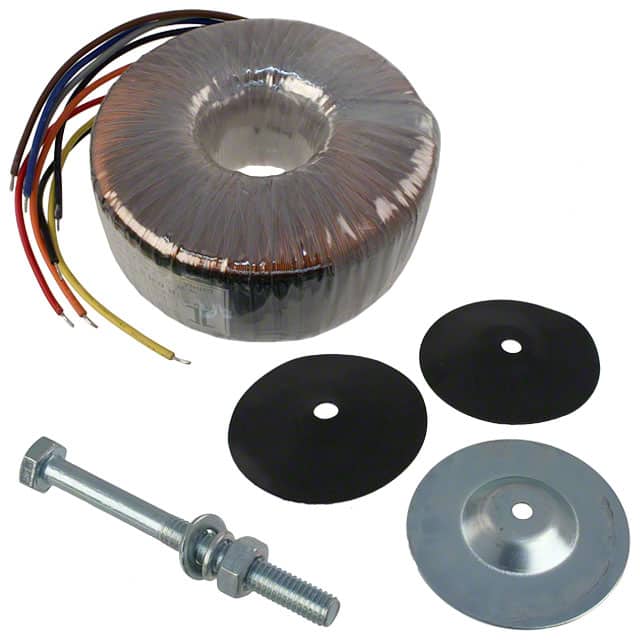

VPT230-700PWR XFMR TOROIDAL 160VA CHAS MT |
167 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms | 3.6 lbs (1.6 kg) |
|
VPT48-5200PWR XFMR TOROIDAL 250VA CHAS MT |
4,509 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Toroidal | 115V, 230V | Parallel 24V, Series 48V | Parallel 10.4A, Series 5.2A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms | 4.9 lbs (2.2 kg) |
