Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

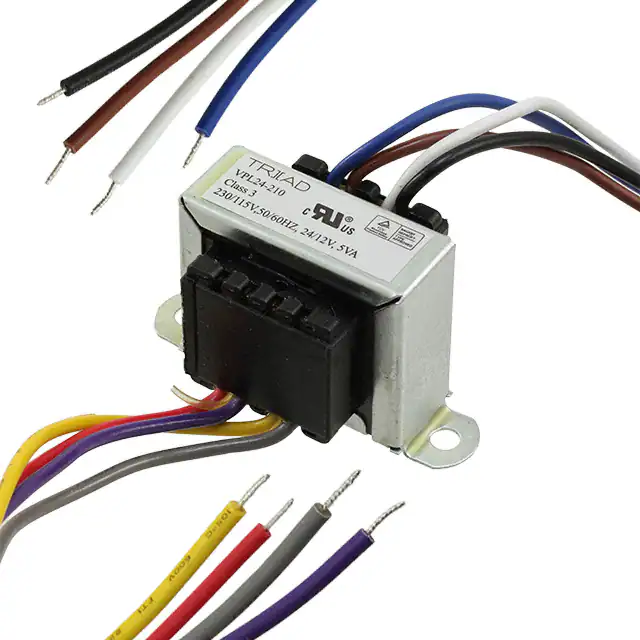

VPL24-210PWR XFMR LAMINATED 5.0VA CHAS MT |
381 |
|
Datasheet | Chassis Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | 24V | 210mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms | 0.4 lb (181.44 g) |
|
FS16-800PWR XFMR LAMINATED 12VA TH |
1,195 |
|
Datasheet | Split Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms | 0.7 lb (317.51 g) |
|

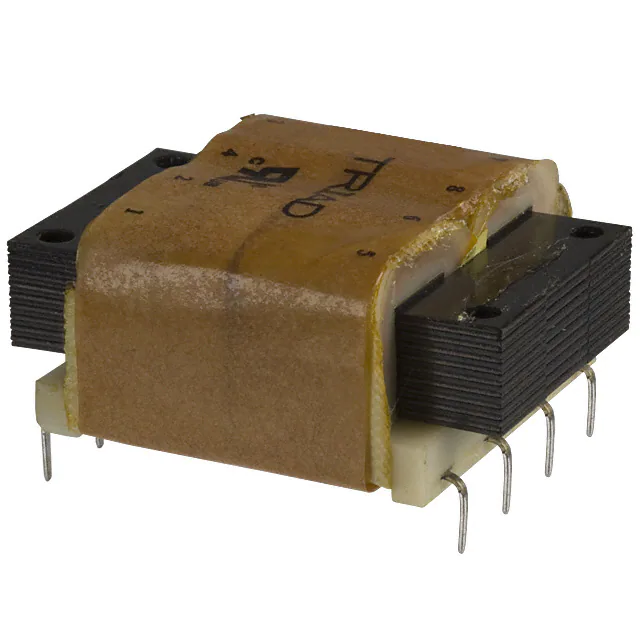

FP24-250PWR XFMR LAMINATED 6VA TH |
1,118 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
|
FP30-200PWR XFMR LAMINATED 6VA TH |
172 |
|
Datasheet | Flat Pack™ | Box | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms | 0.438 lb (198.67 g) |
|
VPP24-1250PWR XFMR LAMINATED 30VA TH |
2,815 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms | 1.2 lbs (544.3 g) |
|

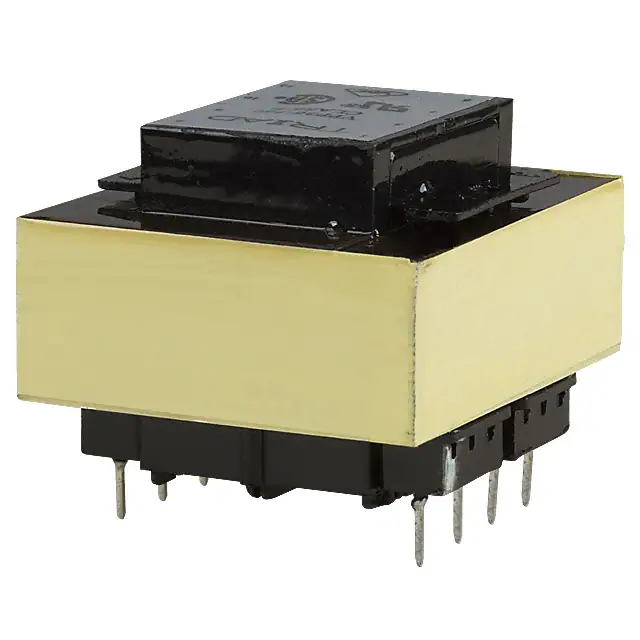

VPP24-830PWR XFMR LAMINATED 20VA TH |
4,699 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.66A, Series 830mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
|
VPP36-560PWR XFMR LAMINATED 20VA TH |
2,926 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.12A, Series 560mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 41.28mm | 4000Vrms | 0.9 lb (408.23 g) |
|
VPP24-2330PWR XFMR LAMINATED 56VA TH |
3,102 |
|
Datasheet | PC Mount: World Series™ | Box | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms | 1.7 lbs (771.1 g) |
|

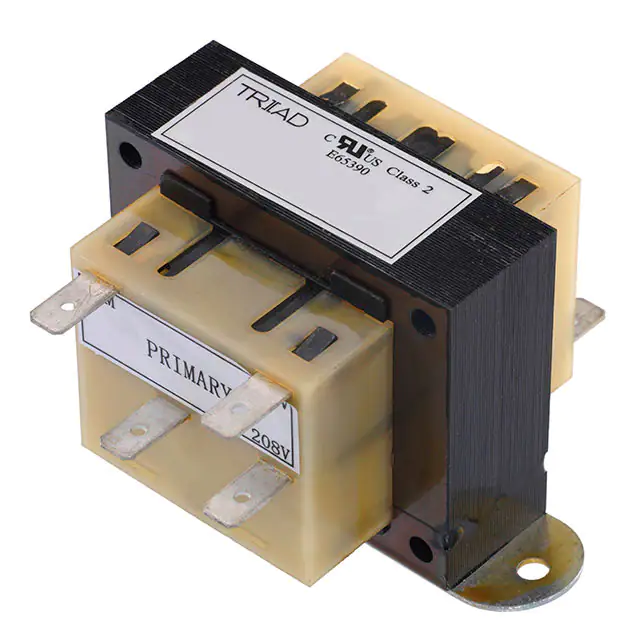

TCT40-01E07ABPWR XFMR LAMINATED 40VA CHAS MT |
317 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
|

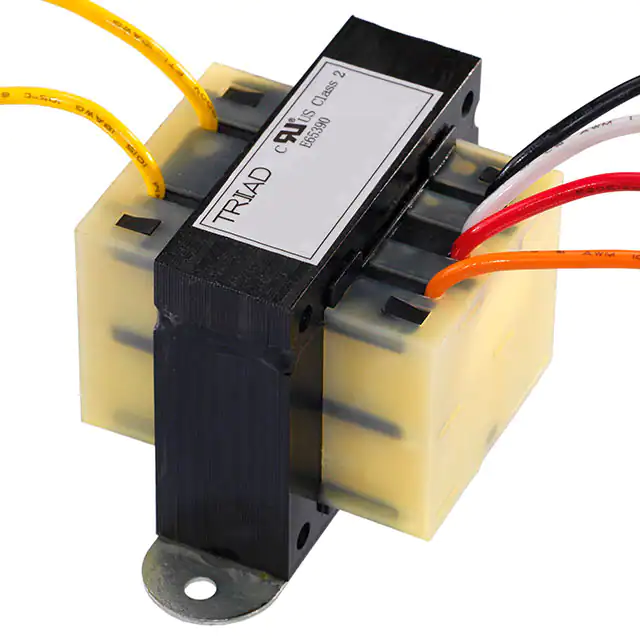

TCT40-01E07KPWR XFMR LAMINATED 40VA CHAS MT |
2,020 |
|
Datasheet | Class 2, TCT | Box | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms | 1.5 lbs (680.4 g) |
