Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

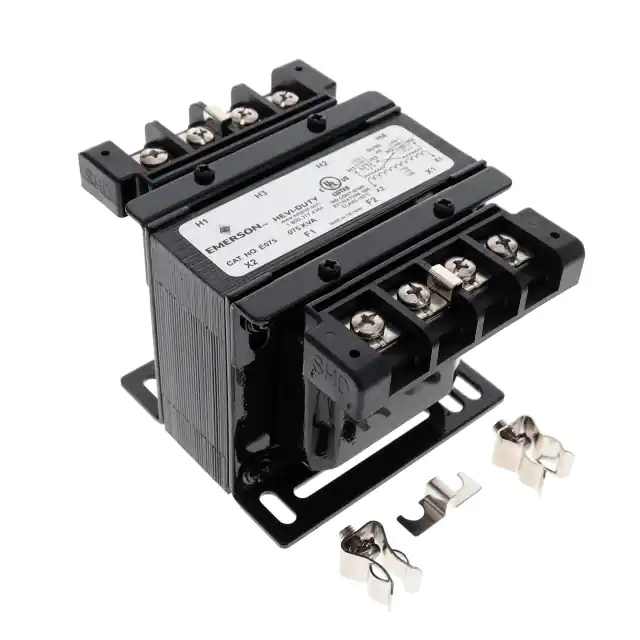

E075PWR XFMR LAMINATED 75VA CHAS MT |
2,542 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 75VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
E100PWR XFMR LAMINATED 100VA CHAS MT |
4,181 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
E150PWR XFMR LAMINATED 150VA CHAS MT |
4,710 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 150VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
E200PWR XFMR LAMINATED 200VA CHAS MT |
1,866 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 200VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|

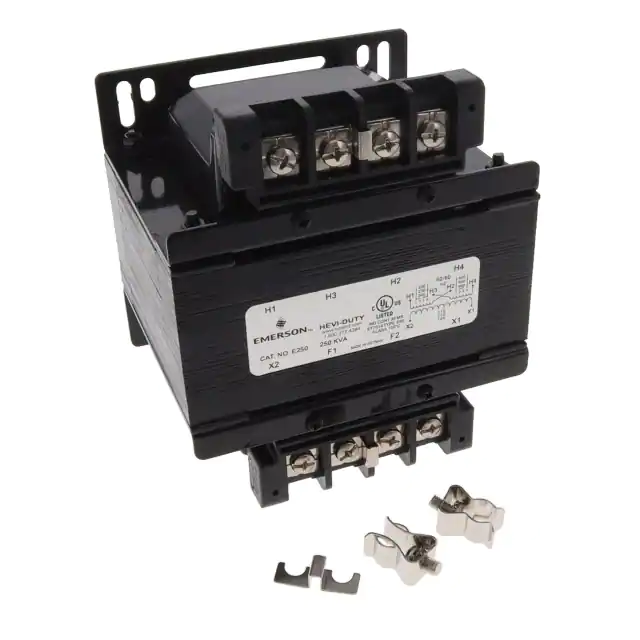

E250PWR XFMR LAMINATED 250VA CHAS MT |
4,362 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 250VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
E150TFPWR XFMR LAMINATED 150VA CHAS MT |
1,618 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single, Multiple Taps | Yes | 150VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
E050TEPWR XFMR LAMINATED 50VA CHAS MT |
2,486 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Single, Multiple Taps | Single, Multiple Taps | Yes | 50VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
CE1500MHPWR XFMR LAMINATED 1500VA CHAS |
1,975 |
|
Datasheet | Ice International | Bulk | Active | Laminated Core | - | - | - | Single, Multiple Taps | - | Yes | 1500VA | Chassis Mount | Solder, Quick Connect | - | 5.630" (143.00mm) | - | - |
|
|
E250TCPWR XFMR LAMINATED 250VA CHAS MT |
2,788 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Single, Multiple Taps | Single, Multiple Taps | Yes | 250VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
HS1B50PWR XFMR LAMINATED 50VA CHAS MT |
1,208 |
|
Datasheet | - | Bulk | Active | Laminated Core | 240V, 480V | 120V, 240V | 416mA | Dual | Dual | No | 50VA | Chassis Mount | Solder, Quick Connect | 101.60mm L x 76.20mm W | 152.40mm | - | - |
