Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E200EPWR XFMR LAMINATED 200VA CHAS MT |
1,075 |
|
Datasheet | SBE | Box | Active | Laminated Core | 120V, 240V | 24V | - | Dual, Multiple Taps | Single | No | 200VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|

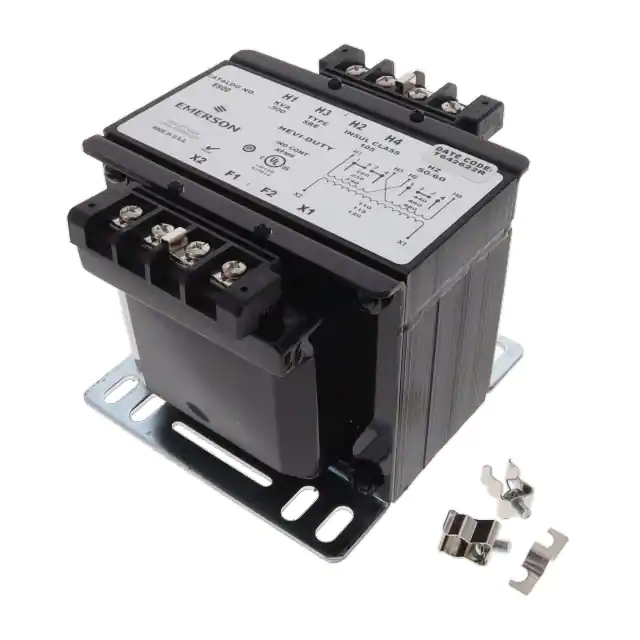

E500PWR XFMR LAMINATED 50VA CHAS MT |
2,158 |
|
Datasheet | SBE | Bulk | Active | Laminated Core | - | - | - | Dual, Multiple Taps | Single | Yes | 50VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
HS1F750BPWR XFMR LAMINATED 750VA CHAS MT |
4,679 |
|
Datasheet | - | Bulk | Active | Laminated Core | 240V, 480V | 120V, 240V | 6.25A | Dual | Dual | No | 750VA | Chassis Mount | Solder, Quick Connect | 152.40mm L x 127.00mm W | 254.00mm | - | - |
|
|
HS10F2ASPWR XFMR LAMINATED 2000VA CHAS |
1,489 |
|
Datasheet | - | Bulk | Active | Laminated Core | 600V | 120V, 240V | 16.7A | Single | Dual | No | 2000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
CE1000THPWR XFMR LAMINATED 1000VA CHAS |
3,444 |
|
Datasheet | Ice International | Bulk | Active | Laminated Core | - | 120V, 240V | - | Single, Multiple Taps | - | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | 162.10mm L x 152.40mm W | 5.630" (143.00mm) | - | - |
|
CE1000MHPWR XFMR LAMINATED 1000VA CHAS |
3,991 |
|
Datasheet | Ice International | Bulk | Active | Laminated Core | - | - | - | Single, Multiple Taps | - | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
CE750MCPWR XFMR LAMINATED 750VA CHAS MT |
2,993 |
|
Datasheet | Ice International | Bulk | Active | Laminated Core | 208V, 240V, 415V, 480V, 600V | - | - | Single, Multiple Taps | Dual | No | 750VA | Chassis Mount | Solder, Quick Connect | 162.10mm L x 152.40mm W | 143.00mm | - | - |
|
|
HS14F1.5BSPWR XFMR LAMINATED 1500VA CHAS |
2,847 |
|
Datasheet | - | Bulk | Active | Laminated Core | - | - | 13.6A | Dual, Multiple Taps | Dual | No | 1500VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
|
HS14F2CS-CEPWR XFMR LAMINATED 2000VA CHAS |
1,195 |
|
Datasheet | - | Bulk | Active | Laminated Core | - | - | 18.2A | Dual, Multiple Taps | Dual | No | 2000VA | Chassis Mount | Solder, Quick Connect | - | - | - | - |
|
E050EPWR XFMR LAMINATED 50VA CHAS MT |
1,240 |
|
Datasheet | SBE | Box | Active | Laminated Core | 120V, 240V | 24V | - | Dual, Multiple Taps | Single | Yes | 50VA | Chassis Mount | Solder, Quick Connect | 101.30mm L x 76.50mm W | 69.10mm | - | - |
