Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12.8-2PWR XFMR LAMINATED 25.6VA CHAS |
2,829 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 6.4V, Series 12.8V | Parallel 4A, Series 2A | Single, Multiple Taps | Single, Multiple Taps | Yes | 25.6VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 63.50mm W | 63.50mm | 1500Vrms | 2.3 lbs (1 kg) |
|
ECO-105-48PWR XFMR LAMINATED 105VA CHAS MT |
3,267 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 105VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 96.00mm | 4000Vrms | - |
|
24-4PWR XFMR LAMINATED 96VA CHAS MT |
3,448 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 8A, Series 4A | Single, Multiple Taps | Dual | Yes | 96VA | Chassis Mount | Solder, Quick Connect | 95.30mm L x 79.40mm W | 79.40mm | 1500Vrms | 4.5 lbs (2 kg) |
|
|
ECO-140-230PWR XFMR LAMINATED 140VA CHAS MT |
3,692 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.2A, Series 610mA | Dual | Dual | No | 140VA | Chassis Mount | Terminal Block | 90.00mm L x 106.00mm W | 106.00mm | 4000Vrms | - |
|
MPI-200-48PWR XFMR LAMINATED 200VA CHAS MT |
1,484 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 24V, Series 48V | Parallel 8.3A, Series 4.2A | Dual, Multiple Taps | Dual | No | 200VA | Chassis Mount | Terminal Block | 95.30mm L x 113.30mm W | 93.10mm | 4000Vrms | 6.3 lbs (2.9 kg) |
|
|
ECO-330-230PWR XFMR LAMINATED 330VA CHAS MT |
4,358 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 330VA | Chassis Mount | Terminal Block | 126.00mm L x 136.00mm W | 114.30mm | 4000Vrms | - |
|
M4L-1-3PWR XFMR LAMINATED 300VA CHAS MT |
3,233 |
|
Datasheet | M4L | Bulk | Active | Laminated Core | 125V, 115V, 105V | 115V | 2.6A | Single, Multiple Taps | Single | No | 300VA | Chassis Mount | Terminal Block | 106.68mm L x 103.51mm W | 95.30mm | 4000Vrms | 7 lbs (3.2 kg) |
|
|
ECO-330-48PWR XFMR LAMINATED 330VA CHAS MT |
2,092 |
|
Datasheet | EcoTran | Box | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 13.7A, Series 6.8A | Dual | Dual | No | 330VA | Chassis Mount | Terminal Block | 126.00mm L x 136.00mm W | 114.30mm | 4000Vrms | - |
|

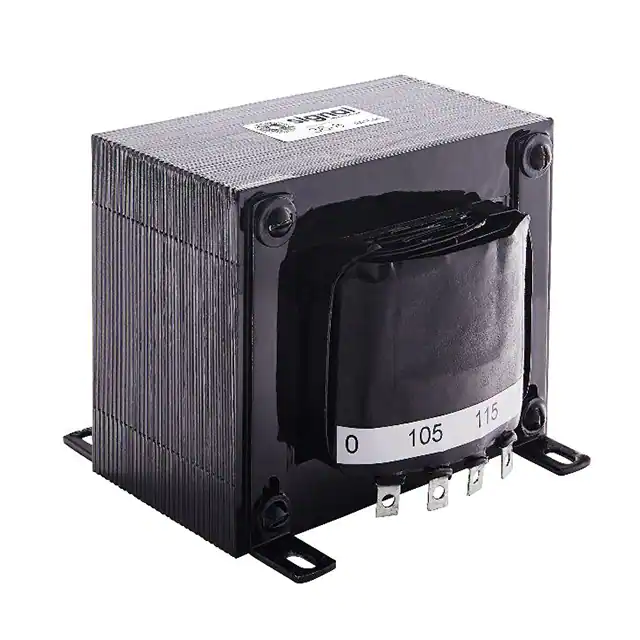

36-8PWR XFMR LAMINATED 288VA CHAS MT |
3,915 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 288VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 114.30mm W | 95.30mm | 1500Vrms | 11 lbs (5 kg) |
|
|
MPI-200-10PWR XFMR LAMINATED 200VA CHAS MT |
3,764 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 40A, Series 20A | Dual, Multiple Taps | Dual | No | 200VA | Chassis Mount | Terminal Block | 95.30mm L x 113.30mm W | 93.10mm | 4000Vrms | 6.3 lbs (2.9 kg) |
