Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
241-8-56LPWR XFMR LAMINATED 100VA CHAS MT |
4,967 |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V | 56V | 1.8A | Single | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
IF-24-230PWR XFMR SEMI-TORO 24VA TH |
2,496 |
|
Datasheet | IF | Bulk | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 210mA, Series 105mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 68.00mm L x 57.50mm W | 31.30mm | 4000Vrms | 1.03 lbs (467.2 g) |
|
DP-241-8-10LPWR XFMR LAMINATED 100VA CHAS MT |
2,559 |
|
Datasheet | Two-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | 10V | 10A | Dual | Single | Yes | 100VA | Chassis Mount | Wire Leads | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
A41-80-512PWR XFMR LAMINATED 80VA CHAS MT |
4,995 |
|
Datasheet | All-4-One™ | Bulk | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 12V | Parallel 3.5A, Series 600mA | Dual | Dual | Yes | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 64.30mm W | 76.20mm | 4000Vrms | 2.8 lbs (1.3 kg) |
|

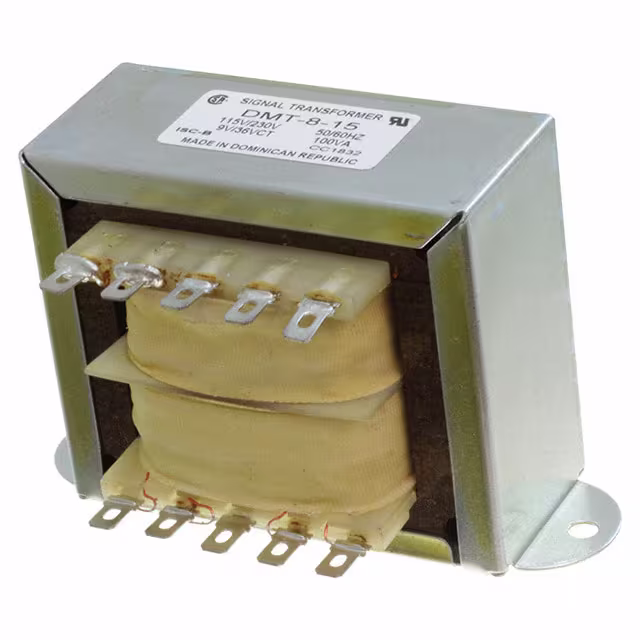

DMT-8-15PWR XFMR LAMINATED 8VA CHAS MT |
2,519 |
|
Datasheet | DMT | Bulk | Active | Laminated Core | 115V, 230V | 5V, 15V | 4A, 500mA | Dual | Dual | Yes | 8VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|
24-1PWR XFMR LAMINATED 24VA CHAS MT |
1,709 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 24VA | Chassis Mount | Solder, Quick Connect | 76.20mm L x 63.50mm W | 63.50mm | 1500Vrms | 2.3 lbs (1 kg) |
|
A41-175-16PWR XFMR LAMINATED 175VA CHAS MT |
1,912 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
-Series.jpg)
|
A41-175-230LPWR XFMR LAMINATED 175VA CHAS MT |
1,961 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Wire Leads | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|
|
A41-175-12PWR XFMR LAMINATED 175VA CHAS MT |
4,754 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 79.70mm W | 95.30mm | 4000Vrms | 5.5 lbs (2.5 kg) |
|

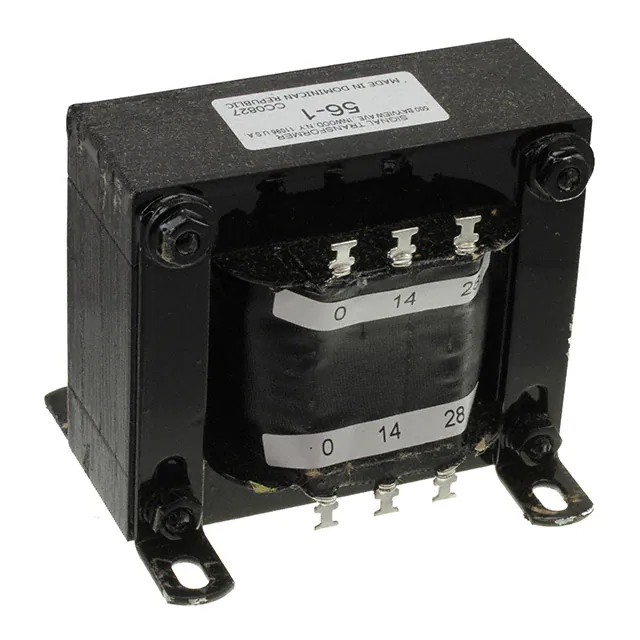

56-1PWR XFMR LAMINATED 56VA CHAS MT |
4,888 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 28V, Series 56V | Parallel 2A, Series 1A | Single, Multiple Taps | Dual | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 85.70mm L x 73.00mm W | 71.40mm | 1500Vrms | 3.5 lbs (1.6 kg) |
