Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP-241-6-36PWR XFMR LAMINATED 30VA CHAS MT |
4,136 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 36V | 850mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
DP-241-6-16PWR XFMR LAMINATED 30VA CHAS MT |
2,099 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 16V | 2A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
|
241-8-20PWR XFMR LAMINATED 100VA CHAS MT |
3,702 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V | 20V | 5A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect | 102.40mm L x 58.50mm W | 67.70mm | 2500Vrms | 2.8 lbs (1.3 kg) |
|

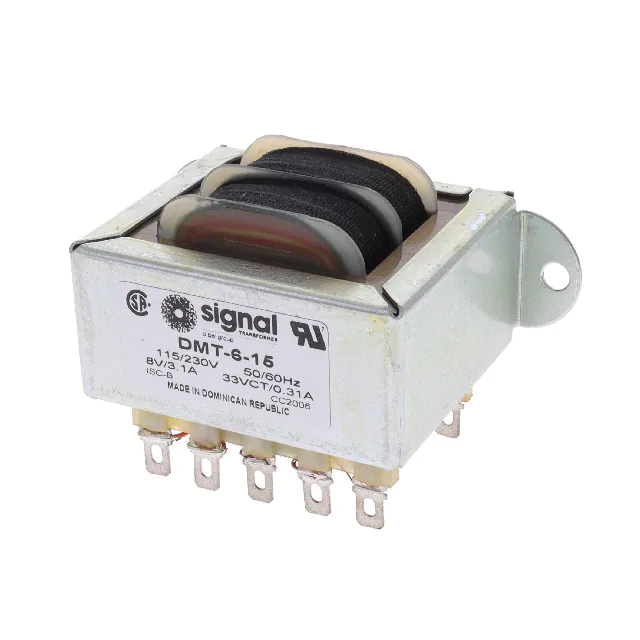

DMT-6-15PWR XFMR LAMINATED 6VA CHAS MT |
2,156 |
|
Datasheet | DMT | Bulk | Active | Laminated Core | 115V, 230V | 5V, 15V | 1.75A, 175mA | Dual | Dual | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 82.60mm L x 44.30mm W | 49.80mm | 2500Vrms | 1.1 lbs (499 g) |
|
DPC-34-700PWR XFMR LAMINATED 24VA TH |
3,661 |
|
Datasheet | DPC | Box | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.30mm L x 57.20mm W | 34.93mm | 1500Vrms | 0.75 lb (340.19 g) |
|
A41-43-28PWR XFMR LAMINATED 43VA CHAS MT |
1,403 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 3A, Series 1.5A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
A41-43-20PWR XFMR LAMINATED 43VA CHAS MT |
3,026 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
|
A41-43-16PWR XFMR LAMINATED 43VA CHAS MT |
2,215 |
|
Datasheet | All-4-One™ | Box | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 5.4A, Series 2.7A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms | 1.6 lbs (725.7 g) |
|
14A-56-20PWR XFMR LAMINATED 56VA TH |
2,759 |
|
Datasheet | One-4-All™ | Box | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.50mm | 4000Vrms | 1.7 lbs (771.1 g) |
|
|
DP-241-7-16PWR XFMR LAMINATED 56VA CHAS MT |
4,873 |
|
Datasheet | Two-4-One™ | Box | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms | 1.7 lbs (771.1 g) |
