Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

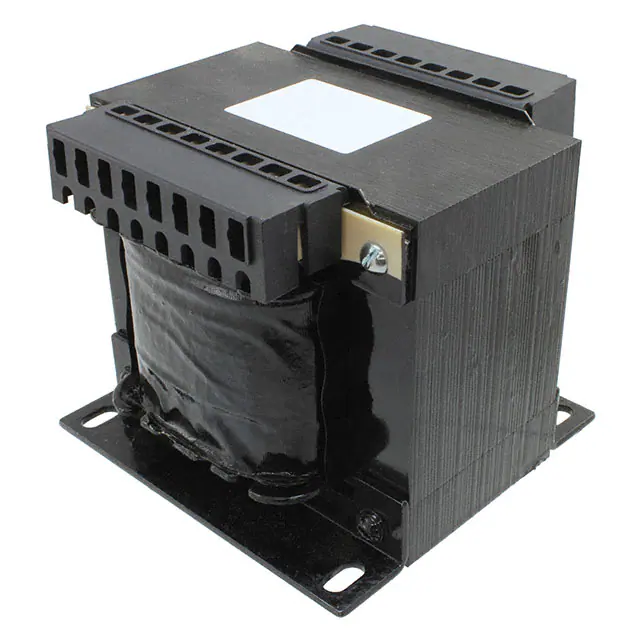

MPI-900-20PWR XFMR LAMINATED 900VA CHAS MT |
2,213 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 10V, Series 20V | Parallel 90A, Series 45A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
|
|
MPI-900-28PWR XFMR LAMINATED 900VA CHAS MT |
4,307 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 14V, Series 28V | Parallel 64.2A, Series 32.1A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
|
|
MPI-900-40PWR XFMR LAMINATED 900VA CHAS MT |
1,897 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 20V, Series 40V | Parallel 45A, Series 22.5A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
|
80-12PWR XFMR LAMINATED 960VA CHAS MT |
4,369 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 24A, Series 12A | Single, Multiple Taps | Dual | Yes | 960VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 152.40mm W | 134.90mm | 1500Vrms | 29 lbs (13.2 kg) |
|

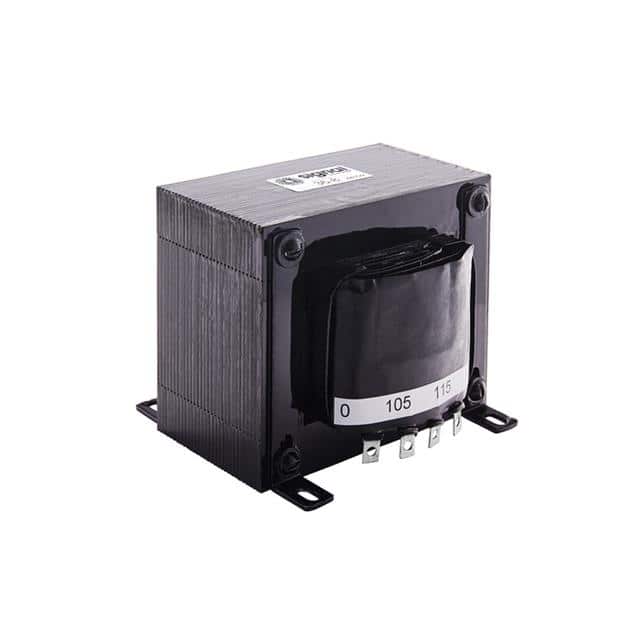

36-25PWR XFMR LAMINATED 900VA CHAS MT |
1,194 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 50A, Series 25A | Single, Multiple Taps | Dual | Yes | 900VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms | 27 lbs (12.2 kg) |
|
68-12PWR XFMR LAMINATED 816VA CHAS MT |
1,392 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 34V, Series 68V | Parallel 24A, Series 12A | Single, Multiple Taps | Dual | Yes | 816VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms | 27 lbs (12.2 kg) |
|
24-50PWR XFMR LAMINATED 1200VA CHAS |
1,893 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 12V, Series 24V | Parallel 100A, Series 50A | Single, Multiple Taps | Dual | Yes | 1200VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 158.80mm W | 134.90mm | 1500Vrms | 32 lbs (14.5 kg) |
|
SHE-500PWR XFMR LAMINATED 500VA CHAS MT |
4,212 |
|
Datasheet | SHE | Bulk | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 4.4A, Series 2.2A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Terminal Block | 137.20mm L x 127.00mm W | 120.70mm | 4000Vrms | 18 lbs (8.2 kg) |
|
10-100PWR XFMR LAMINATED 1000VA CHAS |
1,921 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 5V, Series 10V | Parallel 200A, Series 100A | Single, Multiple Taps | Single, Multiple Taps | Yes | 1000VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 184.20mm W | 134.90mm | 1500Vrms | 35 lbs (15.9 kg) |
|
16-50PWR XFMR LAMINATED 800VA CHAS MT |
1,918 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 8V, Series 16V | Parallel 100A, Series 50A | Single, Multiple Taps | Single, Multiple Taps | Yes | 800VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 146.10mm W | 134.90mm | 1500Vrms | 27 lbs (12.2 kg) |
