Power Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Primary | Voltage - Secondary (Full Load) | Current - Output (Max) | Primary Winding(s) | Secondary Winding(s) | Center Tap | Power - Max | Mounting Type | Termination Style | Size / Dimension | Height - Seated (Max) | Voltage - Isolation | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

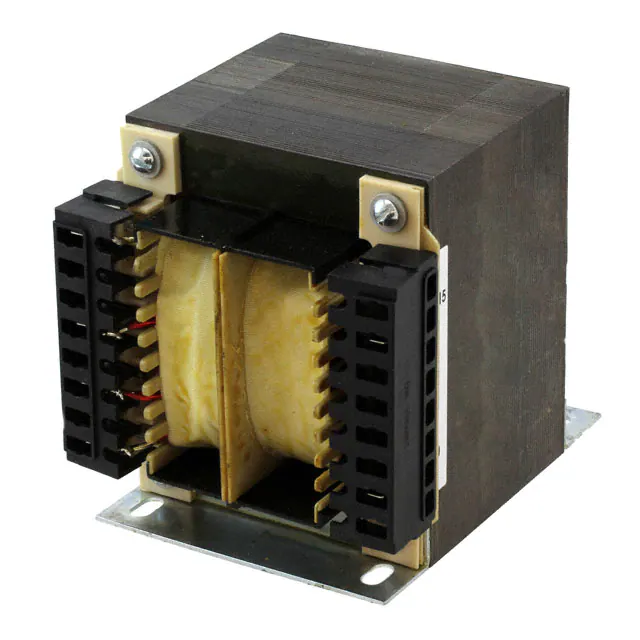

M4L-1-10PWR XFMR LAMINATED 1000VA CHAS |
4,330 |
|
Datasheet | M4L | Bulk | Active | Laminated Core | 125V, 115V, 105V | 115V | 8.7A | Single, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 124.20mm L x 144.78mm W | 133.40mm | 4000Vrms | 22 lbs (10 kg) |
|
|
M4L-2-10PWR XFMR LAMINATED 1000VA CHAS |
4,368 |
|
Datasheet | M4L | Bulk | Active | Laminated Core | 250V, 230V, 210V | 115V | 8.7A | Single, Multiple Taps | Single | No | 1000VA | Chassis Mount | Terminal Block | 124.20mm L x 144.78mm W | 133.40mm | 4000Vrms | 22 lbs (10 kg) |
|
80-8PWR XFMR LAMINATED 640VA CHAS MT |
1,143 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 40V, Series 80V | Parallel 16A, Series 8A | Single, Multiple Taps | Dual | Yes | 640VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 133.40mm W | 134.90mm | 1500Vrms | 21 lbs (9.5 kg) |
|
|
BH-0350BFBINDUSTRIAL CONTROL TRANSFORMER |
4,865 |
|
Datasheet | BH | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 120V, 115V, 110V | - | Dual | Single | No | 350VA | Chassis Mount | Terminal Block | 119.06mm L x 114.30mm W | 114.30mm | - | - |
|

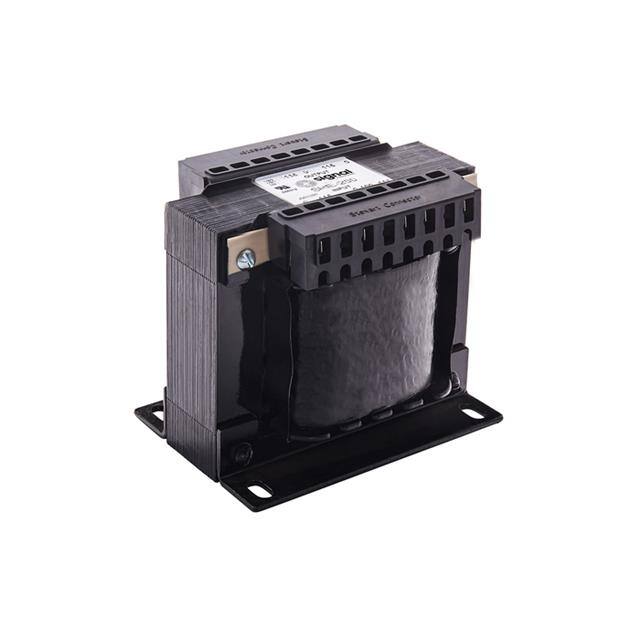

SHE-250PWR XFMR LAMINATED 250VA CHAS MT |
3,678 |
|
Datasheet | SHE | Bulk | Active | Laminated Core | 100V, 115V, 215V, 230V | Parallel 115V, Series 230V | Parallel 2.2A, Series 1.1A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Terminal Block | 137.20mm L x 101.60mm W | 120.70mm | 4000Vrms | 12 lbs (5.4 kg) |
|
|
BH-0750BINDUSTRIAL CONTROL TRANSFORMER |
2,162 |
|
Datasheet | BH | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 120V, 115V, 110V | - | Dual | Single | No | 750VA | Chassis Mount | Terminal Block | 168.28mm L x 133.35mm W | 128.59mm | - | - |
|
36-20PWR XFMR LAMINATED 720VA CHAS MT |
4,565 |
|
Datasheet | - | Box | Active | Laminated Core | 105V, 115V, 125V | Parallel 18V, Series 36V | Parallel 40A, Series 20A | Single, Multiple Taps | Dual | Yes | 720VA | Chassis Mount | Solder, Quick Connect | 162.00mm L x 136.50mm W | 134.90mm | 1500Vrms | 23 lbs (10.4 kg) |
|
|
BH-0750BFBINDUSTRIAL CONTROL TRANSFORMER |
2,950 |
|
Datasheet | BH | Bulk | Active | - | 220V, 230V, 240V, 440V, 460V, 480V | 120V, 115V, 110V | - | Dual | Single | No | 750VA | Chassis Mount | Terminal Block | 168.28mm L x 133.35mm W | 128.59mm | - | - |
|
MPI-900-10PWR XFMR LAMINATED 900VA CHAS MT |
3,461 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 5V, Series 10V | Parallel 180A, Series 90A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
|
|
MPI-900-12PWR XFMR LAMINATED 900VA CHAS MT |
1,919 |
|
Datasheet | MPI | Bulk | Active | Laminated Core | 100V, 115V, 200V, 215V, 230V | Parallel 6V, Series 12V | Parallel 150A, Series 75A | Dual, Multiple Taps | Dual | No | 900VA | Chassis Mount | Terminal Block | 133.30mm L x 139.70mm W | 117.80mm | 4000Vrms | 19.8 lbs (9 kg) |
