DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SE03S4803ADC DC CONVERTER 3.3V 3W |
1,968 |
|
Datasheet | SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 700mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 76% | - | - | Surface Mount | - | - | - | - |
|

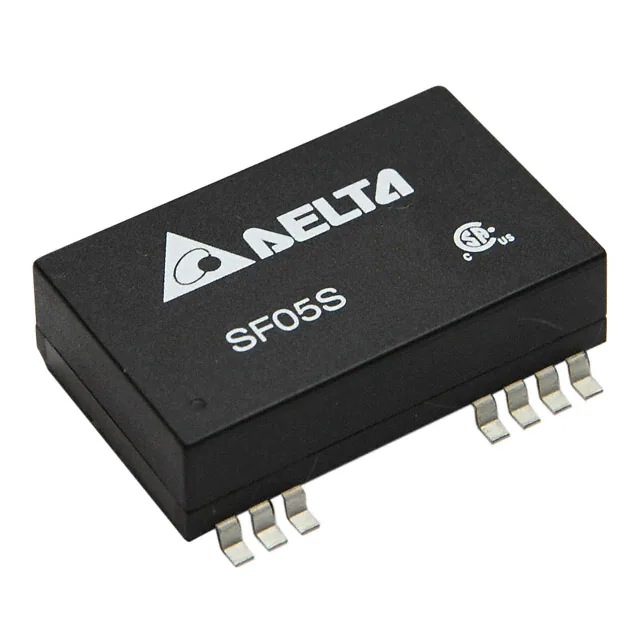

SF05S1203ADC DC CONVERTER 3.3V 5W |
4,895 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 3.3V | - | - | - | 1.2A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 76% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
SF05S1215ADC DC CONVERTER 15V 5W |
1,574 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 333mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 83% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
SF05S2403ADC DC CONVERTER 3.3V 5W |
4,185 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 3.3V | - | - | - | 1.2A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 78% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
SF05S2405ADC DC CONVERTER 5V 5W |
3,201 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 1A | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 82% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
SF05D1205ADC DC CONVERTER +/-5V 5W |
2,452 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 18V | 5V | -5V | - | - | 500mA, 500mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 80% | - | - | Surface Mount | - | Enable, Active High | - | - |
|
|
SF05D2412ADC DC CONVERTER +/-12V 5W |
1,658 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 208mA, 208mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 85% | - | - | Surface Mount | - | Enable, Active High | - | - |
|

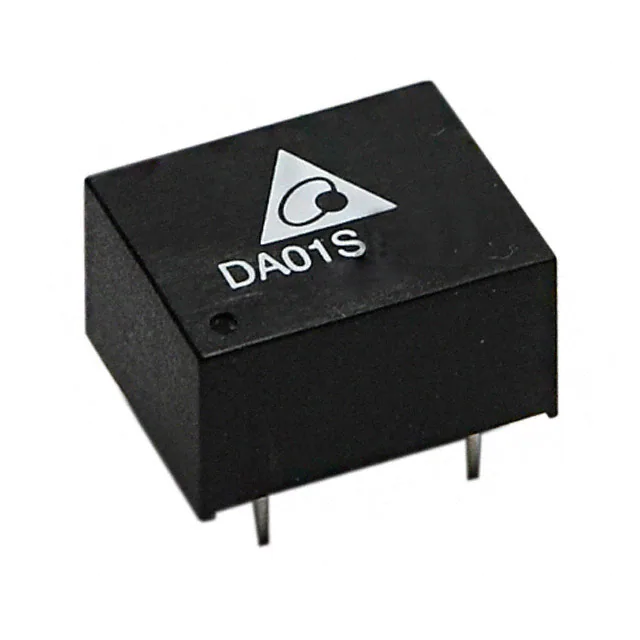

DA01S0505ADC DC CONVERTER 5V 1W |
3,935 |
|
Datasheet | DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 69% | - | - | Through Hole | - | - | - | - |
|
|
DA01S0509ADC DC CONVERTER 9V 1W |
1,702 |
|
Datasheet | DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 9V | - | - | - | 110mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 76% | - | - | Through Hole | - | - | - | - |
|
|
DA01S0512ADC DC CONVERTER 12V 1W |
3,704 |
|
Datasheet | DA01S (1W) | 7-DIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 12V | - | - | - | 84mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Through Hole | - | - | - | - |
