DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

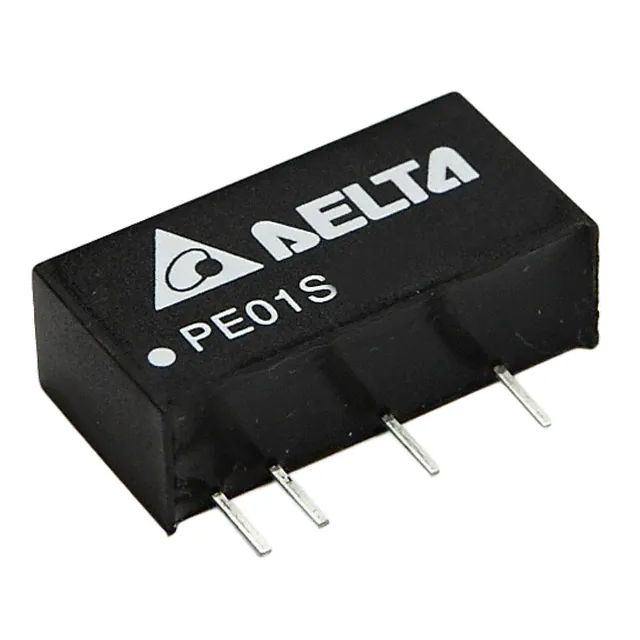

PE01S0505ADC DC CONVERTER 5V 1W |
2,301 |
|
Datasheet | PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|
|
PE01S1205ADC DC CONVERTER 5V 1W |
2,866 |
|
Datasheet | PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 5V | - | - | - | 200mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|
|
PE01S1215ADC DC CONVERTER 15V 1W |
2,426 |
|
Datasheet | PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 10.8V | 13.2V | 15V | - | - | - | 67mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | - | - | - |
|
|
PE01S2405ADC DC CONVERTER 5V 1W |
2,535 |
|
Datasheet | PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 84% | - | - | Through Hole | - | - | - | - |
|
|
PE01S2409ADC DC CONVERTER 9V 1W |
4,398 |
|
Datasheet | PE01S/D (1W) | 6-SIP Module, 4 Leads | Tube | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 110mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 86.5% | - | - | Through Hole | - | - | - | - |
|
PH02D2412ADC DC CONVERTER +/-12V 2W |
1,383 |
|
Datasheet | PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 9V | 36V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
PH02D4805ADC DC CONVERTER +/-5V 2W |
4,722 |
|
Datasheet | PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 70% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
PH02D4812ADC DC CONVERTER +/-12V 2W |
2,463 |
|
Datasheet | PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 12V | -12V | - | - | 83mA, 83mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 76% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
PH02D4815ADC DC CONVERTER +/-15V 2W |
1,147 |
|
Datasheet | PH02S/D (2W) | 9-SIP Module, 7 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 67mA, 67mA | 2 W | 1.5 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 76% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
PI01D0505ADC DC CONVERTER +/-5V 1W |
1,346 |
|
Datasheet | PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - |
