DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

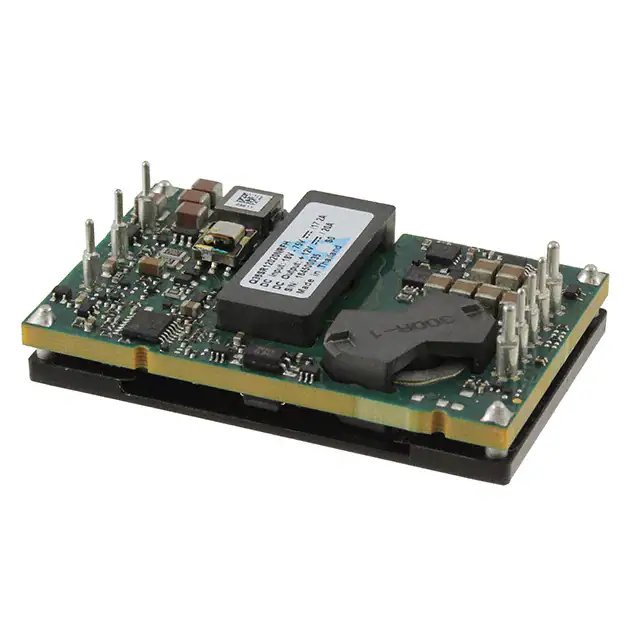

Q36SR12020NRFHDC DC CONVERTER 12V 240W |
292 |
|
Datasheet | Delphi Q36SR (240W) | Quarter Brick | Tray | Active | Isolated Module | 1 | 18V | 75V | 12V | - | - | - | 20A | 240 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C (With Derating) | 93.5% | - | - | Through Hole | Quarter Brick | - | - | - |
|

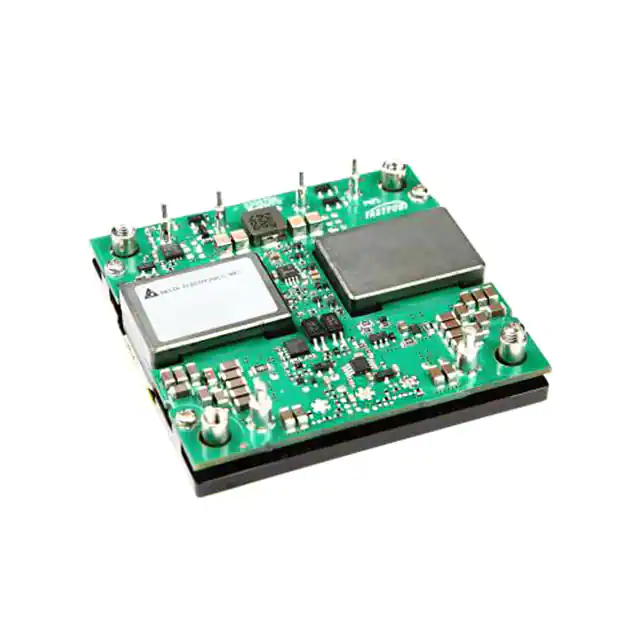

H36SA54003NNFCDC DC CONVERTER 54V 162W |
236 |
|
Datasheet | Delphi H36SA (162W) | 9-DIP Module, 1/2 Brick | Tray | Not For New Designs | Isolated Module | 1 | 18V | 75V | 54V | - | - | - | 3A | 162 W | 2.282 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 93.5% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
H80SV24008PRFSDC DC CONVERTER 24V 204W |
3,923 |
|
Datasheet | H80SV (200W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.8V | 137.5V | 24V | - | - | - | 8.5A | 204 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active High | - | - |
|
H60SB0A050NRDCDC DC CONVERTER 0-60V |
431 |
|
Datasheet | Delphi H60SB | Half Brick | Tray | Active | Non-Isolated PoL Module | 1 | 9V | 60V | 0 ~ 60V | - | - | - | 50A | - | - | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 98% | - | - | Through Hole | Half Brick | - | - | - |
|
PM05S065ADC DC CONVERTER 6.5V 3W |
444 |
|
Datasheet | PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 8V | 32V | 6.5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 95% | - | - | Through Hole | - | - | - | - |
|
|
PM05S033ADC DC CONVERTER 3.3V 2W |
1,810 |
|
Datasheet | PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 4.75V | 32V | 3.3V | - | - | - | 500mA | 2 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 91% | - | - | Through Hole | - | - | - | - |
|
SH01S2412ADC DC CONVERTER 12V 1W |
2,033 |
|
Datasheet | SH01S/D (1W) | 8-SMD Module, 5 Leads | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 84mA | 1 W | 1.5 kV | Medical | SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | - | - | - | - |
|
PI01S0505ADC DC CONVERTER 5V 1W |
1,542 |
|
Datasheet | PI01S/D (1W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 5V | - | - | - | 200mA | 1 W | 6 kV | Medical | SCP | -25°C ~ 85°C | 66% | - | - | Through Hole | - | - | - | - |
|
|
PM05S050ADC DC CONVERTER 5V 3W |
468 |
|
Datasheet | PM05S | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 6.5V | 32V | 5V | - | - | - | 500mA | 3 W | - | ITE (Commercial) | OCP, OTP, SCP | -40°C ~ 90°C | 94% | - | - | Through Hole | - | - | - | - |
|
PG02S1205ADC DC CONVERTER 5V 2W |
173 |
|
Datasheet | PG02S (2W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 9V | 18V | 5V | - | - | - | 400mA | 2 W | 1 kV | Medical | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 77% | - | - | Through Hole | - | Enable, Active Low | - | - |
