DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S24SE05004PDFADC DC CONVERTER 5V 20W |
650 |
|
Datasheet | S24SE (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
S24SE12002PDFADC DC CONVERTER 12V 20W |
214 |
|
Datasheet | S24SE (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
S24SE12002NDFADC DC CONVERTER 12V 20W |
124 |
|
Datasheet | S24SE (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 1.67A | 20 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active Low | - | - |
|

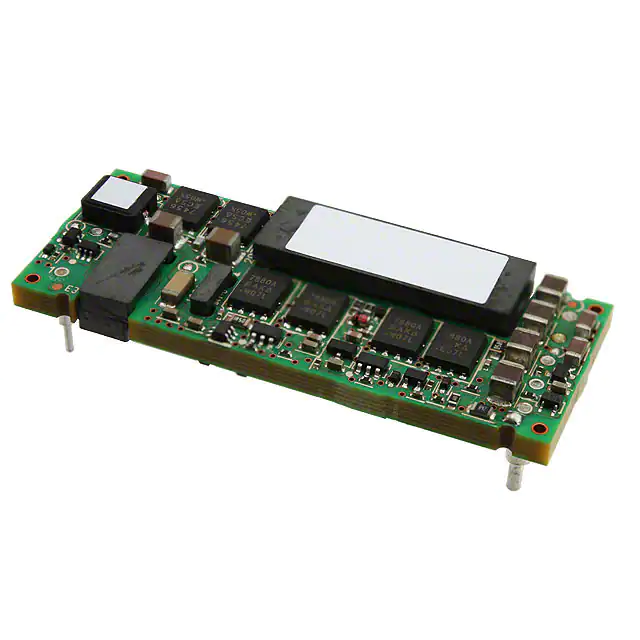

E48SH12010NRFADC DC CONVERTER 12V 120W |
344 |
|
Datasheet | Delphi E48SH (120W) | 8-DIP Module, 1/8 Brick | Tray | Not For New Designs | Isolated Module | 1 | 36V | 75V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 123°C | 93.1% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
S24SE12003NDFADC DC CONVERTER 12V 30W |
308 |
|
Datasheet | S24SE (30W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 2.5A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
|
S24DE15001NDFADC DC CONVERTER +/-15V 30W |
129 |
|
Datasheet | S24DE (30W) | 6-DIP Module | Tube | Active | Isolated Module | 2 | 9V | 36V | 15V | -15V | - | - | 1A, 1A | 30 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 88% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
S24SP12004PDFADC DC CONVERTER 12V 40W |
753 |
|
Datasheet | S24SP (40W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 3.5A | 40 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C | 92.8% | - | - | Through Hole | - | Enable, Active High | - | - |
|
|
S24SP12005PDFADC DC CONVERTER 12V 60W |
268 |
|
Datasheet | S24SP (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 12V | - | - | - | 5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP | -40°C ~ 85°C | 92.8% | - | - | Through Hole | - | Enable, Active High | - | - |
|
E48SC32009NRDHDC DC CONVERTER 32V 301W |
384 |
|
Datasheet | Delphi E48SC (300W) | Eighth Brick | Tray | Active | Isolated Module, Digital | 1 | 36V | 72V | 32V | - | - | - | 9.4A | 301 W | 2.25 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, UVLO | -40°C ~ 85°C | 95% | - | - | Through Hole | Eighth Brick | - | - | - |
|
|
S24SP24003PDFHDC DC CONVERTER 24V 60W |
403 |
|
Datasheet | S24SP (60W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 24V | - | - | - | 2.5A | 60 W | 1.5 kV | ITE (Commercial) | Remote On/Off, OCP, OTP, OVP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 93% | - | - | Through Hole | - | - | - | - |
