DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Number of Outputs | Voltage - Input (Min) | Voltage - Input (Max) | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Features | Operating Temperature | Efficiency | Grade | Qualification | Mounting Type | Supplier Device Package | Control Features | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S24SE150R9NDFADC DC CONVERTER 15V 15W |
4,494 |
|
Datasheet | S24SE (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 36V | 15V | - | - | - | 1A | 15 W | 1.6 kV | ITE (Commercial) | Remote On/Off, UVLO | -40°C ~ 85°C | 87.5% | - | - | Through Hole | - | Enable, Active Low | - | - |
|
V48SC06511NRFADC DC CONVERTER |
1,276 |
|
Datasheet | - | Sixteenth Brick | Box | Active | Isolated Module | 1 | 36V | 75V | - | - | - | - | 11A | 70 W | 1500 V | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -40°C ~ 85°C | 91% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | CSA, EN, IEC, UL | 60950-1; 62368-1 |
|
|
H80SV24004PRFSDC DC CONVERTER 24V 101W |
1,581 |
|
Datasheet | H80SV (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.8V | 137.5V | 24V | - | - | - | 4.2A | 101 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | Half Brick | Enable, Active High | - | - |
|
|
H80SV48002PRFSDC DC CONVERTER 48V 101W |
1,430 |
|
Datasheet | H80SV (100W) | Half Brick | Tray | Active | Isolated Module | 1 | 16.8V | 137.5V | 48V | - | - | - | 2.1A | 101 W | 4.242 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 90% | - | - | Through Hole | Half Brick | Enable, Active High | - | - |
|
|
V48SD05024NNFHDC DC CONVERTER 5V 120W |
3,519 |
|
Datasheet | V48SD (100W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 60V | 5V | - | - | - | 24A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, PMBus™, Remote On/Off | -40°C ~ 85°C | 92.5% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | - | 62368-1 |
|
|
V48SD12010NNFHDC DC CONVERTER 12V 120W |
3,009 |
|
Datasheet | V48SD (120W) | Sixteenth Brick | Tray | Active | Isolated Module | 1 | 36V | 60V | 12V | - | - | - | 10A | 120 W | 2.25 kV | ITE (Commercial) | Adjustable Output, Heat Sink, PMBus™, Remote On/Off | -40°C ~ 85°C | 93% | - | - | Through Hole | Sixteenth Brick | Enable, Active Low | - | 62368-1 |
|
PB01D0505ADC DC CONVERTER +/-5V 1W |
4,338 |
|
Datasheet | PB01S/D (1W) | 5-SIP Module | Tube | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 100mA, 100mA | 1 W | 1 kV | Medical | SCP | -40°C ~ 85°C | 72% | - | - | Through Hole | - | - | - | - |
|
SB01D2415ADC DC CONVERTER +/-15V 1W |
3,400 |
|
Datasheet | SB01S/D (2W) | 12-SMD Module, 10 Leads | Tube | Obsolete | Isolated Module | 2 | 21.6V | 26.4V | 15V | -15V | - | - | 34mA, 34mA | 1 W | 3 kV | Medical | SCP | -40°C ~ 85°C | 80% | - | - | Surface Mount | - | - | - | - |
|
|
SF05D2415ADC DC CONVERTER +/-15V 5W |
3,631 |
|
Datasheet | SF05S/D (5W) | 24-SMD Module, 12 Leads | Tube | Obsolete | Isolated Module | 2 | 18V | 36V | 15V | -15V | - | - | 167mA, 167mA | 5 W | 1.5 kV | Medical | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 71°C | 85% | - | - | Surface Mount | - | Enable, Active High | - | - |
|

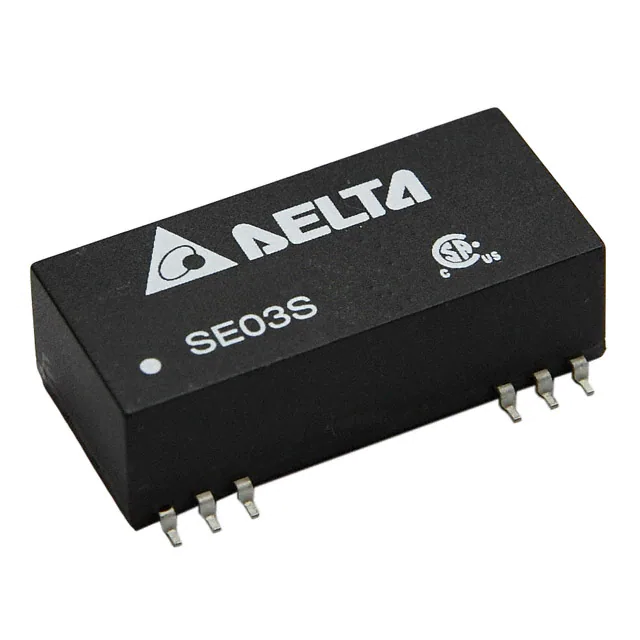

SE03D1215ADC DC CONVERTER +/-15V 3W |
4,425 |
|
Datasheet | SE03S/D (3W) | 24-SMD Module, 12 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | Medical | SCP, UVLO | -40°C ~ 71°C | 81% | - | - | Surface Mount | - | - | - | - |
